Quick Start

Mount the matrix

Connect ground (optional)

Connect sources

Connect displays

Connect audio (optional)

Connect control (optional)

Apply power

Mount the Matrix

At least two inches of free air space is required on both sides of the INT-44HDX for proper side ventilation. Avoid

mounting the INT-44HDX near a power amplifier or any other source of significant heat.

Shelf Mounting Instructions

Attach the supplied shelf feet to the bottom of the INT-44HDX matrix.

Rack Mounting Instructions

Attach the supplied rack ears to the sides of the INT-44HDX matrix with the supplied screws. The matrix requires

one rack unit (1 RU) of space. It is recommended that you leave an empty rack space above and below the

INT-44HDX for additional cooling.

Connect Ground

A ground screw is located on the bottom right rear of the matrix to help eliminate static shock during installation

of the matrix. Connect a wire from the matrix to an earth ground.

HDBaseT Cabling Requirements

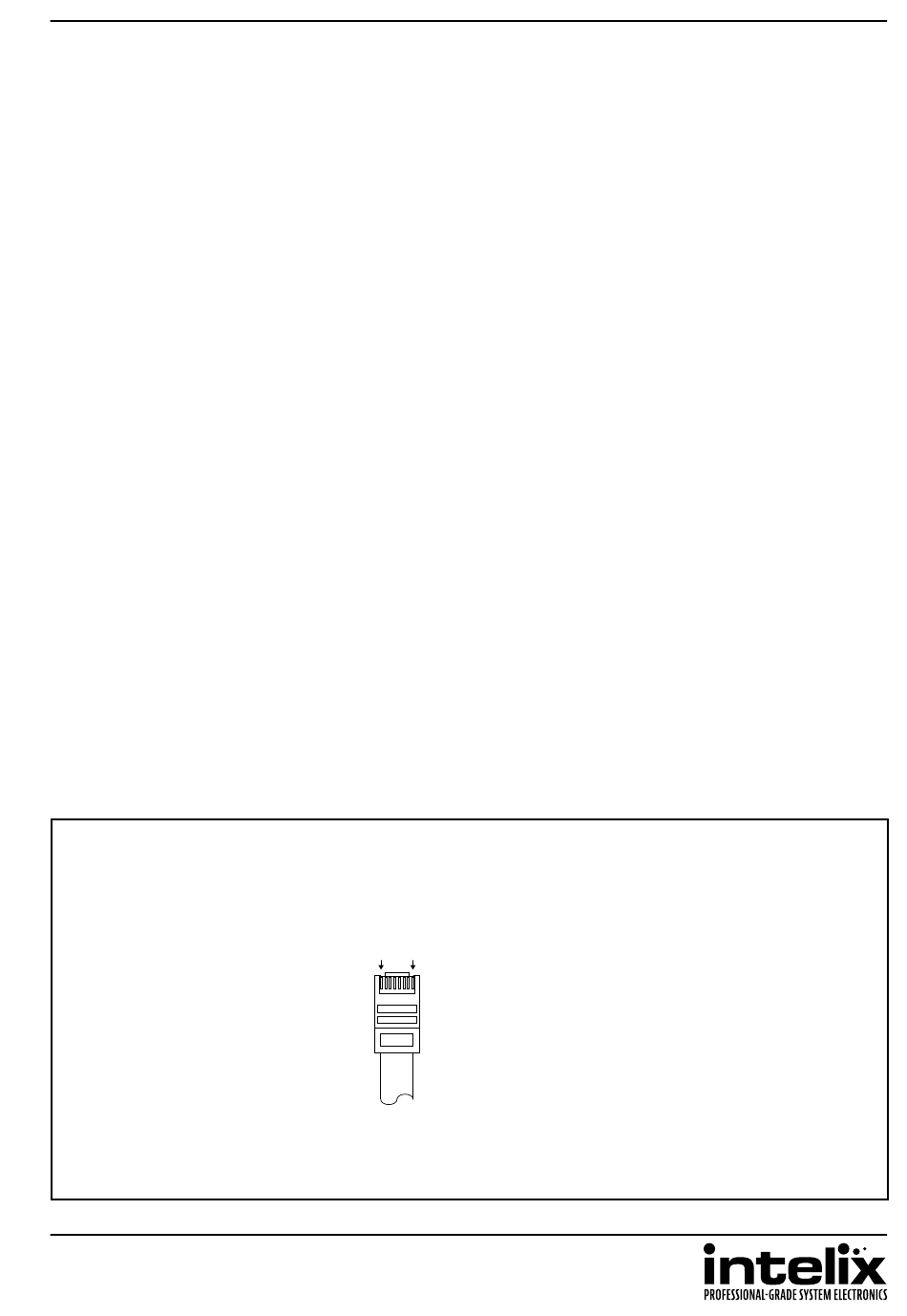

For all HDBaseT cabling, the EIA/TIA-568B crimp pattern must be used on Category 5e or greater cable. In

areas with large amounts of electromagnetic (EM) or radio frequency (RF) interference, a shielded variety of

Category 5e or greater cable is recommended with shielded connectors on both ends of the selected cable.

The HDBaseT ports provide 15 watts of Power over Ethernet to 48 volt based HDBaseT devices, which eliminates

the need for a power supply with a compatible HDBaseT device. All Intelix branded HDBaseT receivers that

accept remote power are compatible with the INT-44HDX.
