Front Panel Features

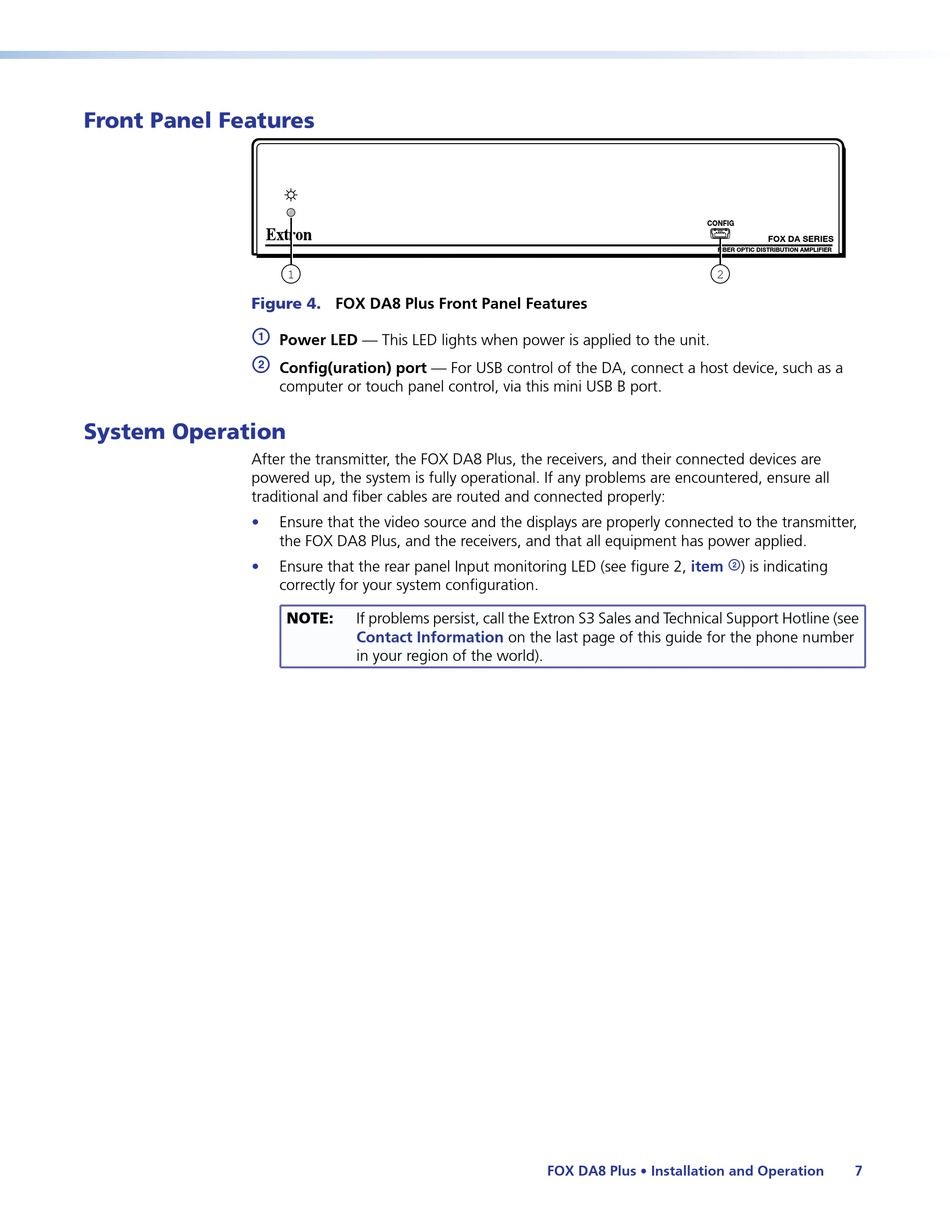

Figure 4.
a
b

System Operation

After the transmitter, the FOX DA8 Plus, the receivers, and their connected devices are
powered up, the system is fully operational. If any problems are encountered, ensure all
traditional and fiber cables are routed and connected properly:
•
•
1
FOX DA8 Plus Front Panel Features
Power LED — This LED lights when power is applied to the unit.
Config(uration) port — For USB control of the DA, connect a host device, such as a
computer or touch panel control, via this mini USB B port.
Ensure that the video source and the displays are properly connected to the transmitter,
the FOX DA8 Plus, and the receivers, and that all equipment has power applied.
Ensure that the rear panel Input monitoring LED (see figure 2,
correctly for your system configuration.
NOTE:
If problems persist, call the Extron S3 Sales and Technical Support Hotline (see
Contact Information
in your region of the world).
on the last page of this guide for the phone number
FOX DA8 Plus • Installation and Operation
