Starting the program

Start the Extron FOX Extenders Control Program as follows:
1.
Connect a computer that runs the Windows operating system to either the RS-232 port
or the Configuration port of the DA (see
page 4).
2.
Click Start > Programs
>
Program FOX Extenders

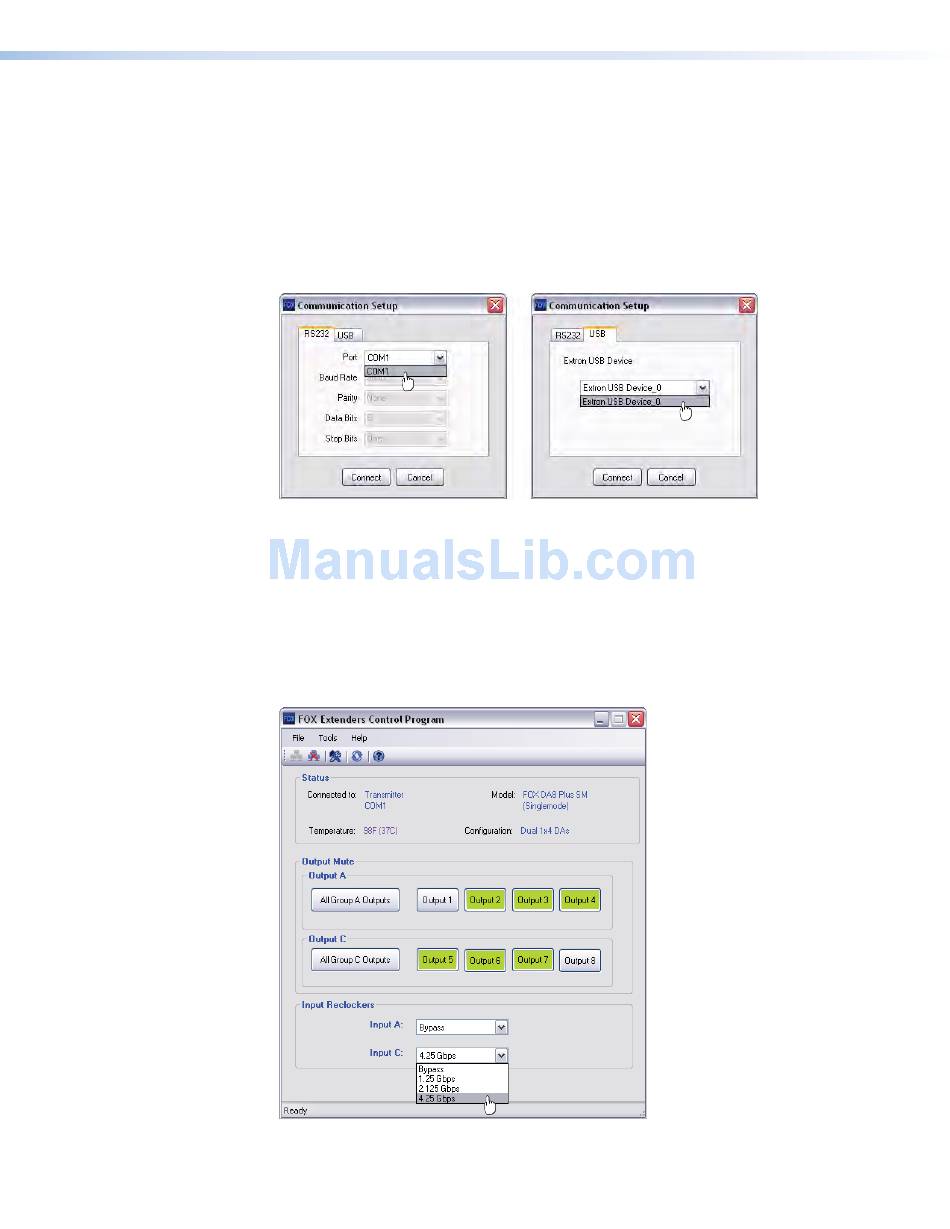

The Communication Setup window appears (see figure 9, below).
Figure 9.
Communication Setup Window
3.
If necessary, select the tab,
connection.
4. Depending on the tab that is selected, choose either:
• — The Com port to which your DA is connected
RS-232 tab
• —
USB tab Extron USB Device_0
5.
Click . The FOX Extenders Control Program window appears (see figure 10,
Connect
below.
Figure 10. FOX Extenders Program Window
"Installation and
> Extron Electronics >
.
or , for the port you are using for the
RS-232 USB
FOX DA8 Plus • Remote Control
Operation," beginning on
FOX Extenders Control
14
