Appendix E: Pin Definition for GPS with Dead Reckoning Feature

Appendix E: Pin Definition for GPS with Dead Reckoning
Feature
Here are the connector and cable pin definition for VIOB-GPS-DR01.The refer order P/N is VTC1000-DK.

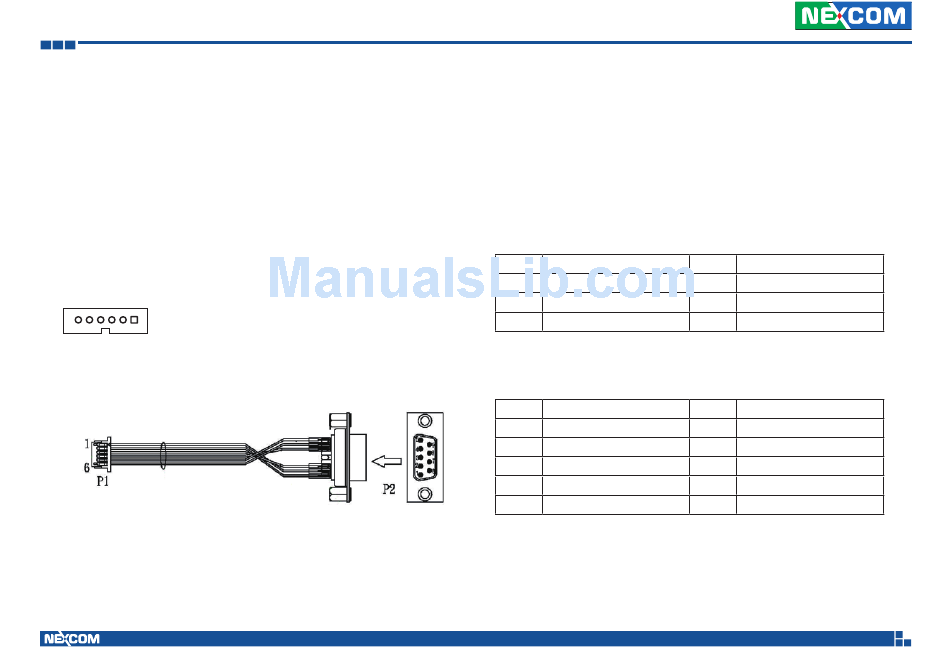

Connector on GPS module to Cable
A. Connector type: 1x6 6-pin header
B. Connector location: J1
1
6
C. GPS module to DB9 Cable (6P TO D-SUB-9M)
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
Connector pin definition of P1
Pin Definition
1 GND
2 DIRECTION
3 ODOMETER
Connector pin definition of P2
Pin Definition
1 1PPS
2 GPIO22
3 NC
4 ODOMETER
5 DIRECTION
68
Pin Definition
4 GPIO22
5 1PPS
6 GND
Pin Definition
6 GND
7 NC
8 NC
9 GND
VTC 6200 / VTC 6200-NI / VTC 6200-NI-DK User Manual
