Chapter 3: System Setup

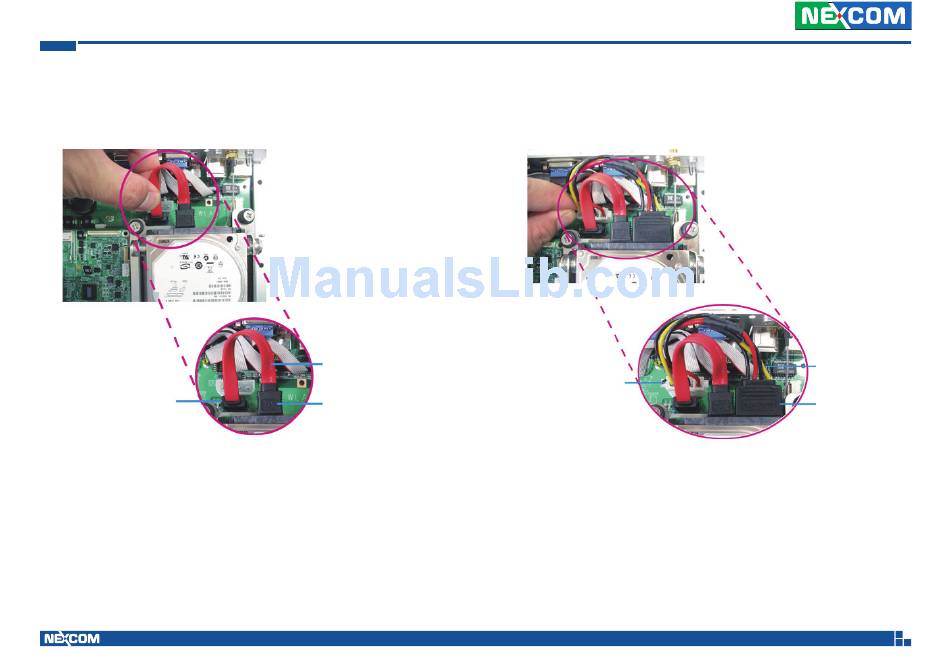

7. Connect one end of the SATA data cable to the SATA connector that is
on the board then connect the other end of the cable to the SATA con-
nector at the rear of the SATA drive.
Cable connected to
the SATA connector
on the board
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
8. Connect one end of the SATA power cable to the SATA power connec-
SATA data cable
Cable connected to the
SATA power connector
Cable connected
to the SATA drive
51
tor that is on the board then connect the other end of the cable to the
SATA power connector at the rear of the SATA drive.
on the board
SATA power cable
Cable connected
to the SATA drive
