Chapter 2: Jumpers and Connectors

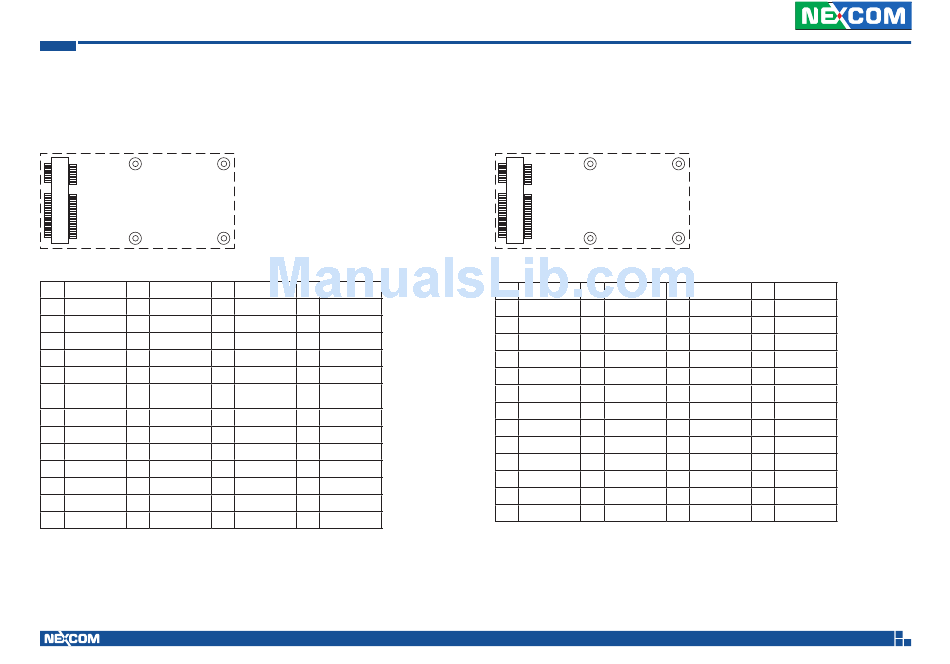

Mini-PCIe Slot (3.5G)

Connector location: CN15
1 2
51 52
Pin Definition Pin Definition Pin
1 MIC + 2 +V3.3S 27
3 MIC - 4 GND 29
5 SPK + 6 NC 31
7 GND 8 USIM PWR 33
9 GND 10 USIM DATA 35
11 VCC_ 12 USIM CLK 37
MSM26_DIG
13 NC 14 USIM RST 39
15 GND 16 NC 41
17 NC 18 GND 43
19 NC 20 W_DISABLE# 45
21 GND 22 NC 47
23 NC 24 NC 49
25 NC 26 GND 51
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
Definition Pin Definition
GND 28 NC
GND 30 NC
NC 32 NC
RESET 34 GND
GND 36 USB_D-
GND 38 USB_D+
+V3.3S 40 GND
+V3.3S 42 LED_WWAN#
GND 44 NC
NC 46 NC
NC 48 NC
NC 50 GND
NC 52 +V3.3S

Mini-PCIe Slot (WLAN)

Connector location: CN16
1 2
51 52
Pin Definition Pin Definition
1 WAKE# 2 +V3.3S
3 NC 4 GND
5 NC 6 +V1.5S
7 CLKREQ# 8 NC
9 GND 10 NC
11 REFCLK- 12 NC
13 REFCLK+ 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 DISABLE#
21 GND 22 PERST#
23 PERn0 24 +3.3S
25 PERp0 26 GND
33
Pin Definition Pin Definition
27 GND 28 +V1.5S
29 GND 30 SMB_CLK
31 PETn0 32 SMB_DATA
33 PETp0 34 GND
35 GND 36 USB_D-
37 NC 38 USB_D+
39 NC 40 GND
41 NC 42 LED_WWAN#
43 NC 44 LED_WLAN#
45 NC 46 LED_WPAN#
47 NC 48 +V1.5S
49 NC 50 GND
51 NC 52 +V3.3S
