P
OWERING UP
Move the wireless power switch (fig. 3) in upper position (towards MIC body) to activate
wireless transmission: a green LED lights up (blinking when battery is low!).
S
ETUP CONTROL

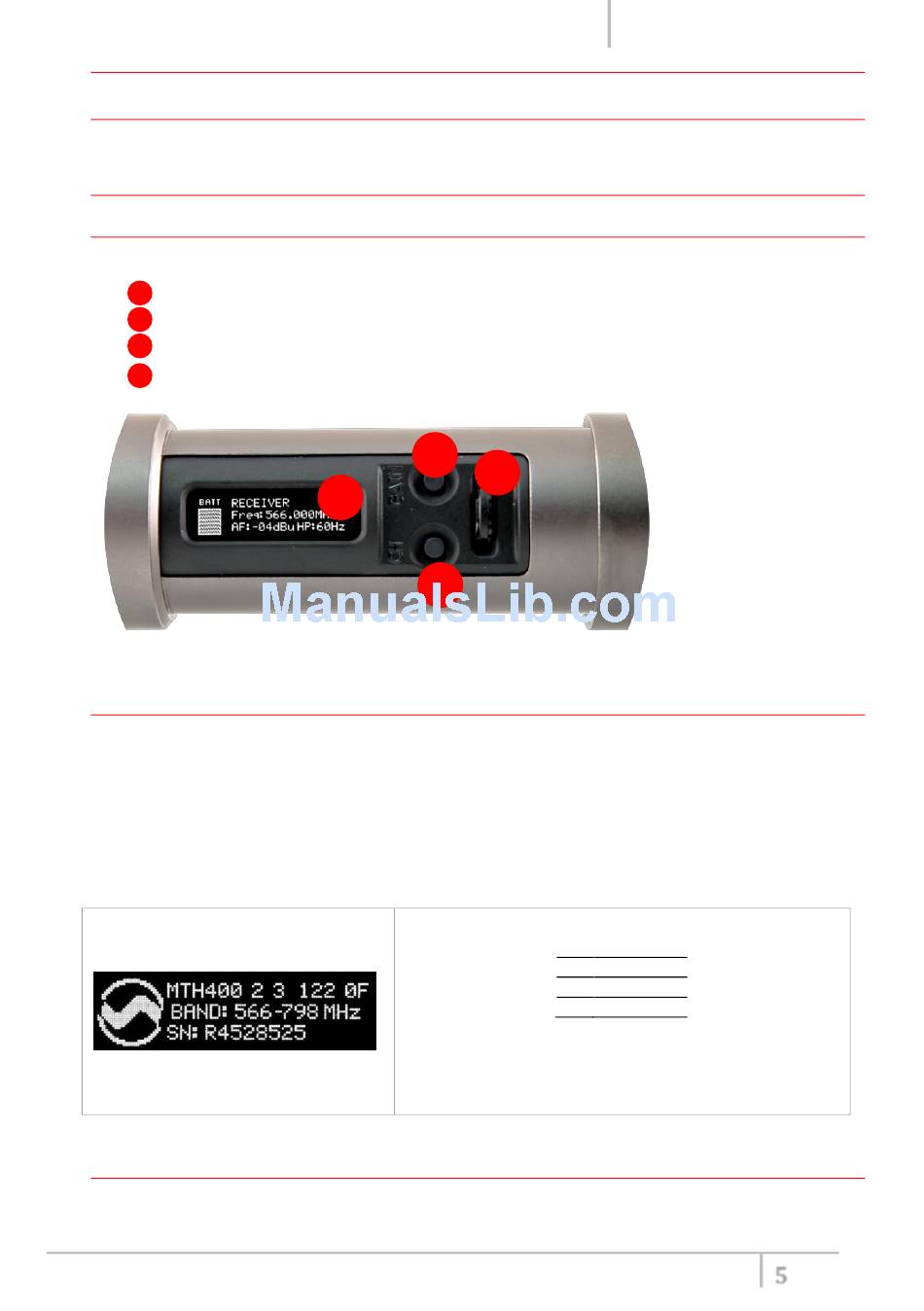

Open MIC Body to access the "display and controls" area (fig. 1):
A. Graphics Display (OLED)
B. Channel selection buttons (ch)
C. MIC gain setup buttons (gain)
D. 3 position selector (up / down / click)

OLED POWER UP (OLED IS IN OFF CONDITION)

Pushing down selector (click), the graphic display oled turns on.
At the beginning a <BOOT> menu is displayed, then <STATUS> menu enters automatically. In
order to keep the <BOOT> menu active, it is necessary to push and hold selector (click) for at
least 2 sec.
<BOOT> menu
In the <BOOT> menu it is possible to found information regarding the Hardware and Firmware.
OLED POWER DOWN (OLED IS IN ON CONDITION)
Display turns off automatically after 15 sec, unless in <IRDA> menu or in <AUDIO> menu (with
audio level < 5% from nominal).
C
D
A
B
- Model (MTH400)
- Band (ex. 2)
- Hardware revision (ex. 3)
- Firmware version (ex. 122 0F)
- Band in extended format (ex. 566-798)
- Serial number (ex. R4528525)
Rev.05 MTH400 User Manual
Fig. 4
1 470-640
2 566-798
3 510-698
