Using <up/down> selector all menus can be accessed in sequence, push <click> to enter edit
mode: (on the left side of the display appear "EDIT" and the selected parameter starts
blinking):
<up/down> to setup field
click
<click> again to confirm changes and exit.
If no button is pressed, the device exits the EDIT mode and returns the
up down
parameter as it was previously set.

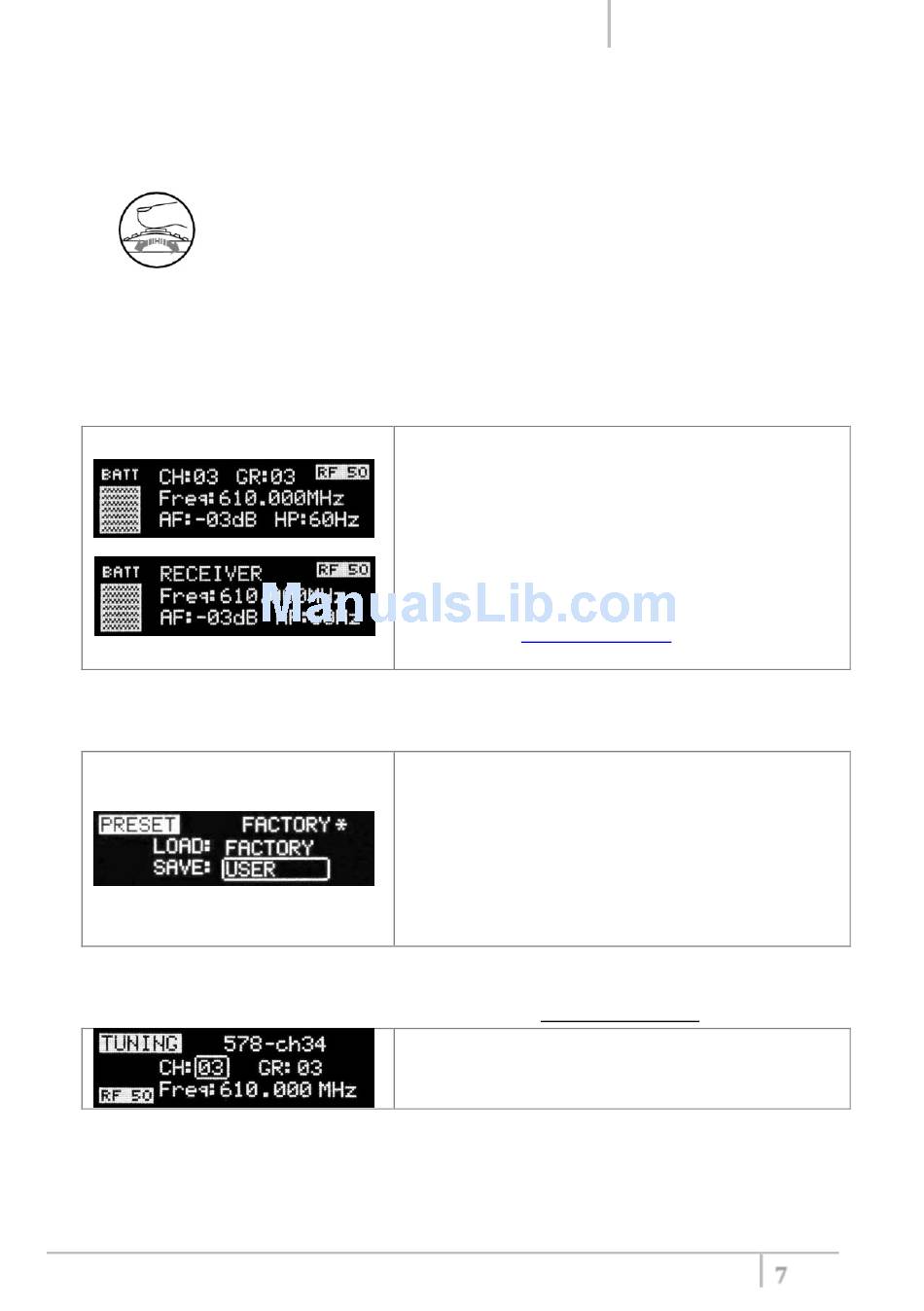

<STATUS> menu
This is the first menu displayed after power up.
<PRESET> menu
This menu can be entered by scrolling selector.
<TUNING> menu
This menu can be entered by scrolling selector or using quick channel setup button (ch).
Rev.05 MTH400 User Manual
Major info are displayed:
- Current channel/group (i.e. CH:03 GR:03) or
Receiver's name (i.e. RECEIVER) if the microphone
has already been synchronized with a receiver
- Current frequency (i.e. 610 MHz)
- Mic gain (i.e. -03dB) and high pass filter (i.e. 60Hz)
- If in the top right there is "RF10", "RF 50"or "RF 100",
the transmission is active respectively at 10, 50 or
100mW (see RF/BATTERY
- On left side, the battery bar is displayed
This menu allows to load a PRESET configuration,
modify the desired parameters (using the next
menus) and save the new configuration to the USER
configuration.
When the user changes some parameters from the
PRESET configuration (for less than frequency) a star
appears on the top-right corner until a save
command is executed.
In this menu current channel/group and frequencies
can be setup. Sync group is a quick self-settable
channel synchronized from receiver.
menu)
