Set Configuration - Lantronix Device Server UDS 10 User Manual

Configure

3.12 Set Configuration

Device configuration information can be saved in a file and later used to set the configuration
of one or several devices. To set the configuration of a device from a saved file, click the Set

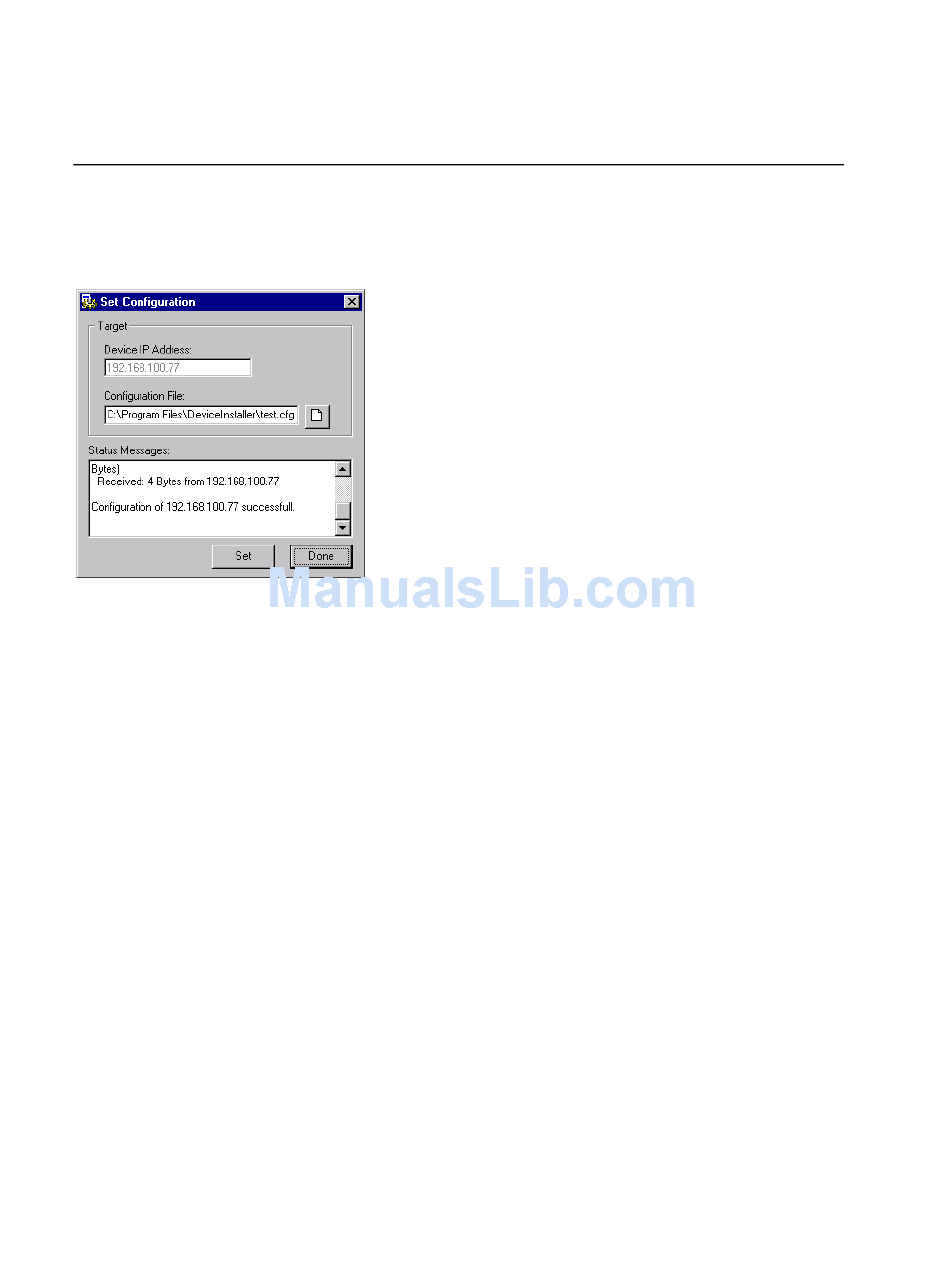

Configuration button on the Device Management window. The following dialog appears.
The Device IP Address is shown in the first field. This is the device selected in the
DeviceInstaller main window. In the Configuration File field, click the Open File button to
select a configuration file. Click the Set button and the file information is read and stored in
the device.
3-28 UDS-10 User Guide
