Getting Started

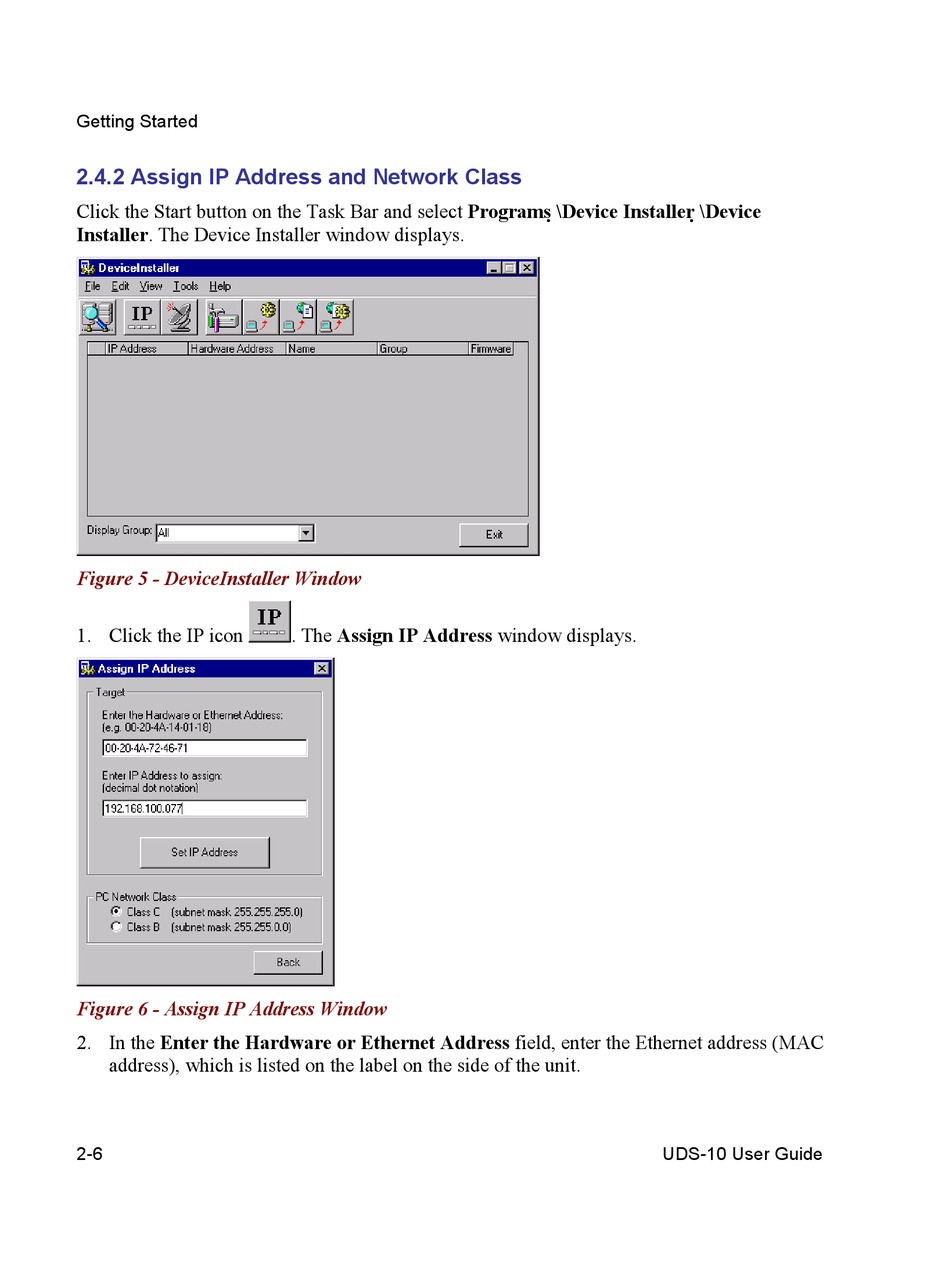

2.4.2 Assign IP Address and Network Class

Click the Start button on the Task Bar and select Programs   \ Device Installer   \ Device
Installer. The Device Installer window displays.

Figure 5 - DeviceInstaller Window

1. Click the IP icon . The Assign IP Address window displays.

Figure 6 - Assign IP Address Window

2. In the Enter the Hardware or Ethernet Address field, enter the Ethernet address (MAC
address), which is listed on the label on the side of the unit.
2-6 UDS-10 User Guide
