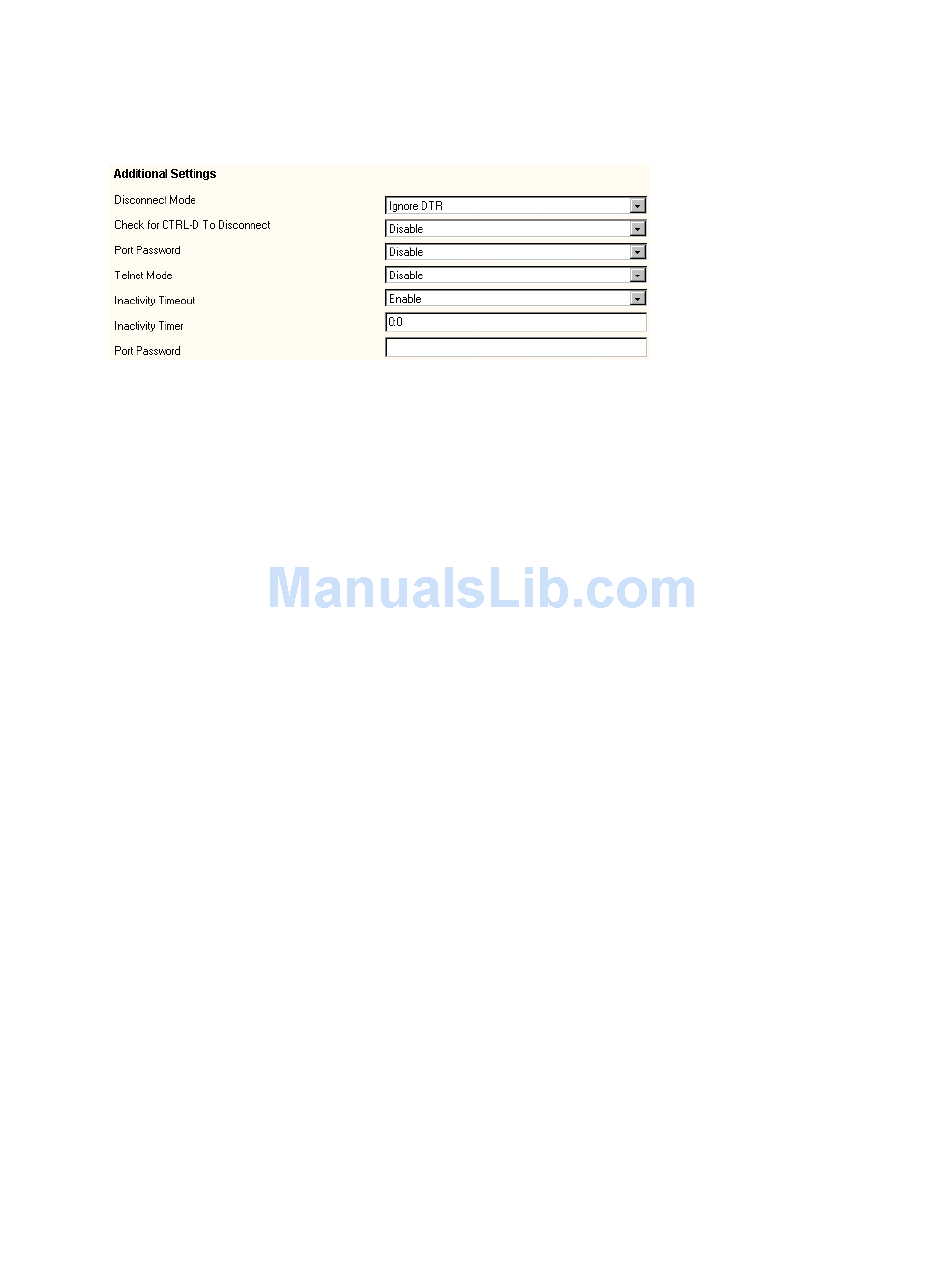

Configure
Disconnect Mode: with DTR Drop, Ignore DTR
Check for CTRL-D to Disconnect: Enable, Disable
Port Password: Enable, Disable
Telnet Mode: Enable, Disable
Inactivity Timeout: Enable, Disable
Inactivity Timer: (User Selectable)
Port Password: (User Selectable. Port Password must be enabled)

3.3.4 Technical Support

Several buttons provide direct links to Technical Support functions. You can use the Tech
Support button to link directly to the Lantronix Tech Support web page, the FTP-Site button
will link you to the web page for downloading new firmware, manuals, and other files. The
Contact Us button will link you to the Contact Information page.

3.3.5 Update Settings

Click the Update Settings button to send all changed settings to the device.
UDS-10 User Guide 3-9
