- Page 1 Lantronix UDS-10 Programming D A T E : 9 / 1 5 - 2 0 0 3 S O F T W A R E V E R S I O N A N D B U I L D...
- Page 2 Lantronix UDS-10 Programming CONTINENTAL INSTRUMENTS, LLC 345 BAYVIEW DRIVE AMITYVILLE, NY 11701 (631) 842-9400...
-
Page 3: Items Needed

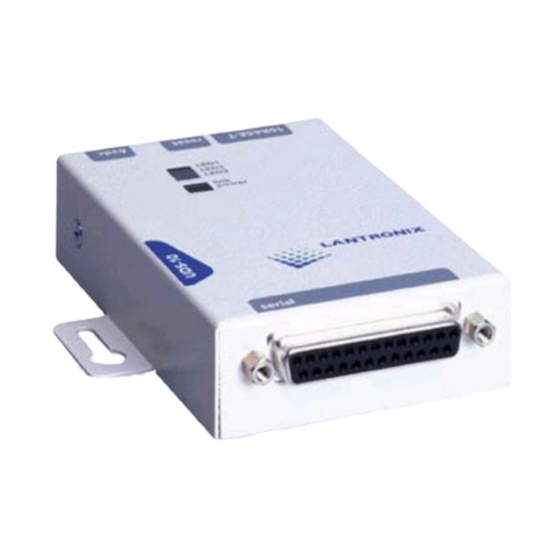

Continental CICE1995 (Lantronix UDS-10) Initial Setup Items needed: Description Lantronix UDS-10 with power supply. Db25 to Db9 COM Cable IP Address (supplied by End-User) Netmask (supplied by End-User) Gateway IP Address supplied by End-User (If necessary) PC running Windows and HyperTerminal... - Page 4 Press and Hold the “x” key down while attaching the power plug on the UDS-10. The following screen should appear: Figure 2 – The HyperTerminal window Step 4 - Press “Enter”. The following screen should appear: Figure 3 – The Lantronix programming screen...
- Page 5 Step 5 - Press “0” to enter the server configuration. Step 6 - Enter your IP Address Step 7 - If your network requires you to pass thru a router to access the UDS-10 then Press “Y” to Set Gateway IP Address. Otherwise, hit “Enter”.
- Page 6 Press the “Enter” key until we reach the main menu screen again Figure 4 – The Lantronix configuration screen Step 10 - Press “1” to enter Channel 1 configuration Figure 5 - The Channel 1 configuration screen...
- Page 7 Step 11 - If we are going to connect the UDS-10 using RS-232, the only change we need to make to this configuration is “Port No”. It needs to be changed to “3001”. If we are going to connect the UDS-10 using RS-422 we also need to change the “IF Mode”...
