WPS-750-DOM-IP Installation Manual

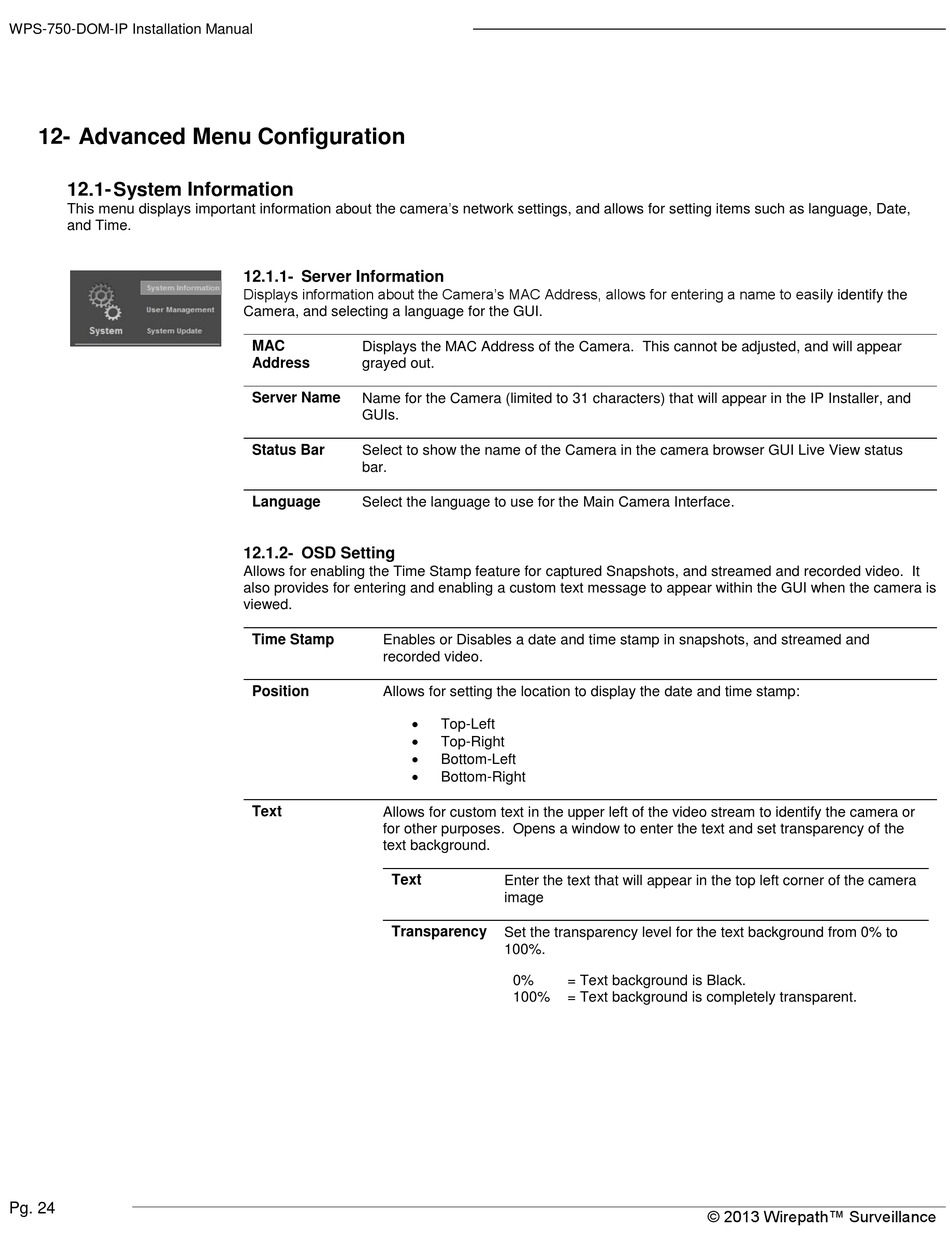

12- Advanced Menu Configuration

12.1- System Information

This menu displays important information about the camera's network settings, and allows for setting items such as language, Date,
and Time.
Pg. 24
12.1.1- Server Information
Displays information about the Camera's MAC Address, allows for entering a name to easily identify the
Camera, and selecting a language for the GUI.
MAC
Displays the MAC Address of the Camera. This cannot be adjusted, and will appear
Address
grayed out.
Server Name
Name for the Camera (limited to 31 characters) that will appear in the IP Installer, and
GUIs.
Status Bar Select to show the name of the Camera in the camera browser GUI Live View status
bar.
Language Select the language to use for the Main Camera Interface.
12.1.2- OSD Setting
Allows for enabling the Time Stamp feature for captured Snapshots, and streamed and recorded video. It
also provides for entering and enabling a custom text message to appear within the GUI when the camera is
viewed.
Time Stamp Enables or Disables a date and time stamp in snapshots, and streamed and
recorded video.
Position Allows for setting the location to display the date and time stamp:




Text
Allows for custom text in the upper left of the video stream to identify the camera or
for other purposes. Opens a window to enter the text and set transparency of the
text background.
Text
Transparency
Top-Left
Top-Right
Bottom-Left
Bottom-Right
Enter the text that will appear in the top left corner of the camera
Set the transparency level for the text background from 0% to
100%.
0% = Text background is Black.
100% = Text background is completely transparent.
© 2013 Wirepath™ Surveillance
