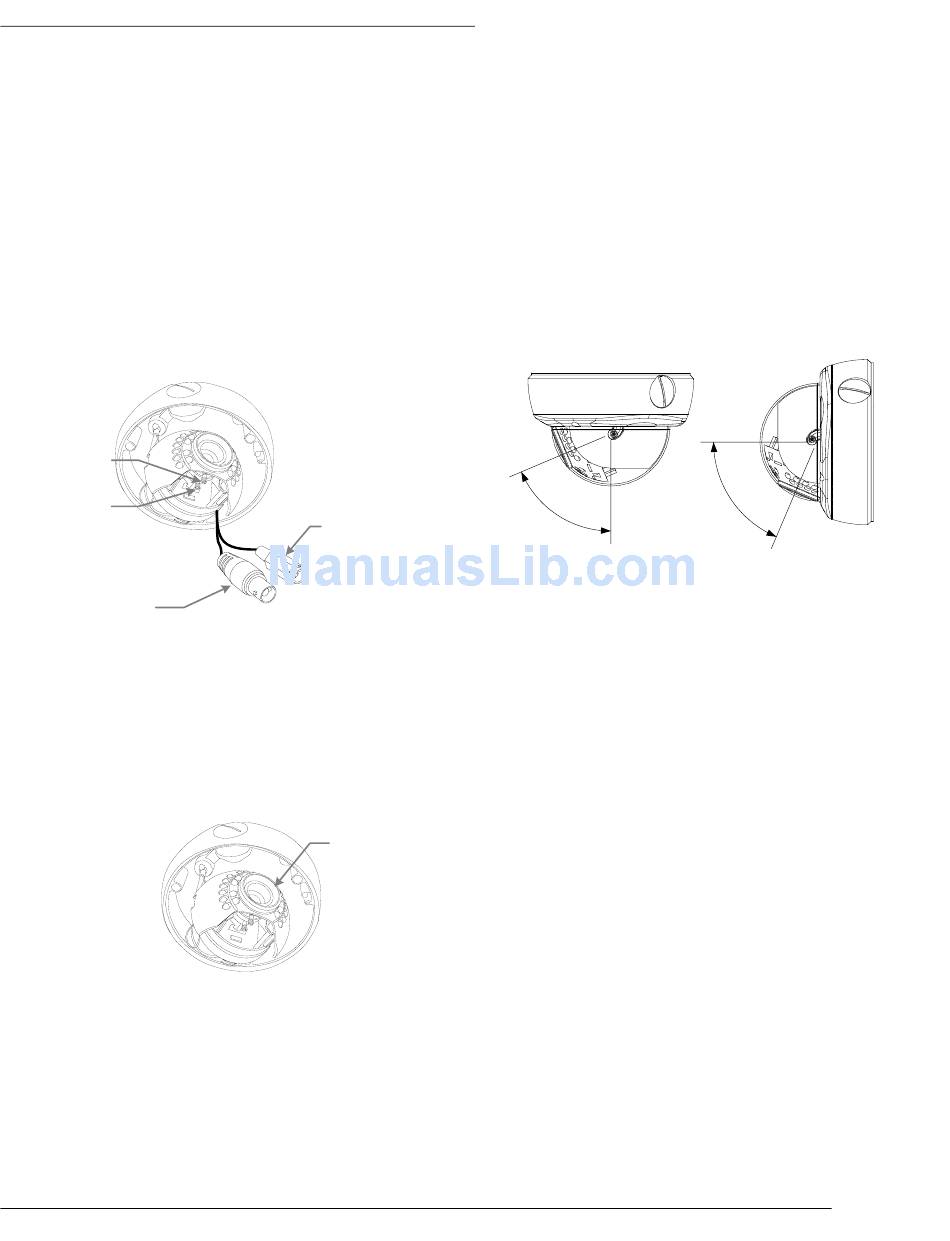

4. Fine-Tuning Camera Adjustments
The camera is supplied with a BNC Test Adapter that allows for viewing the output of the camera on a monitor or the WPS-
CCTV-TESTER (not included). Use this connection to adjust the camera directly from the installed location.
A. Connect the BNC Test Adapter Connection to a monitor or WPS-CCTV-TESTER video in.
B. Connect a Power Supply to the Secondary Power connection on the Camera if no other power connection is active.
C. Adjust the camera's 3-axis angle so the lens points in the desired direction.
Warning: The lens angle must not exceed 67˚ off the center axis to avoid IR reflection off of the dome resulting in
a halo effect in the camera image at night.
D. Loosen, but do not remove the zoom and focus set screws on the lens.
E. Rotate the Zoom and Focus levers to adjust until the desired setting is achieved.
F. Once the Zoom and Focus are adjusted, tighten the set screws to lock in the adjustment.
G. Disconnect the WPS-CCTV-TESTER or Monitor, and power supply from the Local Test Connections.
Adjust Zoom
Adjust Focus
BNC Test Adapter
Connection
5. Attach the Dome to the Camera
Recommendation: Before replacing the dome we recommend that a new Silica gel pack be inserted into the camera to
ensure that any moisture present will be removed.
A. Ensure that the lens gasket is properly fitted to the lens assembly.
B. Replace the dome cover to the dome base, and make sure the screws on the dome cover are tightened securely.
Warning: The dome must provide a tight fit around the rubber lens gasket to avoid IR reflection off of the
dome resulting in a halo effect in the camera image at night.
www.snapav.com Support: 866.838.5052
Maximum Camera Angle
Secondary Power In
(12V DC 1.5A)
Rubber Lens Gasket
WPS-750-DOM-IP Installation Manual
67.0°
67.0°
Pg. 17
