WPS-750-DOM-IP Installation Manual
2. Connect The Camera to the System
Recommended Cabling
Ethernet
DC Power
Audio In/Out
POE Consumption
A. Connect the Ethernet connection to a Cat5e/Cat6 cable using the provided RJ45 female/female adapter. The opposite
end of the Cat5e/Cat6 will be connected to the network switch.

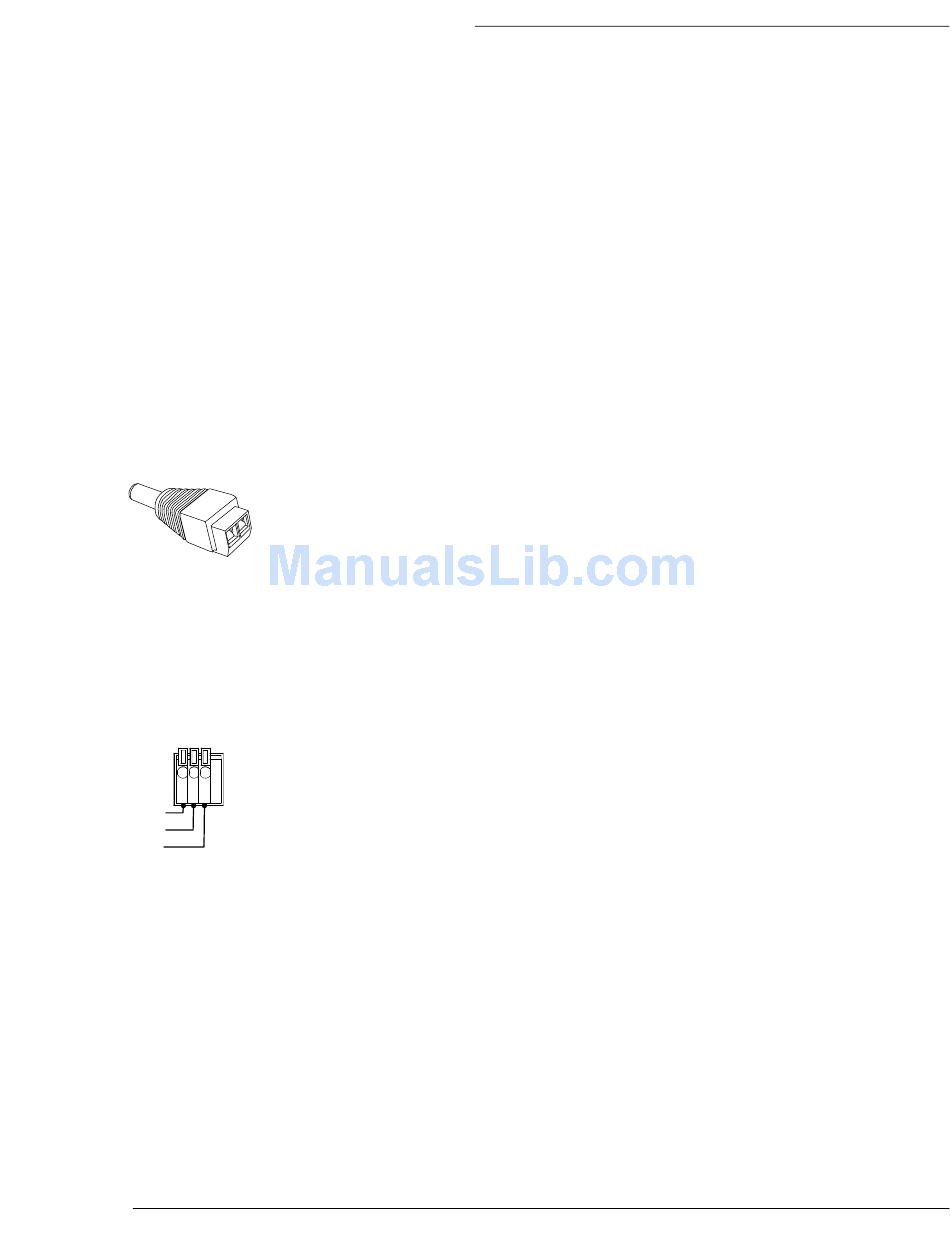

B. Connect the DC Power In to a 12V DC 1A power supply using the included WPS-ACC-PWR DC power adapter. If using
PoE to power the Camera, this step can be omitted.
Tip: The power supply can be located at the head end of system using a WPS-PS multiple output power supply and
prewiring a power wire.
C. Connect the Audio Out of a WPS-ACC-MIC to the Audio In jack of the Camera using an RCA Male to 3.5mm mono male
adapter. If no microphone will be used, this step can be omitted.
Note: The WPS-ACC-MIC requires power, if PoE is being used, a power supply for the microphone will need to be
installed.
D. Connect the Audio Out (Green) on the Camera pigtail to a 3.5mm mono male plug. This will be connected using 16/2 to
an amplifier for playback of the microphone. If no audio output is being used, this step can be omitted.
E. Connect an Alarm output or input to the connecting block. If no alarm functions are being used, this step can be
omitted.
DI
GND
DO
3. Mount the Camera
Tip: Before mounting the Camera, write down the Cameras MAC Address, Model Number, and location. These will come
in handy during setup or if troubleshooting is required.
Important Note: To avoid damaging the dome surface during installation, keep the dome surface away from walls
and other objects. Do not remove the protective film from the dome until after the camera is mounted and the
dome installed.
A. Mounting directly to a wall or eve:
A-1. Use the provided foam gasket as a template to pre-mark mounting hole locations.
A-2. Predrill holes in the marked locations.
A-3. Attach the foam gasket to the bottom of the camera base.
A-4. Connect the wires from the wall to the Camera's Pigtail and insert them into wall.
A-5. Position the Camera base over the marked holes from step 3-A-1.
A-6. Secure the Camera with the provided screws
Note: If a Wirepath™ mount is being used, follow the instructions provided with the mount as the steps
required differs from the steps above.
Pg. 16
Cat5e/Cat6
16/2 (if using a remote power source other than a PoE switch)
16/2
PoE IEEE 802.3af
4.8W(IR Off) / 6.72W(IR On)
DI +5V DC 50mA max
N.O. – Trigger on contact closure
N.C. – Trigger on contact open
GND Ground
DO Open: +5V DC 50mA max
Closed: 0V DC
