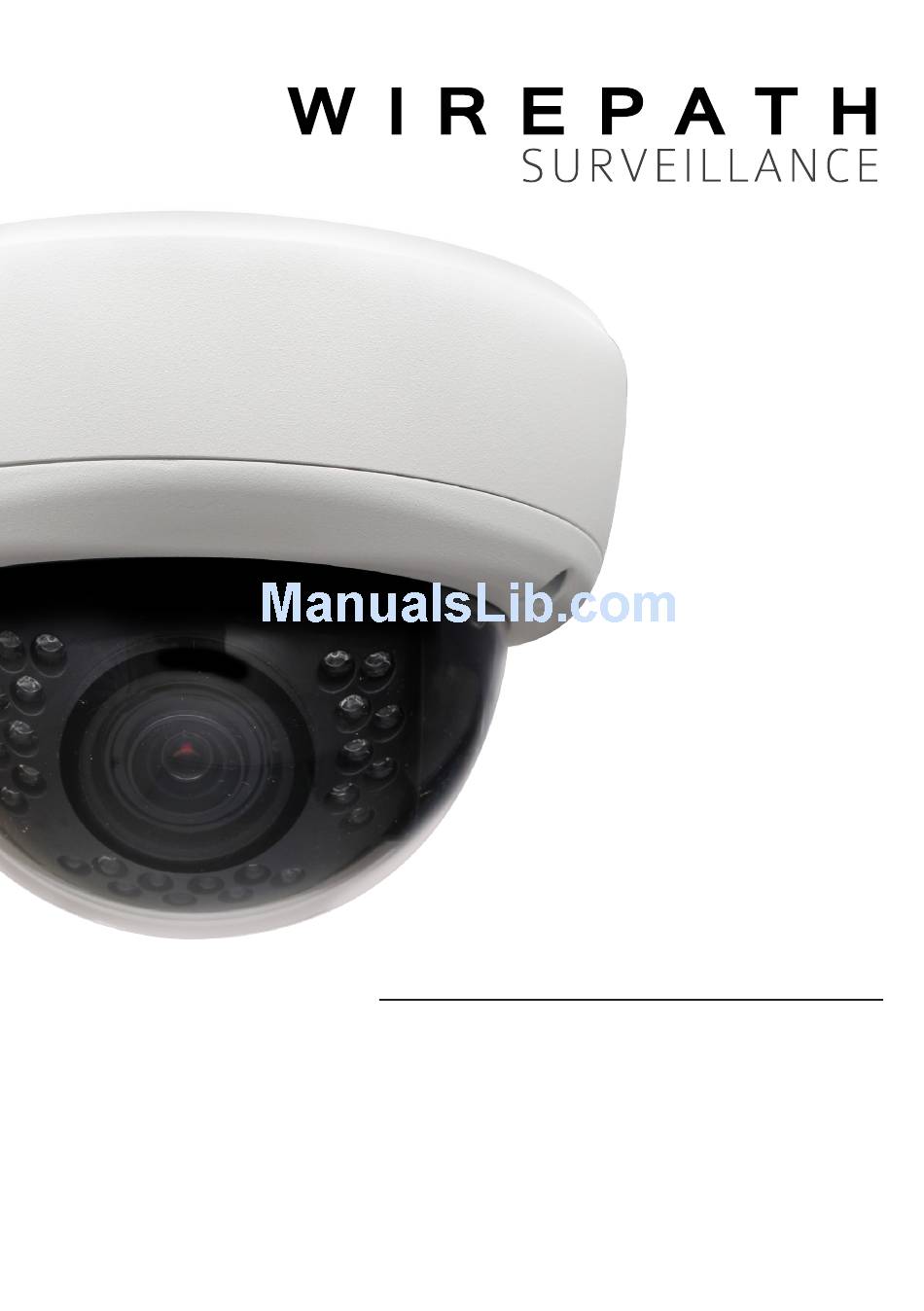

- Page 1 WPS-365-DOM-A DOME CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 2: Table Of Contents
WPS-365-DOM-A Installation Manual CONTENTS Safety Instructions ..................3 Features ......................4 Package Contents ..................4 Wiring Recommendations ................5 Installation Instructions ................6 Troubleshooting ..................8 Specifications .....................9 Dimensions ....................10 Warranty .....................11 Contacting Tech Support .................11... -
Page 3: Safety Instructions
WPS-365-DOM-A Installation Manual SAFETY INSTRUCTIONS This information is provided to ensure your safety and to prevent physical or financial loss. Please read this document carefully before installing and operating the camera. Handle with care. This camera is not designed to resist heavy impact. Use caution when handling to avoid damage to sensitive internal components. -
Page 4: Features
WPS-365-DOM-A Installation Manual FEATURES • 960H 1/3” Color Sony Super HAD II CCD The 960H Sony Super Had II CCD is ideal for low lux illumination resulting in a clear and crisp image. • Varifocal Auto-Iris Lens This camera features a varifocal lens with a focal length of 2.8~12mm to offer flexibility during installation. -
Page 5: Wiring Recommendations
WPS-365-DOM-A Installation Manual Wiring Recommendations Wiring should be installed, terminated, and tested for connectivity before the camera is installed. Specifications for each connection are detailed below. 12V DC 1. Power (Required) Power In Video Out It is recommended to install the camera power supply near the recording location and run a remote power wire to the camera. -
Page 6: Installation Instructions
WPS-365-DOM-A Installation Manual Installation Instructions Wiring must be installed before camera installation. See previous page for connections and wiring recommendations. Step 1. Prepare for Installation Important! DO NOT remove the protective plastic film from the inside or outside of the camera dome until installation is complete and the camera is being sealed for the last time. - Page 7 Step 3. Final Adjustments Now the camera can be powered on and tested. A test monitor (like the Wirepath WPS-CCTV-TESTER) is recommended for easier setup. A. Connect the test monitor to the camera using the included BNC test adapter, or at the head end using the installed coax cable.
-
Page 8: Troubleshooting
WPS-365-DOM-A Installation Manual TROUBLESHOOTING If you have trouble operating the camera, first refer to the following guidelines. If the problem persists, contact Technical Support at (866) 838-5052. Nothing appears on the display: • Check if the power for the camera and the monitor is ON. -
Page 9: Specifications
WPS-365-DOM-A Installation Manual SPECIFICATIONS Imaging Image Sensor 960H 1/3" Color Sony Super HAD II Lens 2.8 ~ 12mm Varifocal Auto Iris Lens Estimated Horizontal Viewing Angle 92 ˚ (W) ~ 30 ˚ (T) Resolution (TVLs) 650 TV Lines Effective Pixels... -
Page 10: Dimensions
WPS-365-DOM-A Installation Manual DIMENSIONS 5.91" Maximum Camera Angle 4.04" Side View 67.0° 67.0° Top View... -
Page 11: Warranty
This warranty shall not apply to products that have been abused, modified, disassembled or improperly installed. Products to be repaired under this warranty must be returned to Wirepath™ Surveillance or a designated service center with prior notification and an assigned return authorization number (RA). - Page 12 © 2014 Wirepath Surveillance 140410-1112...
