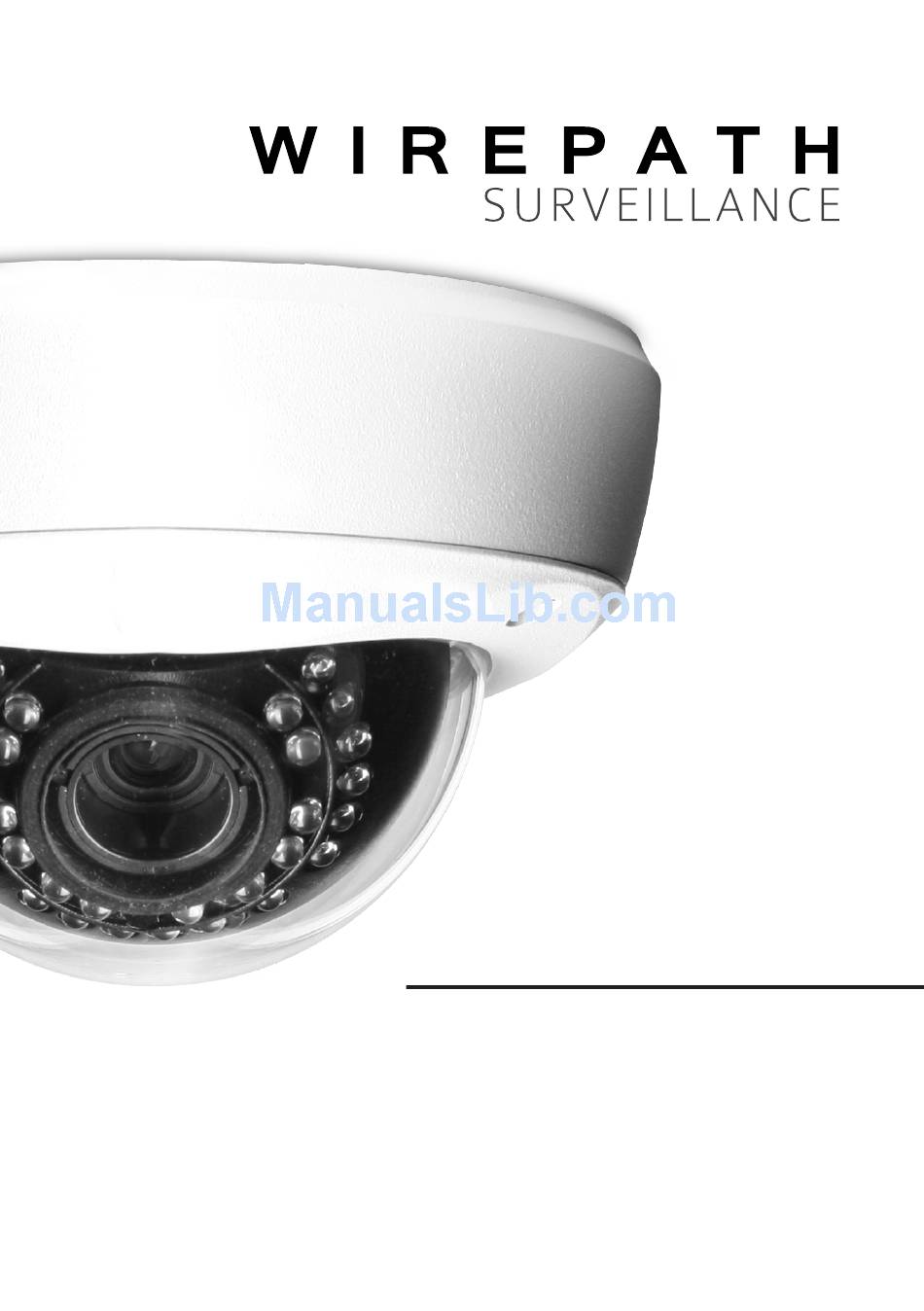

- Page 1 WPS-700-DOM-A-WH WPS-700-DOM-A-BL DOME CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 3: Table Of Contents
3.3 Exposure............... 13 3.4 Day/Night.............14 3.5 WDR/BLC/ECLPS..........15 3.6 White Balance............. 16 3.7 3D-DNR..............17 3.8 Effects..............18 3.9 Special..............19 3.10 Exit............... 22 RS485 System Diagram............... 23 Warranty....................23 Troubleshooting................. 24 Specifications.................. 2 6 Dimensions................... 27 © 2012 Wirepath Surveillance... -
Page 4: Safety Instructions
WPS-700-DOM-A Installation Manual SAFETY INSTRUCTIONS This information is provided to ensure your safety and to prevent physical or financial loss. Please read this document carefully before installing and operating the camera. 1. Handle with care. Use caution when handling to avoid damage to sensitive internal components. 2. Do not install camera under extreme temperatures. This camera only operates under temperature conditions between 14˚F ~ 140˚F. -
Page 5: Features
DVR or PTZ controller connected to the camera’s RS485 wire leads. • 3-Axis Gimbal A 3-axis gimbal provides a wide range of camera positioning angles through mechanical adjustment. • Weatherproof Housing The IP66-rated weatherproof housing makes this camera ideal for outdoor surveillance. © 2012 Wirepath Surveillance... -
Page 6: Package Contents
WPS-700-DOM-A Installation Manual PACKAGE CONTENTS (1) Camera (1) AC/DC plug (3) Screws (3) Wall fasteners (1) 3mm Allen Key (1) Foam gasket Manual NOTE 1: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA. The PS-12DC-1A is recommended. NOTE 2 : A Silica Gel package is mounted inside the dome housing. This package should remain inside the housing after installation. - Page 7 Ensure the rubber lens gasket is in place. 7. Replace the dome cover to the dome base, and make sure the screws on the dome cover are tightened securely. Doing so seals the dome from the elements, and creates a tight fit around the rubber lens gasket to prevent the IR LEDs from reflecting into the lens. © 2012 Wirepath Surveillance...
-
Page 8: Set-Up
WPS-700-DOM-A Installation Manual SET-UP Operating the OSD Menu • To view the OSD, the camera must be connected to a display monitor. OSD Menu Button • The button found on the rear circuit board of the camera provides five separate actions: UP, DOWN, EXIT, ENTER and MENU. • Press the button to enter into the OSD MENU page. • Press UP, DOWN, EXIT (Left) or ENTER (Right) to select items on the menu and begin configuration. - Page 9 ECLPS LEVEL ON, OFF GAIN CONTROL PREVIOUS PREVIOUS HIGH, MIDDLE, LOW BLC LEVEL PREVIOUS ECLPS AREA SETTING ALL AREA SET ON, OFF GRAY, BLACK, D. GRAY MASK COLOR ECLPS LEVEL 1~5 (1) ON, OFF GAIN CONTROL PREVIOUS © 2012 Wirepath Surveillance...
- Page 10 WPS-700-DOM-A Installation Manual OSD Menu Structure cont. (bold indicates factory preset) WHITE BAL COL-ROLL PUSH MANUAL INDOOR, OUTDOOR COLOR TEMP -100~100 (0) BLUE -100~100 (0) INITIAL SET PREVIOUS ON, OFF DNR LEVEL 1~100 (24) 3D-DNR DESTINATION 0-63 (47) ON, OFF GLOBAL MOVEMENT PREVIOUS EFFECTS DZOOM ON, OFF...
- Page 11 L/L SYNC MONITOR TYPE CRT, LCR FACTORY RESET COMM SET PELCO-D PROTOCOL CAMERA ID 0~255 DISPLAY ID ID POSITION PREVIOUS BAUD RATE 4800 / 9600 / 19200 / 38400 / 57600 SAVE / REBOOT PREVIOUS PREVIOUS EXIT © 2012 Wirepath Surveillance...
-
Page 12: Osd Menu Settings
WPS-700-DOM-A Installation Manual OSD MENU SETTINGS The camera menu allows for <MAIN MENU> the adjustment of settings to 1. CAM NAME obtain optimal image clarity 2. LENS DC IRIS and color realism. 3. EXPOSURE 4. DAY/NIGHT 5. WDR/BLC/ECLPS Note : If there is a “ ”... -
Page 13: Exposure
• AUTO: Activates the SENSE-UP function. Select the SENSE-UP level from X2 to X512. Note : The SENSE-UP function is only available when SHUTTER is set to AUTO. INITIAL SET Returns the exposure settings to factory default. © 2012 Wirepath Surveillance... -
Page 14: Day/Night
WPS-700-DOM-A Installation Manual <MAIN MENU> DAY/NIGHT 1. CAM NAME 2. LENS DC IRIS 3. EXPOSURE • Set the DAY/NIGHT value to AUTO, 4. DAY/NIGHT 5. WDR/BLC/ECLPS DAY, NIGHT, or EXT based on the 6. WHITE BAL 7. 3D-DNR installation application. 8. EFFECTS 9.SPECIAL • DAY: The camera remains in color 0. -
Page 15: Wdr/Blc/Eclps
This function corrects the exposure of subjects in front of a bright light source. <BLC MENU> • BLC LEVEL: Set the BLC LEVEL by BLC LEVEL HIGH PREVIOUS selecting LOW, MIDDLE, or HIGH. • PREVIOUS: Return to previous page. © 2012 Wirepath Surveillance... -
Page 16: White Balance
WPS-700-DOM-A Installation Manual ECLIPSE Setting The ECLIPSE function is used to cut off exceptionally bright light, such as headlights of a vehicle. Zones and sensitivity can be < ECLIPSE MENU> adjusted based on the scene. AREA SETTING ALL AREA SET MASK COLOR GRAY •... -
Page 17: 3D-Dnr
7. 3D-DNR 8. EFFECTS Note: The 3D-DNR function is only available 9.SPECIAL 0. EXIT when Auto Gain Control (AGC) is enabled in the EXPOSURE sub menu. • Set the 3D-DNR to ON to activate the DNR function. When 3D-DNR is ON, enter into the subdirectory to adjust: © 2012 Wirepath Surveillance... -
Page 18: Effects
WPS-700-DOM-A Installation Manual <3D-DNR MENU> DNR LEVEL 24 -----|----------- • DNR LEVEL: User-selectable from 1 to 100. DESTINATION 47 -----------|----- The higher the value, the more obvious GLOBAL MOVEMENT PREVIOUS DNR performance. • DESTINATION: User-selectable from 0 to 63. The higher the value, the brighter the image. •... -
Page 19: Special
• MOVE X: Determines the coordinate of the vertical axis for selected zone. • MOVE Y: Determines the coordinate of the horizontal axis for selected zone. • SENSITIVITY: Increase motion detection sensitivity by increasing this setting. • PREVIOUS: Return to previous page. © 2012 Wirepath Surveillance... - Page 20 WPS-700-DOM-A Installation Manual PRIVACY MASK Setting <PRIVACY MASK MENU> Privacy Mask configuration allows for masking MASK NUMBER MASK 1 of up to 8 “surveillance-free” zones in the picture. MASK STATE MASK COLOR WIDTH 20 ---|---------- For example, this may be used for a camera HEIGHT 30 ------|------- that has a neighbor’s window in part of the MOVE X...
- Page 21 - CAMERA ID: Select a unique <SET CAMERA ID> number from 0 to 255 CAMRA ID |------------ DISPLAY ID Warning: If multiple cameras ID POSITION and devices are being used in PREVIOUS the surveillance system, confirm that no other device is using the same ID. If two or more devices share the same ID number, the PTZ controller or DVR will not be able to control or configure any of the devices. © 2012 Wirepath Surveillance...
-
Page 22: Exit
WPS-700-DOM-A Installation Manual - DISPLAY ID: Set DISPLAY ID to ON to display the CAMERA ID on the screen. This feature is useful when needing to know the ID of a camera simply by viewing a picture. - ID POSITION: Select the position for the CAMERA ID on the display screen by using the left and right arrows “”, “”... -
Page 23: Rs485 System Diagram
This warranty shall not apply to products which have been abused, modified, disassembled or improperly installed. Products to be repaired under this warranty must be returned to Wirepath™ Surveillance or a designated service center with prior notification and an assigned return authorization number (RA). © 2012 Wirepath Surveillance... -
Page 24: Troubleshooting
WPS-700-DOM-A Installation Manual TROUBLESHOOTING If you have trouble operating the camera, first refer to the following guidelines. If the problem persists, contact Technical Support at 866.838.5052. Blurring/ Smudge/ Reflection/ Halo • This dome camera features a gasket that keeps the IR LEDs from reflecting off the inside of the dome and into the lens. When improperly aligned or adjusted, during the day you could see a perfect picture but at night have blurring, smudges or "halo" reflections. If this is the case it is easily resolved: • The lens should not be adjusted beyond the recommended max angle. - Page 25 • Check if the flickerless control is set correctly; proper settings should reflect required refresh rates. • Reset the camera to factory default settings. RS-485 communication failure • Check whether the RS-485 polarity is connected correctly to the RS-485 port. • Check the Camera ID setting and make sure there is not more than one device with the same ID on the RS485 network. • Check that the Protocol and Baud Rate for all devices are set to the same configuration. • Warning: Conflicting settings of the Protocol and Baud Rate among devices connected to the RS485 network could result in abnormal operation of the camera. Ensure that the Protocol and Baud Rate for all devises are set to the same configuration. © 2012 Wirepath Surveillance...
-
Page 26: Specifications
WPS-700-DOM-A Installation Manual SPECIFICATIONS WPS-700-DOM-A — True Day/Night Vandal-Resistant Outdoor Varifocal Dome Camera (650 TVL, SWDR) Image Sensor 1/3” Sony Super-HAD II CCD Effective Number NTSC: 768(H) * 494(V) PAL: 752(H) * 582(V) of Pixels Resolution Color: 650 TVL; B/W: 670 TVL Color: 0.03 Lux (50IRE, F1.2), B/W: 0.03 Lux (50IRE, F1.2), 0.00003 Min. -
Page 27: Dimensions
WPS-700-DOM-A Installation Manual DIMENSIONS 5.87” 50˚ 3.86” 50˚ Side View Maximum Lens Angle Top View Bottom View © 2012 Wirepath Surveillance... - Page 28 120111 © 2012 Wirepath Surveillance...
