WPS-750-DOM-IP Installation Manual

7- System Diagram Considerations

7.1- Recommended Equipment

7.1.1- Power Supplies
Wirepath™ Surveillance IP Cameras can be powered using PoE (Power over Ethernet) which supplies power via the Cat5e/Cat6
Ethernet connection. We recommend this method be used as it limits the amount of wiring required thus drastically reducing
installation time. When this method is used a router/switch that is equipped with PoE capabilities or a PoE injector must be used.
Recommendation: We recommend using PoE enabled switches to eliminate the need for separate power supplies reducing the
amount of wiring and decreasing installation time.
7.1.2- Networking Devices
Streaming content from IP Cameras requires bandwidth greater than most devices. We recommended the use of 1Gbps routers and
switches in order to maintain a high quality streaming image. Additionally, to reduce traffic on the overall network, we recommend
that all IP Surveillance devices be connected to a dedicated 1Gbps switch or dedicated VLAN.

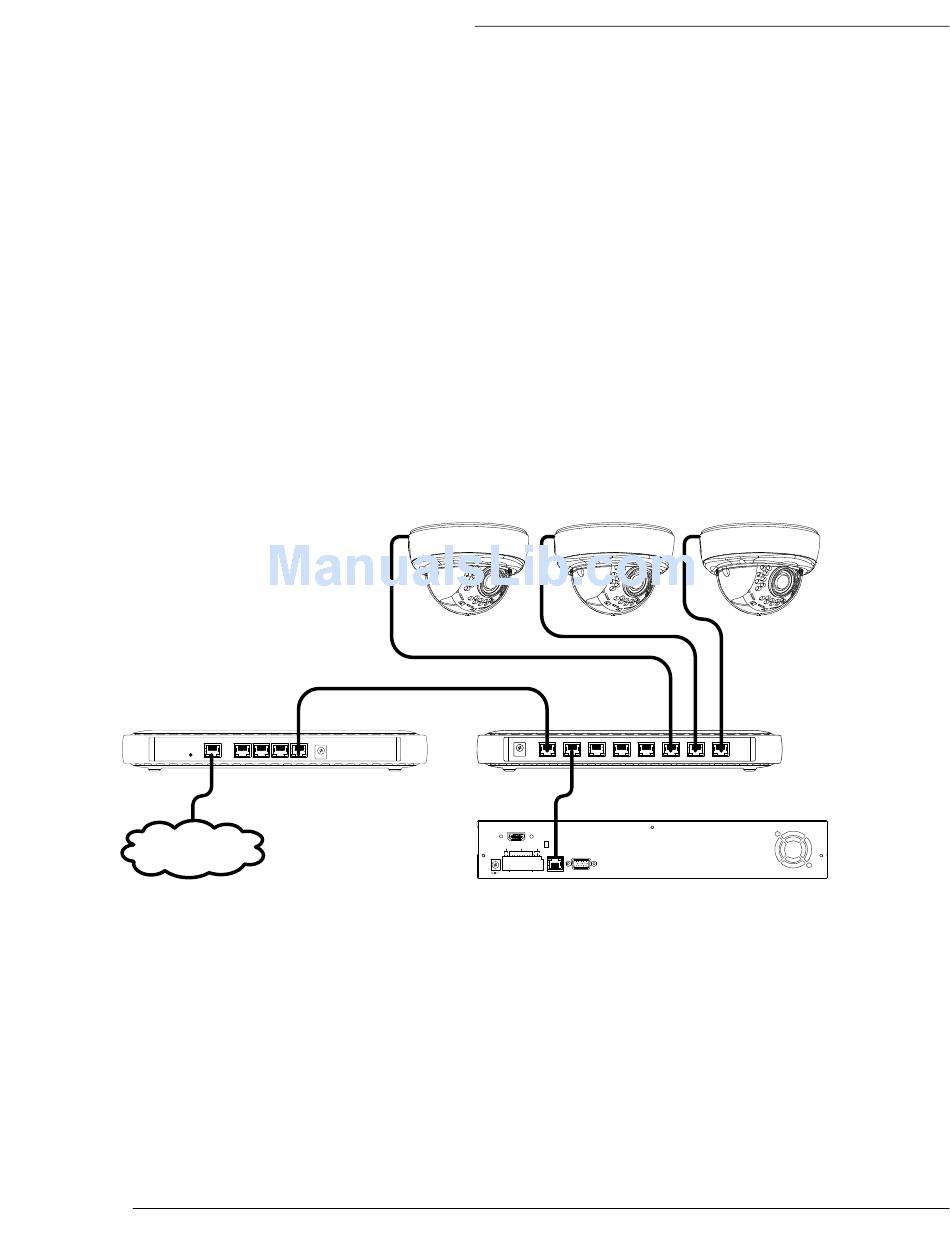

7.2- Basic System Diagram

Internet
Pg. 14
WPS-750-DOM-IP
Router
HDMI OUTPUT
RS-485 ALARM IN
1 2 3 4 5 6 7 8
12V DC 6A
INPUT
GND
1Gbps Network
Switch
HDMI
RELAY
VGA
C O M
N C N O
GND ETHERNET VGA OUTPUT
Wirepath NVR
© 2013 Wirepath™ Surveillance
