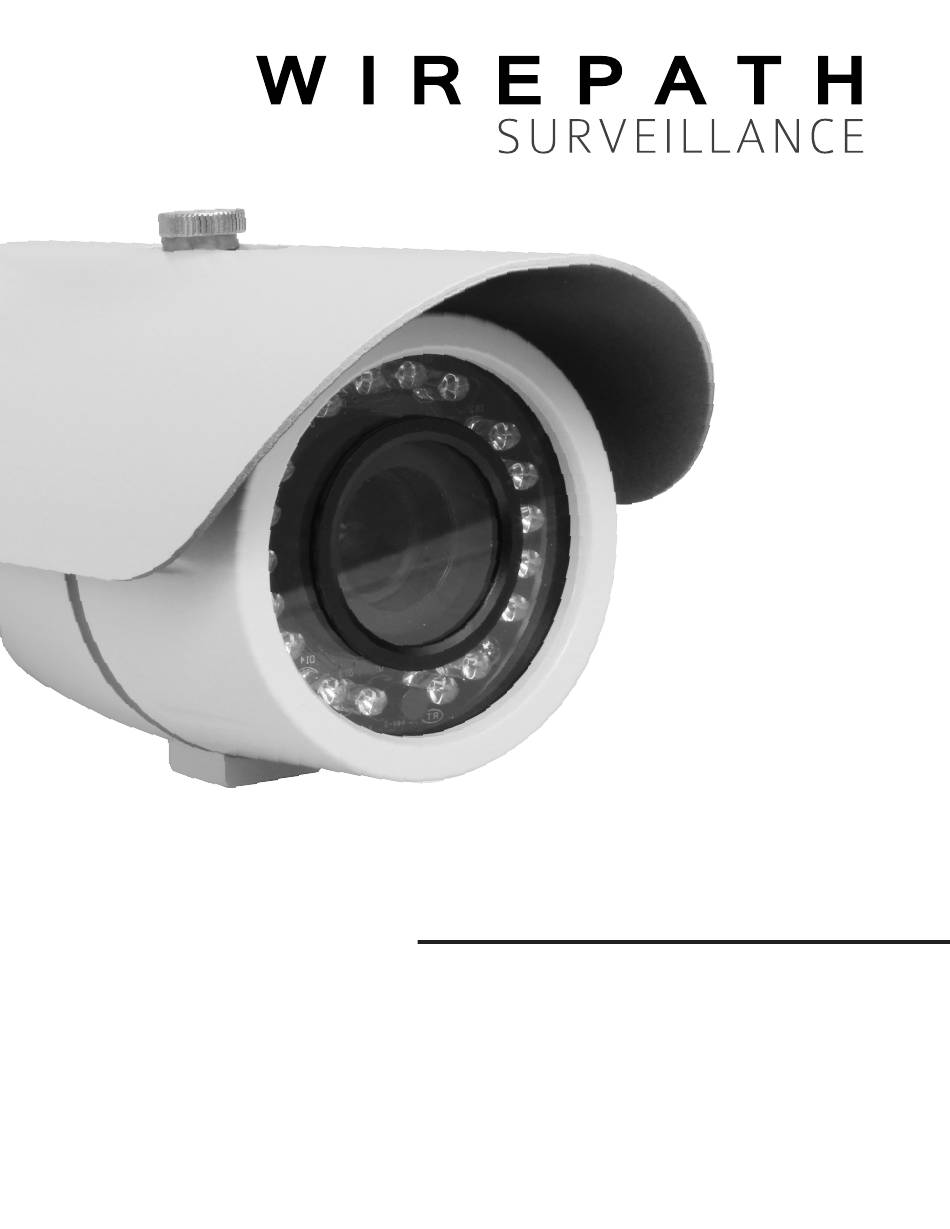

- Page 1 WPS-500-BUL-A-WH BULLET CAMERA INSTALLATION MANUAL Review manual thoroughly before installation. Retain for future reference.
-
Page 2: Table Of Contents
WPS-500-BUL-A Installation Manual CONTENTS Safety Instructions................3 Features....................4 Package Contents................5 Installation Instructions............... 6 Set-Up....................8 1. Operating The OSD Menu............. 8 2. OSD Menu Structure............... 8 3. OSD Menu Settings..............12 3.1 Lens................. 12 3.2 Exposure................. 12 3.3 White Balance............... 13 3.4 Backlight.................14 3.5 Day &... -
Page 3: Safety Instructions
5. Do not install camera in environments with extreme humidity. Installing camera in environments with extreme humidity may cause moisture to condense on the surface of the lens or dome cover, which can affect picture quality. © 2012 Wirepath Surveillance... -
Page 4: Features
WPS-500-BUL-A Installation Manual FEATURES • 1/3” Sony Super-HAD II CCD The Sony Super HAD II CCD is ideal for low lux illumination, resulting in a clear and crisp image. • Varifocal Auto-Iris Lens This camera features a varifocal lens with a focal length of 3.7-12 mm. -
Page 5: Package Contents
NOTE: A POWER SUPPLY IS NOT INCLUDED WITH THIS CAMERA. The PS-12DC-1A or WPS-PS multiple output power supplies are recommended. NOTE: The spare Silica pack is in a vacuum sealed bag, DO NOT remove from this bag until it is needed for use. © 2012 Wirepath Surveillance... -
Page 6: Installation Instructions
WPS-500-BUL-A Installation Manual INSTALLATION INSTRUCTIONS 1. Recommended cabling includes solid copper RG59 or RG6 for video, 18AWG two-conductor for power, and a CAT5 for RS485 control of the OSD. 2. Prior to installation, it is recommended to pre-adjust the camera’s bracket angle so the lens points in the desired direction. - Page 7 Rotate the lens until you achieve the desired setting. Once you have correctly set the zoom and focus, tighten the set screws. With the OSD Joystick / BNC Test Adapter connected, continue to setup the camera using the OSD. © 2012 Wirepath Surveillance...
-
Page 8: Set-Up
WPS-500-BUL-A Installation Manual SET-UP Operating the OSD Menu • To view the OSD, the OSD Joystick / BNC Test Adapter must be connected to a display monitor or WPS- CCTV-TESTER (not included). OSD Menu Button • The button found on the pigtail provides five separate actions: UP, DOWN, EXIT, ENTER and MENU. • Press the button to enter into the OSD MENU page. • Press UP, DOWN, EXIT (Left) or ENTER (Right) to select items on the menu and begin... - Page 9 All Day, Night Only RETURN DAY/NIGHT COLOR AUTO DN LEVEL 1 SEC DN DELAY ND LEVEL 5 SEC ND DELAY RETURN ON, OFF BURST IR SMART ON, OFF IR LEVEL LOW, HIGH RETURN See Page 16 for instructions © 2012 Wirepath Surveillance...
- Page 10 WPS-500-BUL-A Installation Manual OSD Menu Structure cont. (bold indicates factory preset) ON, OFF SPECIAL CAM TITLE MOTION ON, OFF AREA 1, 2, 3, 4 AREA SEL ON, OFF AREA STATE 0-15 (4) HEIGHT 0-15 (4) WIDTH 0-15 (2) LEFT/RIGHT 0-15 (2) TOP/BOTTOM 0-255 (38) DEGREE...
- Page 11 ON, OFF NEG IMAGE CAM ID 1~255 (1) COMM ADJ. ON, OFF ID DISPLAY 2400, 4800, 9600, BAUD RATE 19200, 38400, 57600 PELCO-D, PELCO-P PROTOCOL ID POS RETURN ENGLISH LANGUAGE VERSION RETURN FACTORY RESET RESET RETURN EXIT © 2012 Wirepath Surveillance...
-
Page 12: Osd Menu Settings
WPS-500-BUL-A Installation Manual OSD MENU SETTINGS The camera menu allows for SETUP the adjustment of settings to LENS MANUAL obtain optimal image clarity EXPOSURE and color realism. WHITE BAL. ATW1 BACKLIGHT Note : If there is a “ ” symbol DAY&NIGHT AUTO after the option, enter into the... -
Page 13: White Balance
• ATW2: Auto Tracking White Balance, color temperature is set to 2500° K. • AWCSET: Set the white balance to the scene. • MANUAL: Manually set the white based by adjusting Red and Blue color settings. © 2012 Wirepath Surveillance... -
Page 14: Backlight
WPS-500-BUL-A Installation Manual AWCSET Setting This function is ideal for an environment SETUP with the predominance of a single color. LENS MANUAL EXPOSURE For example, when used in a casino and WHITE BAL. AWCSET the camera is pointed to a green table, BACKLIGHT DAY&NIGHT AUTO... -
Page 15: Day & Night
AUTO, the camera uses the lens to detect the Lux rating of the picture and switches to N LEVEL --------|--------091 N DELAY 1 SEC color or B/W automatically. D LEVEL ---|-------------046 D DELAY 5 SEC RETURN © 2012 Wirepath Surveillance... -
Page 16: Dpc
WPS-500-BUL-A Installation Manual • D N LEVEL: Set the level that the camera switches from color mode to B/W mode. The larger the value, the quicker the camera will switch to B/W mode. • D N DELAY: Set the delay time before the camera switches from color mode to B/W mode. - Page 17 OFF to hide the detection zone on the screen. • Customize the size and the position of each detection zone by adjusting HEIGHT, WIDTH, LEFT/RIGHT, TOP/BOTTOM values. • DEGREE: Increase motion detection sensitivity by increasing this setting. • VIEW: When set to ON, the screen will highlight motion of the moving object with magenta rectangles. © 2012 Wirepath Surveillance...
- Page 18 WPS-500-BUL-A Installation Manual PRIVACY Setting PRIVACY Privacy Mask configuration allows the AREA SEL. AREA 1 masking of up to 8 “surveillance-free” AREA STATE HEIGHT -----|--------------32 zones of the picture. For example, this WIDTH -------------|----- 32 may be used for a camera that has a LEFT/RIGHT ---|----------------20 TOP/BOTTOM --------|---------- 16 neighbor’s window in part of the scene.
- Page 19 - PED LEVEL: The higher the value, the brighter the image. - COLOR GAIN: The higher the value, the darker the image. - GAMMA: Standard GAMMIA value is 0.55. Adjust the value between 0.05 ~1.00. © 2012 Wirepath Surveillance...
-
Page 20: Comm Adj
WPS-500-BUL-A Installation Manual • NEG. IMAGE: The Negative Image View offers a wider dynamic range and preserves most detail as it displays data exactly as the CCD sees it. Select ON for the Negative Image View mode to reproduce images with the most light intensity and color information. -
Page 21: Reset
If the pack's blue crystals have turned pink this indicates the pack has absorbed moisture and must be replaced. C. Replace the lens cap and tighten for a weatherproof seal. Install the sun shade to block direct sunlight on the lens. © 2012 Wirepath Surveillance... -
Page 22: Rs485 System Diagram
WPS-500-BUL-A Installation Manual SYSTEM DIAGRAM RS485 Cable ID 1 ID 2 ID 3 ID 4 ID 255 Controller ID 0... -
Page 23: Troubleshooting
– 75 Ohm. • Reset the camera to factory default settings. Image appears blurry on the display • Check the focus of the lens. • Check the lens. If necessary, clean with a soft, clean cloth. • Check the camera iris and shutter settings. • Reset the camera to factory default settings. The camera is not working properly and the camera housing is hot • Check if camera is connected to the correct power source. © 2012 Wirepath Surveillance... - Page 24 WPS-500-BUL-A Installation Manual The color of the picture is not correct • Check White Balance and Color (Red / Blue) settings. • Reset the camera to factory default settings Screen flickers continuously • Check the camera location to make sure it is not pointing directly towards the sun or bright light source • Check if the flickerless control is set correctly; proper settings should reflect required refresh rates. • Reset the camera to factory default settings AGC settings are not available • DAY&NIGHT Mode is set to AUTO. To enable AGC control change DAY&NIGHT to EXT, Color or B/W RS-485 communication failure • Check whether the RS-485 polarity is connected correctly to the RS-485 port.
-
Page 25: Specifications
WPS-500-BUL-A Installation Manual SPECIFICATIONS WPS-500-BUL-A-WH — True Day/Night Outdoor Varifocal Bullet Camera (600 TVL DWDR) Image Sensor 1/3” Sony Super-HAD II CCD Effective Number of Pixels NTSC: 768(H) * 494(V) Resolution Color: 600 TVL; B/W: 650 TVL Min. Illumination Color: 0.01 Lux (F1.2), 0.0001Lux Gamma 0.45 S/N Ratio 52dB (AGC Off) BNC Video Output 1.0 Vp-p, 75 ohm... -
Page 26: Dimensions
WPS-500-BUL-A Installation Manual DIMENSIONS 8.85” 1.52” 4.43” 10.48” 3.07” 2.68” 3.56” FRONT VIEW BOTTOM VIEW... -
Page 27: Warranty
This warranty shall not apply to products which have been abused, modified, disassembled or improperly installed. Products to be repaired under this warranty must be returned to Wirepath™ Surveillance or a designated service center with prior notification and an assigned return authorization number (RA). CONTACTING TECHNICAL SUPPORT Phone: (866) 838-5052 Email: Techsupport@snapav.com... - Page 28 120823-1336 © 2012 Wirepath Surveillance...
