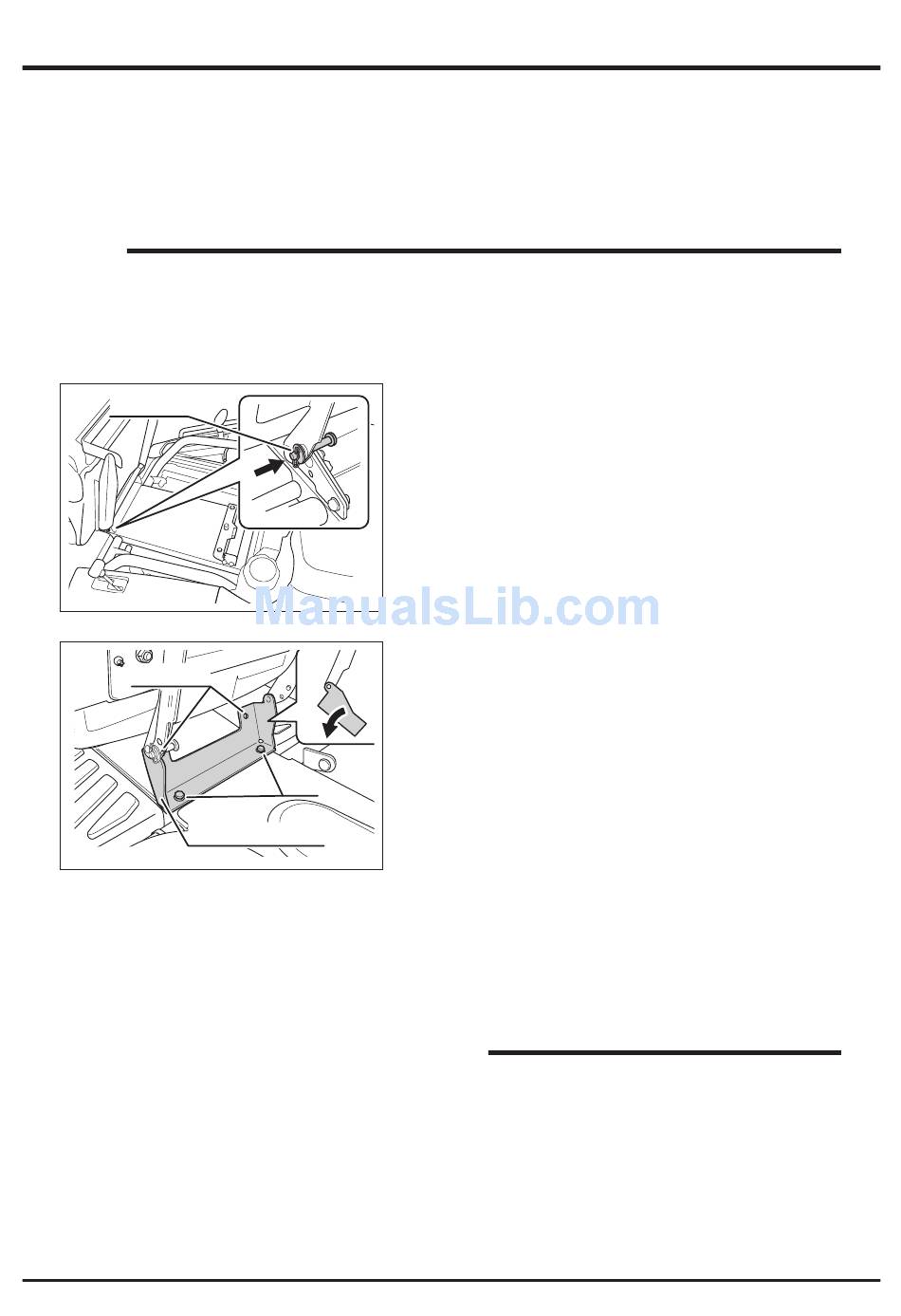

Adjusting Height (Front Part)
Height of seat at front can be set in one of two positions.
NOTE
• Height of seat at front is set at the high position when shipped from the factory.
• Seat switch bracket needs to be in the highest position when setting the front in
high position.
Safety Pin
5332M-0401-080E
Front Hole
Seat hinge Bracket
5347M-0401-150E
Operation
1.
2.
3.
Bolt
4.
Adjusting Height (Rear Part)
1.
2.
NOTE
• Move seat and to check if the seat is locked
securely.
• Height at the rear can be adjusted in 4 levels
(2 for the Oceania version).
• Seat switch bracket is mounted in the
heighest position when shipped from
factory.
-21-
Pull up seat and push safety pin toward
inside to hold seat lift up.
Remove 2 bolts that mount seat hinge
bracket. This bracket holds the entire seat,
so make sure to hold seat when removing
bolts.
Turn around bracket and mount it to floor,
with bolts through front holes.
Pull back seat safety pin and lower seat.
Slide seat to the rear-most position.
Pull up seat and push safety pin toward
inside to hold seat lifted.
4
