5
Lock Lever
Cutting Blade Shield
5335M-0505-070E
Lock Plate
Nut
5347M-0505-100E
5347M-0505-090E
5347M-0505-080
Maintenance
Lock Pin
Lock Lever

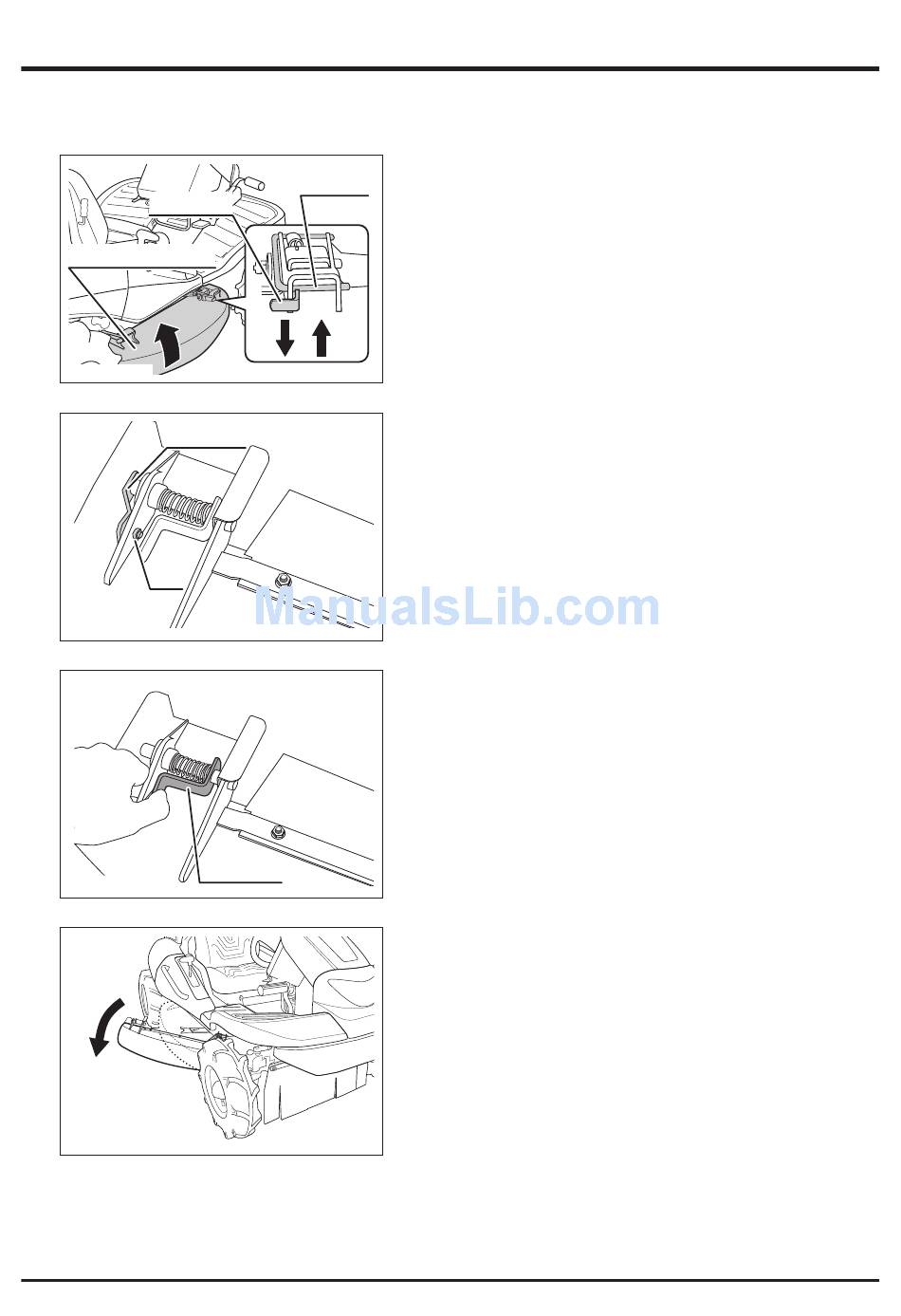

Flipping up shield
1.
Push lock pin to unlock shield.
2.
Pull up lock lever and move shield up or
down to one of three positions.
3.
Press down lock lever to lock shield. Lock pin
will also return to lock position automatically.
Opening shield to the side
1.
Undo nut to remove lock plate.
2.
Squeeze lock lever to open shield to the
side.
-54-
