Part Names and Functions

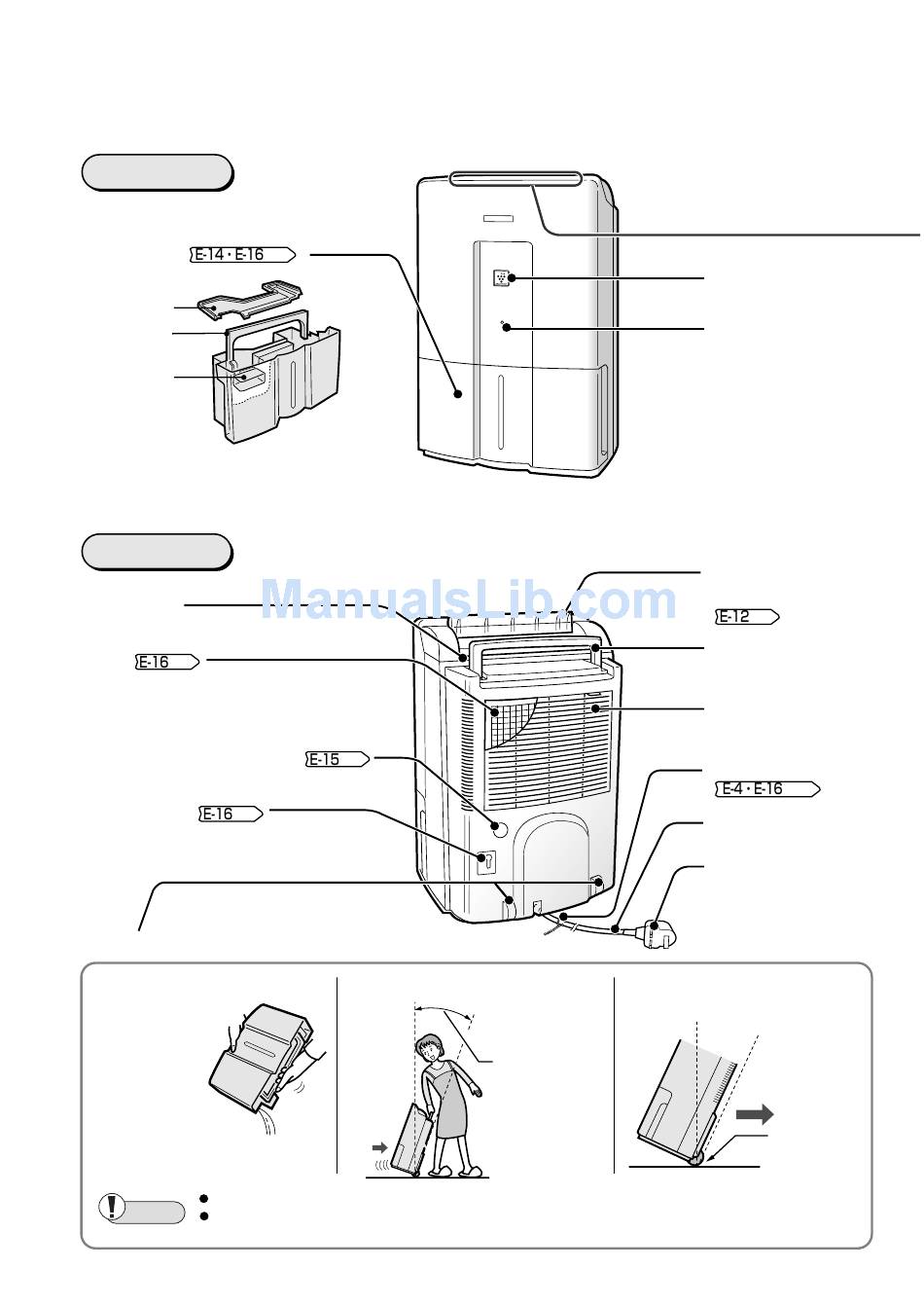

Front view

Water tank
Tank lid
Tank handle
Float
Rear view
Air Outlet
Filter
page
Continuous drainage hole
Cord clamp
Hanging power supply cord together.
Caster
1 Use to move the unit.
Drain water from
the tank.
2
Lift the carrying
handle.
Caution
E-6
page
page
page
3
Do not take out the water tank immediately after operation has stopped to prevent water leakage.
Move the unit by lifting it up when the floor is easily damaged or at a rugged place. Do not use the
caster on a thick-piled carpet. This can cause damage to the surface of the carpet.
Incline the unit.
Incline the unit
at an angle of
30¡ to 40¡ degrees
by putting
your foot on the
back of the unit.
PLASMACLUSTER
ION indicator
FULL TANK
Indicator
Blinks (green) when
the tank is full.
WIDE SWING
Louver
page
Handle
Air intake
Band
page
Power supply cord
Plug
4
Move
Over-inclination
might cause
damage to the
floor and water
to leak.
Do not place
power supply
cord between
the caster.
