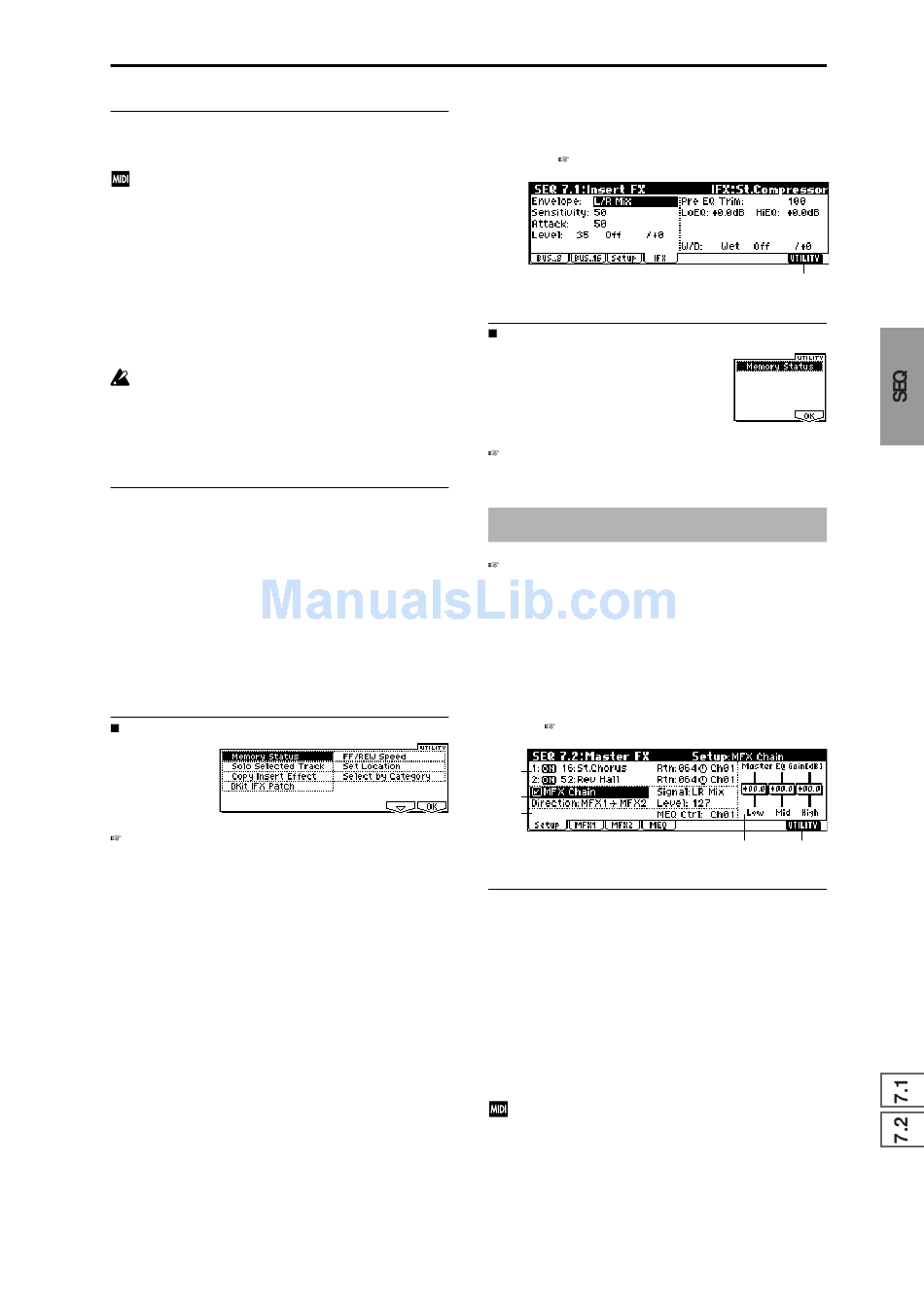

7.1–3b: Control Channel
Indicates the MIDI channel that will control effect
dynamic modulation (Dmod), pan following the insert
effect "Pan (CC#8)," "Send1(MFX1)," and
An asterisk "*" will be displayed at the right of the channel
number Ch01–16 for tracks that are routed to an IFX. If mul-
tiple tracks with differing MIDI channel settings are routed,
these channels specify the channel that will be used to con-
trol the effect.
All Rt. (All Routed): Control can be performed from any of
the MIDI channels of the tracks that are routed.
If "BUS Select" (7.1–1(2)a) is set to DKit for a track in
which a drum program is selected, the MIDI channel of
that track will be valid only if this is set to All Rt.,
regardless of the drum kit "BUS (BUS Select)" (GLO-
BAL 5.1–3a) setting or the utility setting "DrumKit IFX
7.1–3c: Routing Map, BUS Select
This displays the settings of the insert effect. The routing,
speciﬁed effect name, and on/off status of the insert effect
T01...16: BUS Sel
[DKit, L/R, IFX, 1, 2, 1/2, Off]
While viewing the map, you can specify the bus where the
program oscillators for each track 1–16 will be sent.
Use the cursor keys to select the track, and use the [INC]/
[DEC] keys or the [VALUE] dial to set "BUS Select" (7.1–
This setting can also be made in "BUS Select" (7.1–3a).
"Memory Status," "Solo Selected Track" (1.1–1d), "Copy
Insert Effect," (PROG 7.1–1c, 7.1–1b/2b), "DKit IFX
Patch" (COMBI 7.1–1b), "FF/REW Speed," "Set Location"
(1.1–1d), "Select by Category" (PROG 7.1–2c)
Sets the parameters for the effects selected for IFX in the
[Ch01...16, All Rt.]
Setup page ( p.164–).
"Memory Status" (1.1–1d)
For details on the master effects, refer to p.155 "7. Effect
Here you can select the type of master effects, turn them on/
off, and make chain and master EQ settings.
This is the same as Program mode with the exception of
"MFX1 Control Ch," "MFX2 Control Ch," and "MEQ Con-
trol Ch." ( PROG 7.2: Ed-MasterFX)
7.2–1a: Master FX Setup
MFX1 On/Off, MFX2 On/Off
Master Effect 1, 2
Rtn 1, 2 (Return 1, 2)
This is the same as in Program mode. Refer to "PROG 7.2–1:
Setup." However, unlike Program mode, the master effects
will be controlled by the MIDI channel speciﬁed by "MFX 1,
2 Control Ch." The control changes used are the same as in
MFX1, 2 Control Ch
G ch: The effect will be controlled on the global MIDI chan-
nel "MIDI Channel" (GLOBAL 2.1–1a).
SEQ 7.2: Master FX
Speciﬁes the MIDI channel that will control dynamic
modulation (Dmod) for the master effects.
[Ch01...16, G ch]
