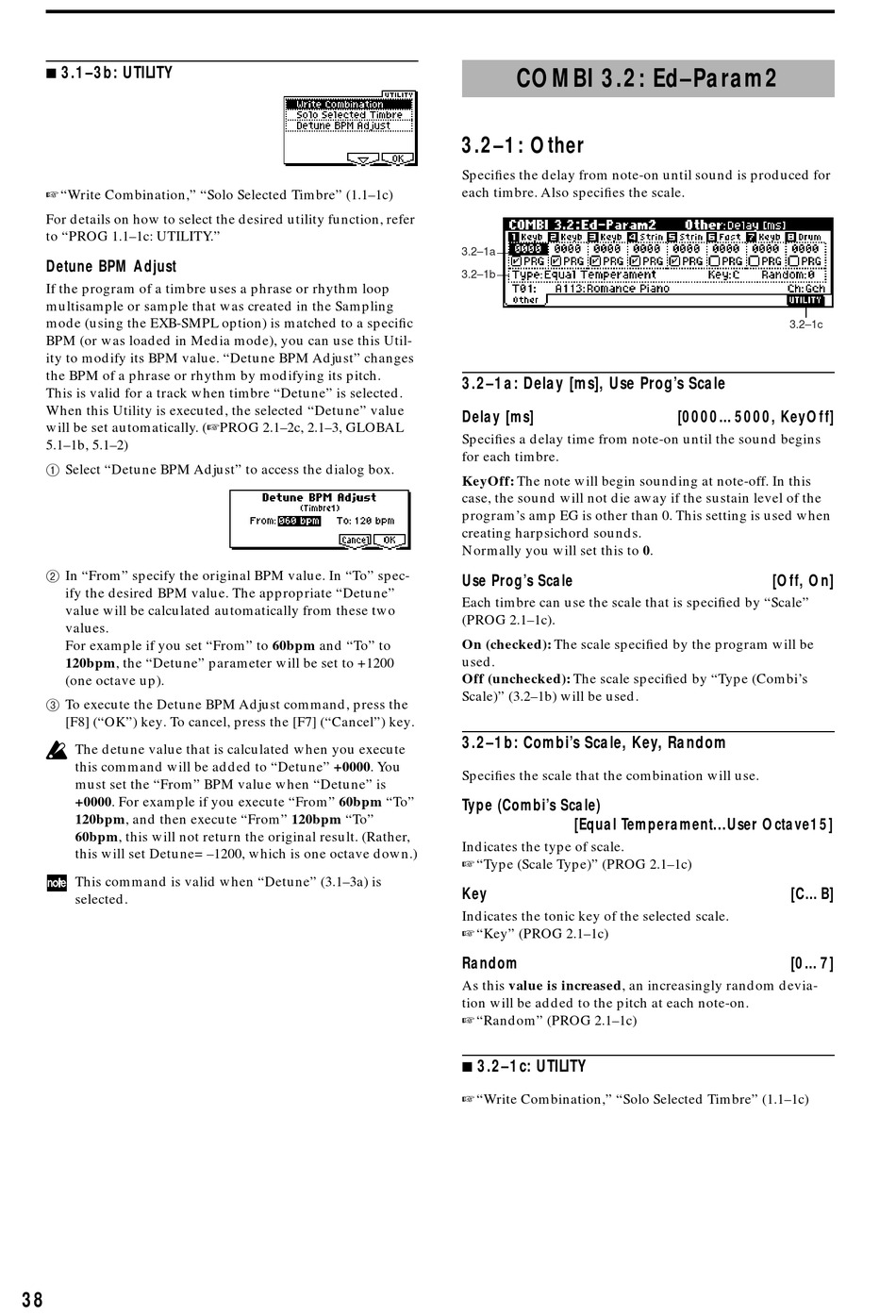

3.1–3b: UTILITY
"Write Combination," "Solo Selected Timbre" (1.1–1c)
For details on how to select the desired utility function, refer
to "PROG 1.1–1c: UTILITY."
Detune BPM Adjust
If the program of a timbre uses a phrase or rhythm loop
multisample or sample that was created in the Sampling
mode (using the EXB-SMPL option) is matched to a specific
BPM (or was loaded in Media mode), you can use this Util-
ity to modify its BPM value. "Detune BPM Adjust" changes
the BPM of a phrase or rhythm by modifying its pitch.
This is valid for a track when timbre "Detune" is selected.
When this Utility is executed, the selected "Detune" value
will be set automatically. ( PROG 2.1–2c, 2.1–3, GLOBAL
5.1–1b, 5.1–2)
1 Select "Detune BPM Adjust" to access the dialog box.
2 In "From" specify the original BPM value. In "To" spec-
ify the desired BPM value. The appropriate "Detune"
value will be calculated automatically from these two
For example if you set "From" to 60bpm and "To" to
120bpm, the "Detune" parameter will be set to +1200
(one octave up).
3 To execute the Detune BPM Adjust command, press the
[F8] ("OK") key. To cancel, press the [F7] ("Cancel") key.
The detune value that is calculated when you execute
this command will be added to "Detune" +0000. You
must set the "From" BPM value when "Detune" is
+0000. For example if you execute "From" 60bpm "To"
120bpm, and then execute "From" 120bpm "To"
60bpm, this will not return the original result. (Rather,
this will set Detune= –1200, which is one octave down.)
This command is valid when "Detune" (3.1–3a) is
COMBI 3.2: Ed–Param2
3.2–1: Other
Specifies the delay from note-on until sound is produced for
each timbre. Also specifies the scale.
3.2–1a: Delay [ms], Use Prog's Scale
Delay [ms]
Specifies a delay time from note-on until the sound begins
for each timbre.
KeyOff: The note will begin sounding at note-off. In this
case, the sound will not die away if the sustain level of the
program's amp EG is other than 0. This setting is used when
creating harpsichord sounds.
Normally you will set this to 0.
Use Prog's Scale
Each timbre can use the scale that is specified by "Scale"
(PROG 2.1–1c).
On (checked): The scale specified by the program will be
Off (unchecked): The scale specified by "Type (Combi's
Scale)" (3.2–1b) will be used.
3.2–1b: Combi's Scale, Key, Random
Specifies the scale that the combination will use.
Type (Combi's Scale)
[Equal Temperament...User Octave15]
Indicates the type of scale.
"Type (Scale Type)" (PROG 2.1–1c)
Indicates the tonic key of the selected scale.
"Key" (PROG 2.1–1c)
As this value is increased, an increasingly random devia-
tion will be added to the pitch at each note-on.
"Random" (PROG 2.1–1c)
3.2–1c: UTILITY
"Write Combination," "Solo Selected Timbre" (1.1–1c)
[0000...5000, KeyOff]
[Off, On]
