Activity

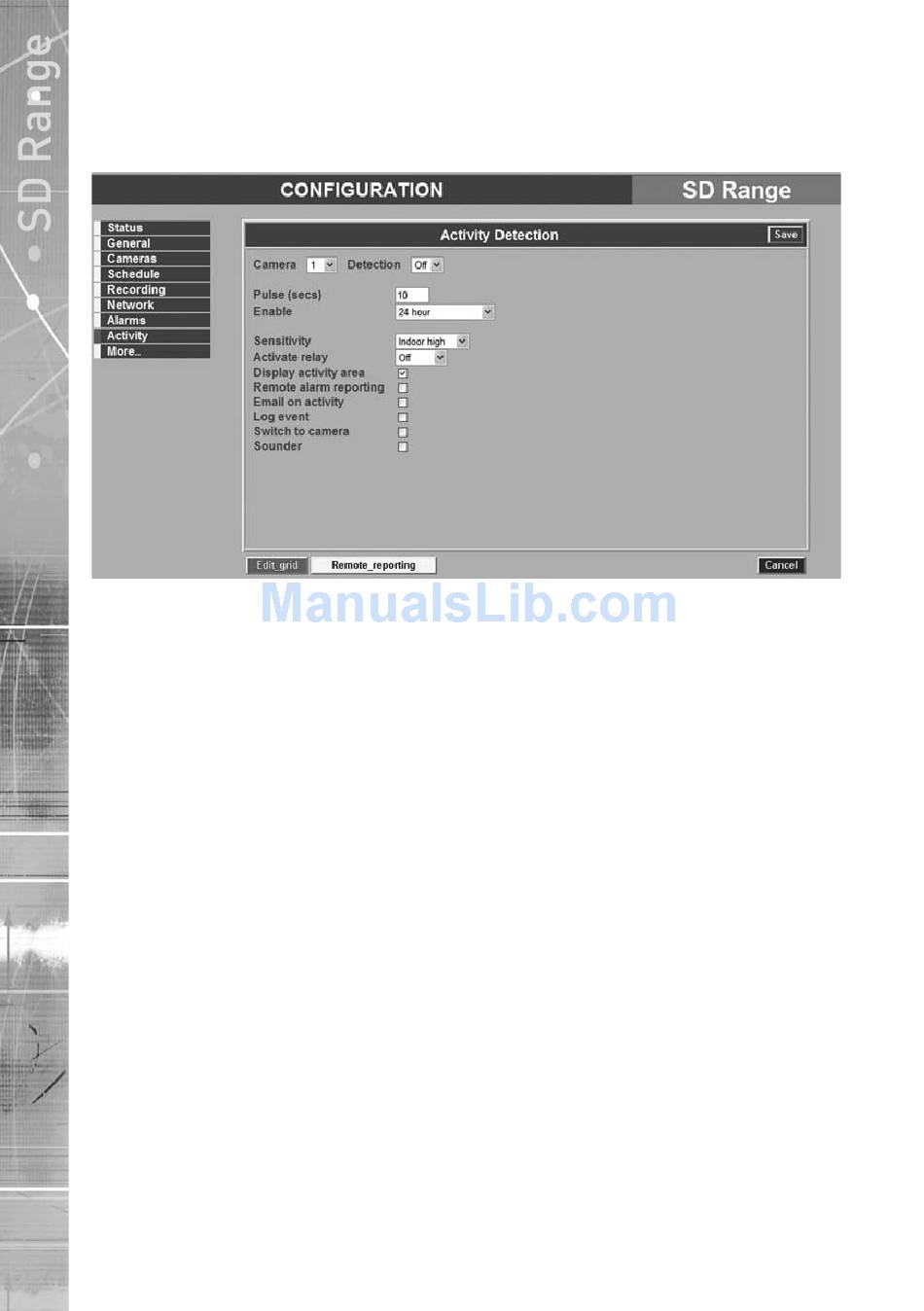

This page allows configuration of the activity detection settings.
6.42
The unit can detect changes in the image received from a camera. This detection can be refined to
specify certain areas of the image using an overlay grid. This grid can be edited.
Camera
Detection
Pulse
Enable
Activate relay
Note: When setting the sensitivity it is recommended that an Activity test is run to ensure the
correct sensitivity is selected.
Sensitivity

This shows which camera settings are currently being edited.
Detection can be deactivated or activated using this drop down
menu.
The pulse extends the trigger period to avoid double triggers of
Activity detection occurring, i.e. If a second incident is received,
after the first alarm is finished but within this period, the unit will
not create a new even, but will extend the current event duration.
This option defines when the activity detection is enabled
The alarm can be used to trigger one of the four available relays.
There are five levels of sensitivity for activity detection to ensure
any scene environment can be covered.
Select the sensitivity level to suit the camera location:
• External cameras where there may be a lot of
background movement, such as cloud shadow or
rain, should be set to Outdoor high, Outdoor low
or very low sensitivity.
• Cameras sited indoors where there is very little
background movement can be set to Indoor high
or Indoor low sensitivity.
The sensitivity levels are:
• Indoor High (most sensitive setting).
• Indoor Low.
• Outdoor High.
