Installing the SD Unit
This procedure shows the sixteen camera input version.

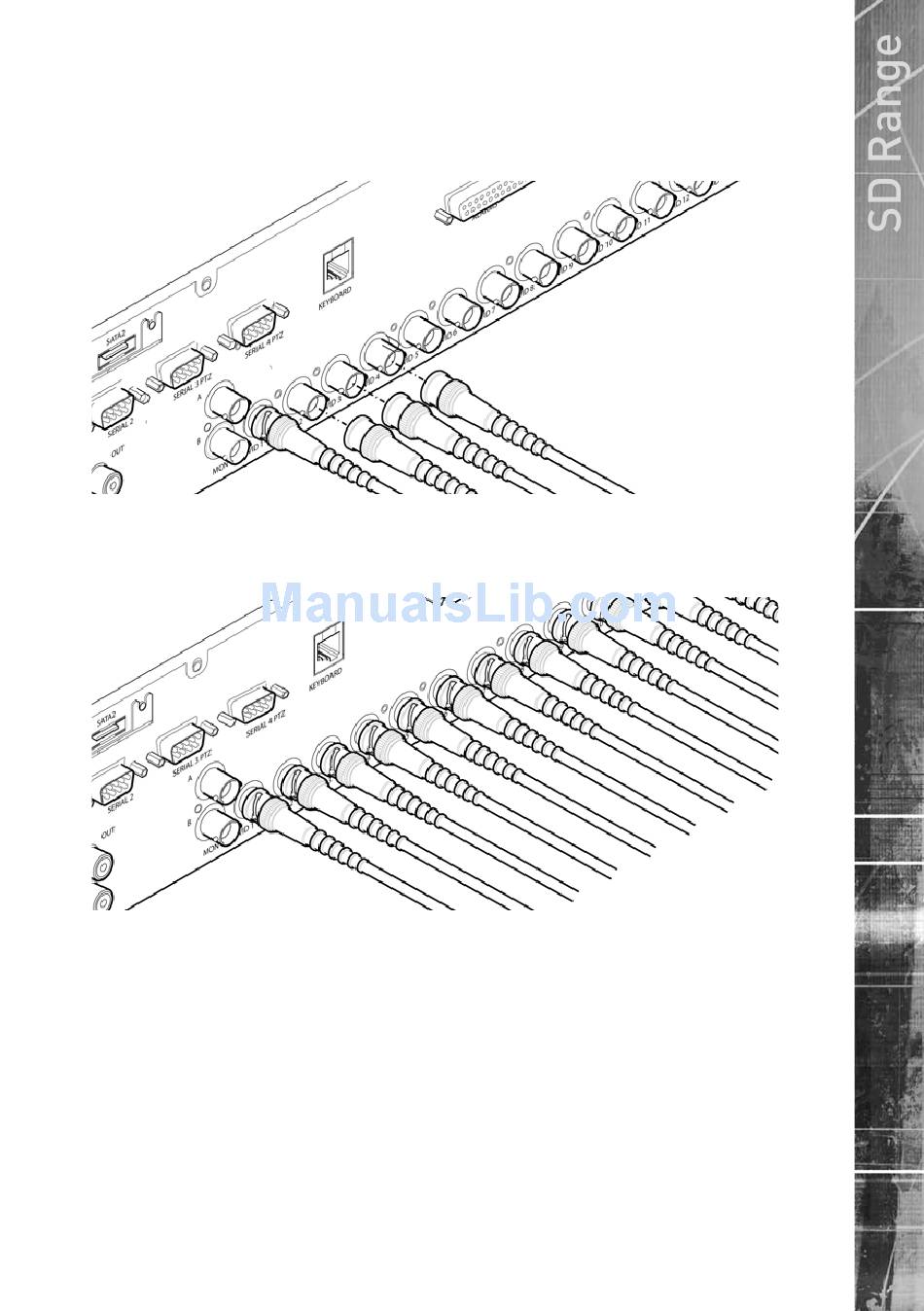

Step 1 Connecting Video
The SD supports up to 8, 12, 16 or 32 connected Video Inputs (dependant on model) via the 75Ω
BNC connectors. Connect cameras to the video inputs, starting from input 1.
5.12
Step Monitor
The SD supports a main monitor via BNC 'A' and a spot monitor via BNC labelled 'B'.
1
Dedicated Micros ©2007
