Dedicated Micros SD Range Installation And Operation Manual page 41

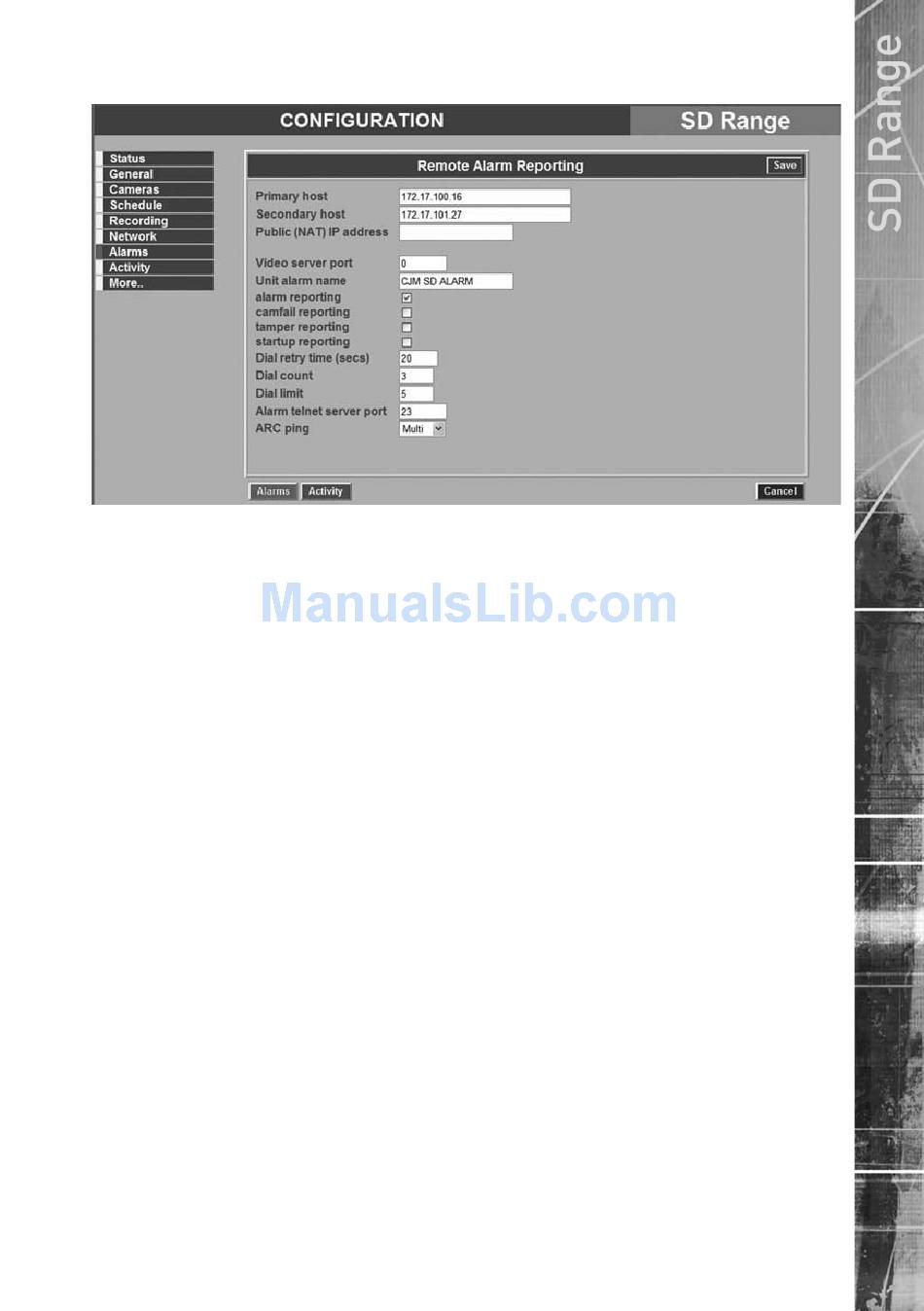

Remote Alarm Reporting
Primary Host
Secondary Host
Public (NAT) IP Address
Video server port
Unit alarm name
Alarm reporting
Camfail reporting
Tamper reporting
Startup reporting
Dial retry time (secs)
Dial count
Dedicated Micros ©2007
This is the IP address or name of the initial host that the unit will
transmit an alarm message to.
If the unit is unable to contact the primary host, an alternative
route can be identified via a secondary host. If there is only one
alarm receiving IP address, you must enter the details in both the
primary and secondary connection settings.
This is the public IP (or domain name) for a unit connected to
the Internet via a NAT Router or Firewall. This field should be left
blank if NAT is not used e.g. on a private network.
This field allows the ARC to connect to the unit through a router
that is using port forwarding e.g. if the video server does not
appear on port 80 (HTTP) to the external network.
This is the name that will be presented to the remote alarm
viewing application. It should therefore have some significance to
the Operator. This name must match the defined folder name in
the Viewer PC folder tree.
This must be enabled for the unit to automatically connect on
alarm. It must also be enabled in the Alarm Zone option.
If the unit identifies camera failure on any of the inputs, enabling
this option will force the unit to connect to the remote alarm
station.
The unit supports Tamper alarm inputs, if a tamper is detected,
this will activate a tamper alarm on that input. The alaem
response is the same as if the alarm had activated.
This will send an alarm report when the unit starts up. Any system
resets will be identified.
If the initial connection attempt fails, the unit will wait for the
specified time period before attempting to re-connect.
This details the number of attempts the unit has made to connect
to the remote alarm monitoring station.
1
