Serial

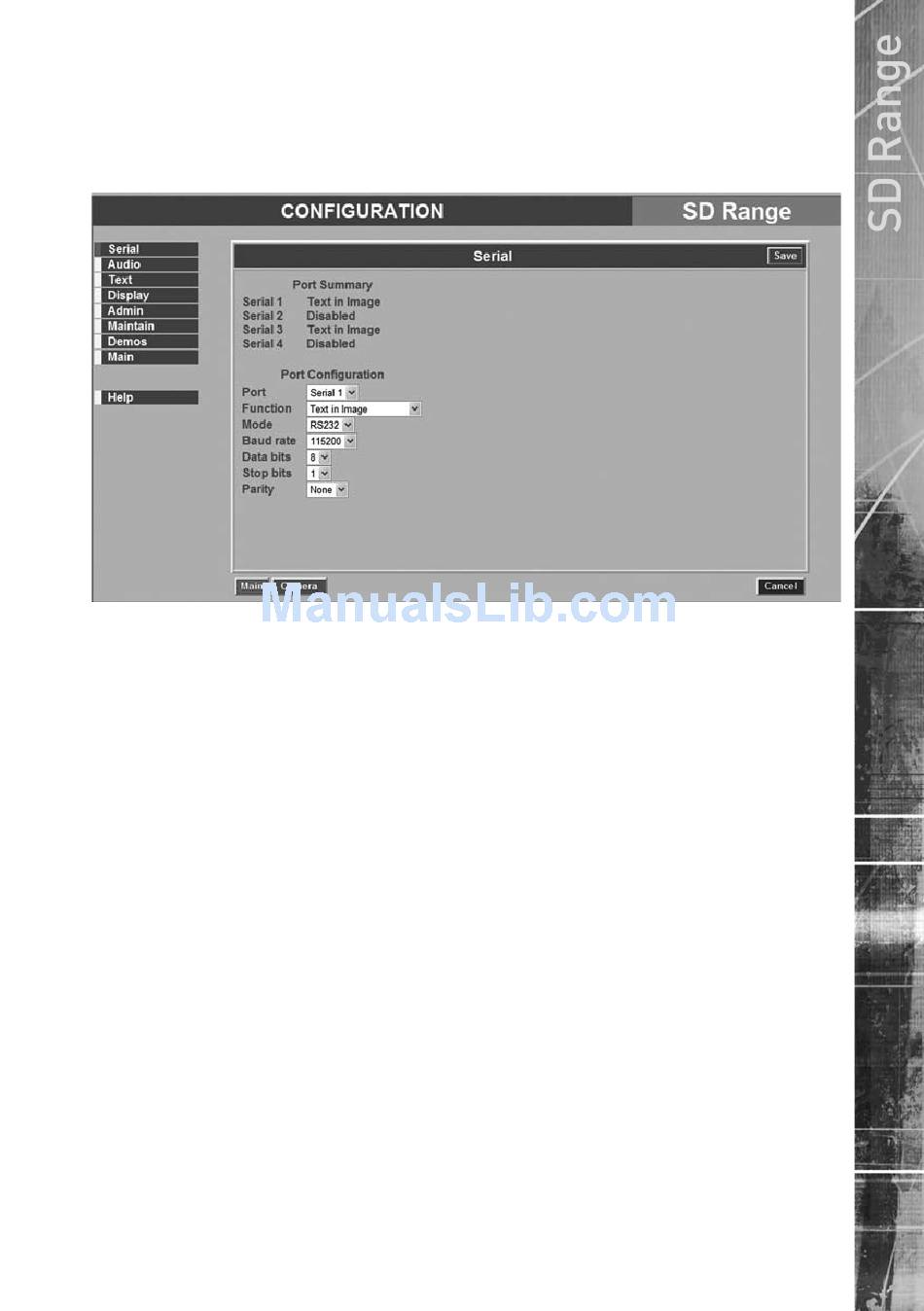

This page allows configuration of the two Serial ports on the rear of the unit. For installation

information, refer to 'Installing the SD DVR'.

Serial Port 1/2/3/4

Function

Mode, Baud Rate, Parity, Data Bits, Stop Bits This allows the communication settings to be configured.

Note: When a telemetry protocol is selected these settings will be set to the default to pre-

determined values for the protocol, and should not normally be altered manually.

Main (Red)

Camera (Green)

Cancel (Purple)

Save

6.6

Select the serial port to be edited

Each serial port can be Disabled, set to Debug (serial

communications), Text in Image, or a number of supported

telemetry products.

This button will navigate to the Main page.

This button will navigate to the Camera settings page.

Settings are automatically saved when the page is closed. Use

this button to cancel any changes before navigating away from

the page.

To 'manually' save changes whilst in a menu page, select the

Save button.
