Alarms And Relays - Dedicated Micros SD Range Installation And Operation Manual

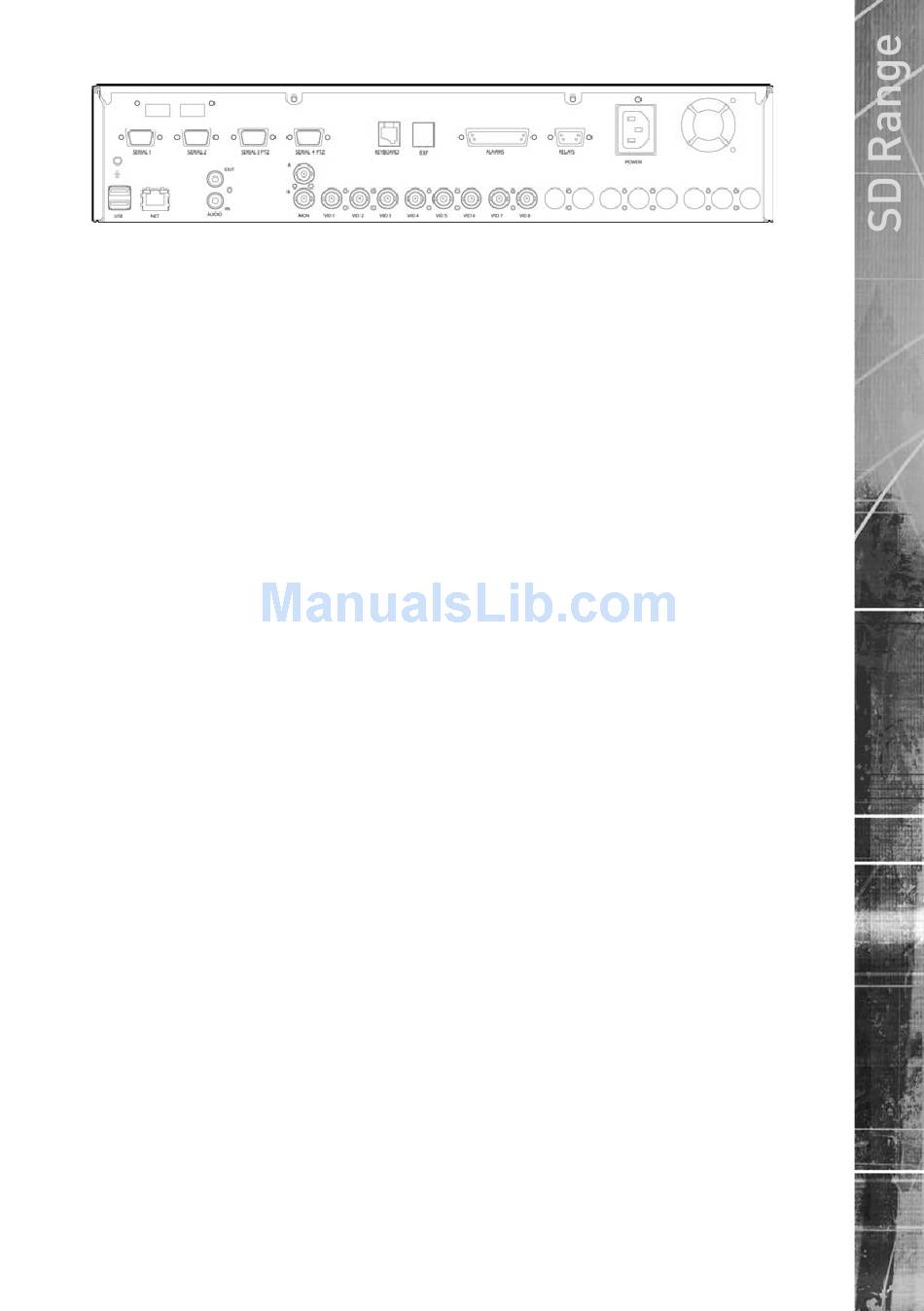

8 Input model
REARPANELDWGSERVER.EPS
Video
VID1 to VID8/VID10/
VID16/VID32
MON A
MON B
Audio
Audio IN
Audio OUT
Note: The 32 input model has two Audio IN / Audio OUT connections.
Data
SER 1
SER 2
SER 3 PTZ
SER 4 PTZ
USB
NET
KBD
EXP
Power
POWER

Alarms and relays

ALARMS IN
RELAYS
Dedicated Micros ©2007
75Ω BNC composite video input, 1V pk-pk.
75Ω BNC composite monitor output, 1V pk-pk
Spot Monitor output
MONIOONITOO
RCA (phono) socket, 8KHz/16KHz/22KHz sampling 75Ω input
impedance, 1V pk-pk
RCA (phono) socket, line level <100Ω output impedance,1V pk-
pk amplification required
RS-232 (3 wire & 9 wire)
RS-232 (3 wire & 9 wire)
RS-485 (2 wire & 4 wire) or RS232 (3 wire)
RS-485 (2 wire & 4 wire) or RS232 (3 wire)
2x USB2.0 connectors
RJ45 Ethernet network connector, 10/100 Mb/s Ethernet Network
RJ12 connector for use with KBC01 or KBC02 telemetry
keyboards.
RJ12 expansion port for future use
IEC mains socket
25 way (female) D Type 24V 200mA
Range of Alarm states are
i. 0 – 800R = Short circuit
ii. 800R – 2K = closed contact
iii. 2k – 12k = open contact
iv. > 12K = open circuit.
9 way (female) D Type rated at 24V 200mA
11
