Disassembly Instructions; Front Unit - Icom IC-F210 Service Manual

SECTION 3

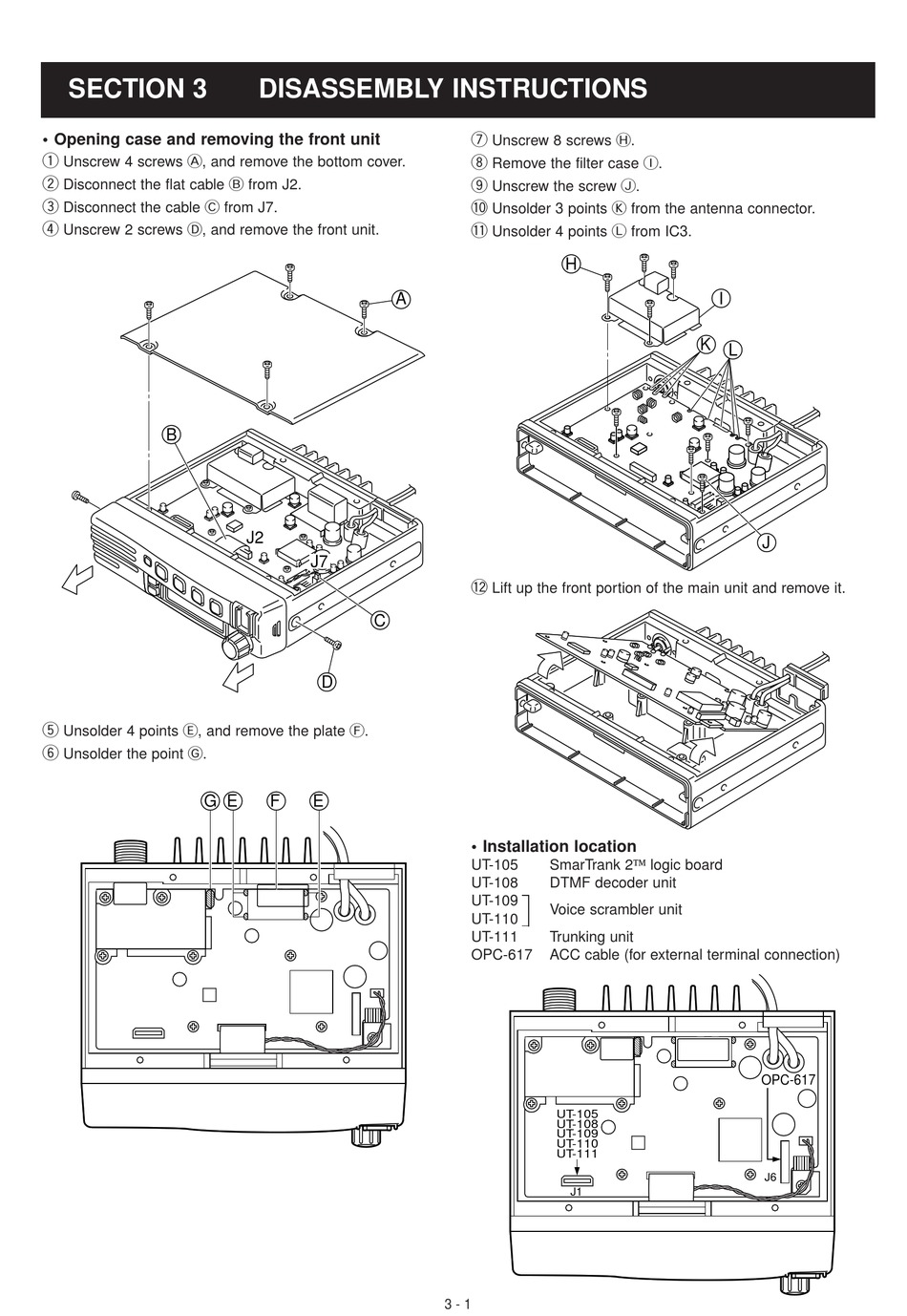

• Opening case and removing the front unit
q
Unscrew 4 screws A, and remove the bottom cover.
w
Disconnect the flat cable B from J2.
e
Disconnect the cable C from J7.
r Unscrew 2 screws D, and remove the front unit.
B
t
Unsolder 4 points E, and remove the plate F.
y Unsolder the point G.
G

DISASSEMBLY INSTRUCTIONS

A
J2
J7
C
D
E F E
u
Unscrew 8 screws H.
i
Remove the filter case I.
o
Unscrew the screw J.
!0
Unsolder 3 points K from the antenna connector.
!1
Unsolder 4 points L from IC3.
H
!2
Lift up the front portion of the main unit and remove it.
• Installation location
UT-105 SmarTrank 2 logic board
UT-108 DTMF decoder unit
UT-109
Voice scrambler unit
UT-110
UT-111 Trunking unit
OPC-617 ACC cable (for external terminal connection)
UT-105
UT-108
UT-109
UT-110
UT-111
J1
3 - 1
I
K
L
J
OPC-617
J6
