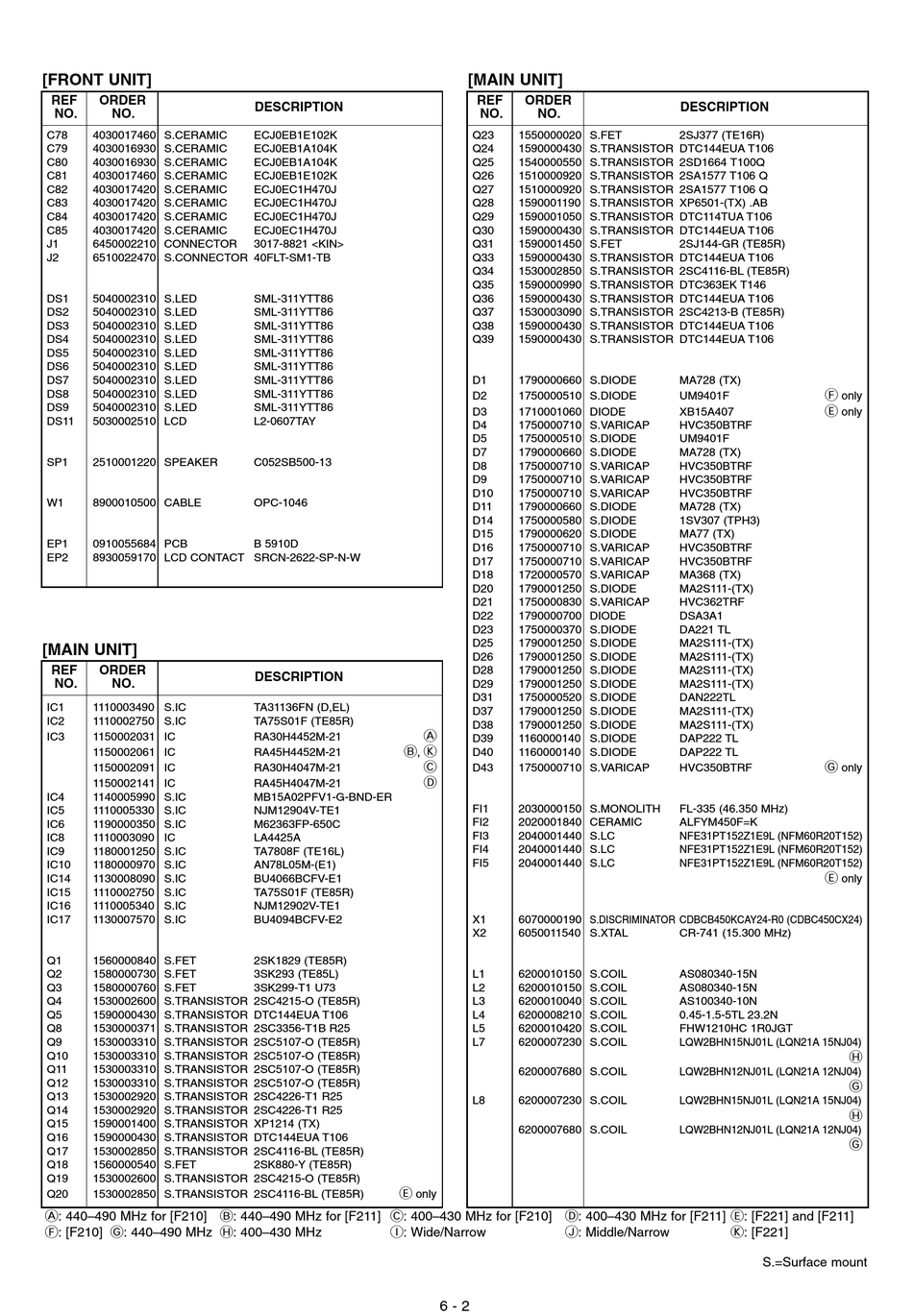

Icom IC-F210 Service Manual page 20

[FRONT UNIT]
REF ORDER
NO. NO.
C78 4030017460 S.CERAMIC
C79 4030016930 S.CERAMIC
C80 4030016930 S.CERAMIC
C81 4030017460 S.CERAMIC
C82 4030017420 S.CERAMIC
C83 4030017420 S.CERAMIC
C84 4030017420 S.CERAMIC
C85 4030017420 S.CERAMIC
J1 6450002210 CONNECTOR
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
DS1 5040002310 S.LED
DS2 5040002310 S.LED
DS3 5040002310 S.LED
DS4 5040002310 S.LED
DS5 5040002310 S.LED
DS6 5040002310 S.LED
DS7 5040002310 S.LED
DS8 5040002310 S.LED
DS9 5040002310 S.LED
DS11 5030002510 LCD
SP1 2510001220 SPEAKER
W1 8900010500 CABLE
EP1 0910055684 PCB
EP2 8930059170 LCD CONTACT SRCN-2622-SP-N-W
[MAIN UNIT]
REF ORDER
NO. NO.
IC1 1110003490 S.IC
IC2 1110002750 S.IC
IC3 1150002031 IC
1150002061 IC
1150002091 IC
1150002141 IC
IC4 1140005990 S.IC
IC5 1110005330 S.IC
IC6 1190000350 S.IC
IC8 1110003090 IC
IC9 1180001250 S.IC
IC10 1180000970 S.IC
IC14 1130008090 S.IC
IC15 1110002750 S.IC
IC16 1110005340 S.IC
IC17 1130007570 S.IC
Q1 1560000840 S.FET
Q2 1580000730 S.FET
Q3 1580000760 S.FET
Q4 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q5 1590000430 S.TRANSISTOR DTC144EUA T106
Q8 1530000371 S.TRANSISTOR 2SC3356-T1B R25
Q9 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q10 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q11 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q12 1530003310 S.TRANSISTOR 2SC5107-O (TE85R)
Q13 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q14 1530002920 S.TRANSISTOR 2SC4226-T1 R25
Q15 1590001400 S.TRANSISTOR XP1214 (TX)
Q16 1590000430 S.TRANSISTOR DTC144EUA T106
Q17 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q18 1560000540 S.FET
Q19 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q20 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
A: 440–490 MHz for [F210] B: 440–490 MHz for [F211] C: 400–430 MHz for [F210] D: 400–430 MHz for [F211] E: [F221] and [F211]
F: [F210] G: 440–490 MHz H: 400–430 MHz
DESCRIPTION
ECJ0EB1E102K
ECJ0EB1A104K
ECJ0EB1A104K
ECJ0EB1E102K
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
ECJ0EC1H470J
3017-8821 <KIN>
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
SML-311YTT86
L2-0607TAY
C052SB500-13
OPC-1046
B 5910D
DESCRIPTION
TA31136FN (D,EL)
TA75S01F (TE85R)
A
RA30H4452M-21
B K
RA45H4452M-21 ,
C
RA30H4047M-21
D
RA45H4047M-21
MB15A02PFV1-G-BND-ER
NJM12904V-TE1
M62363FP-650C
LA4425A
TA7808F (TE16L)
AN78L05M-(E1)
BU4066BCFV-E1
TA75S01F (TE85R)
NJM12902V-TE1
BU4094BCFV-E2
2SK1829 (TE85R)
3SK293 (TE85L)
3SK299-T1 U73
2SK880-Y (TE85R)
E
only
I: Wide/Narrow
[MAIN UNIT]
REF ORDER
NO. NO.
Q23 1550000020 S.FET
Q24 1590000430 S.TRANSISTOR DTC144EUA T106
Q25 1540000550 S.TRANSISTOR 2SD1664 T100Q
Q26 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q27 1510000920 S.TRANSISTOR 2SA1577 T106 Q
Q28 1590001190 S.TRANSISTOR XP6501-(TX) .AB
Q29 1590001050 S.TRANSISTOR DTC114TUA T106
Q30 1590000430 S.TRANSISTOR DTC144EUA T106
Q31 1590001450 S.FET
Q33 1590000430 S.TRANSISTOR DTC144EUA T106
Q34 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
Q35 1590000990 S.TRANSISTOR DTC363EK T146
Q36 1590000430 S.TRANSISTOR DTC144EUA T106
Q37 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q38 1590000430 S.TRANSISTOR DTC144EUA T106
Q39 1590000430 S.TRANSISTOR DTC144EUA T106
D1 1790000660 S.DIODE
D2 1750000510 S.DIODE
D3 1710001060 DIODE
D4 1750000710 S.VARICAP
D5 1750000510 S.DIODE
D7 1790000660 S.DIODE
D8 1750000710 S.VARICAP
D9 1750000710 S.VARICAP
D10 1750000710 S.VARICAP
D11 1790000660 S.DIODE
D14 1750000580 S.DIODE
D15 1790000620 S.DIODE
D16 1750000710 S.VARICAP
D17 1750000710 S.VARICAP
D18 1720000570 S.VARICAP
D20 1790001250 S.DIODE
D21 1750000830 S.VARICAP
D22 1790000700 DIODE
D23 1750000370 S.DIODE
D25 1790001250 S.DIODE
D26 1790001250 S.DIODE
D28 1790001250 S.DIODE
D29 1790001250 S.DIODE
D31 1750000520 S.DIODE
D37 1790001250 S.DIODE
D38 1790001250 S.DIODE
D39 1160000140 S.DIODE
D40 1160000140 S.DIODE
D43 1750000710 S.VARICAP
FI1 2030000150 S.MONOLITH
FI2 2020001840 CERAMIC
FI3 2040001440 S.LC
FI4 2040001440 S.LC
FI5 2040001440 S.LC
X1 6070000190 S.DISCRIMINATOR CDBCB450KCAY24-R0 (CDBC450CX24)
X2 6050011540 S.XTAL
L1 6200010150 S.COIL
L2 6200010150 S.COIL
L3 6200010040 S.COIL
L4 6200008210 S.COIL
L5 6200010420 S.COIL
L7 6200007230 S.COIL
6200007680 S.COIL
L8 6200007230 S.COIL
6200007680 S.COIL
J: Middle/Narrow
6 - 2
DESCRIPTION
2SJ377 (TE16R)
2SJ144-GR (TE85R)
MA728 (TX)
F
UM9401F only
E
XB15A407 only
HVC350BTRF
UM9401F
MA728 (TX)
HVC350BTRF
HVC350BTRF
HVC350BTRF
MA728 (TX)
1SV307 (TPH3)
MA77 (TX)
HVC350BTRF
HVC350BTRF
MA368 (TX)
MA2S111-(TX)
HVC362TRF
DSA3A1
DA221 TL
MA2S111-(TX)
MA2S111-(TX)
MA2S111-(TX)
MA2S111-(TX)
DAN222TL
MA2S111-(TX)
MA2S111-(TX)
DAP222 TL
DAP222 TL
G
HVC350BTRF only
FL-335 (46.350 MHz)
ALFYM450F=K
NFE31PT152Z1E9L (NFM60R20T152)
NFE31PT152Z1E9L (NFM60R20T152)
NFE31PT152Z1E9L (NFM60R20T152)
E
only
CR-741 (15.300 MHz)
AS080340-15N
AS080340-15N
AS100340-10N
0.45-1.5-5TL 23.2N
FHW1210HC 1R0JGT
LQW2BHN15NJ01L (LQN21A 15NJ04)
H
LQW2BHN12NJ01L (LQN21A 12NJ04)
G
LQW2BHN15NJ01L (LQN21A 15NJ04)
H
LQW2BHN12NJ01L (LQN21A 12NJ04)
G
K: [F221]
S.=Surface mount
