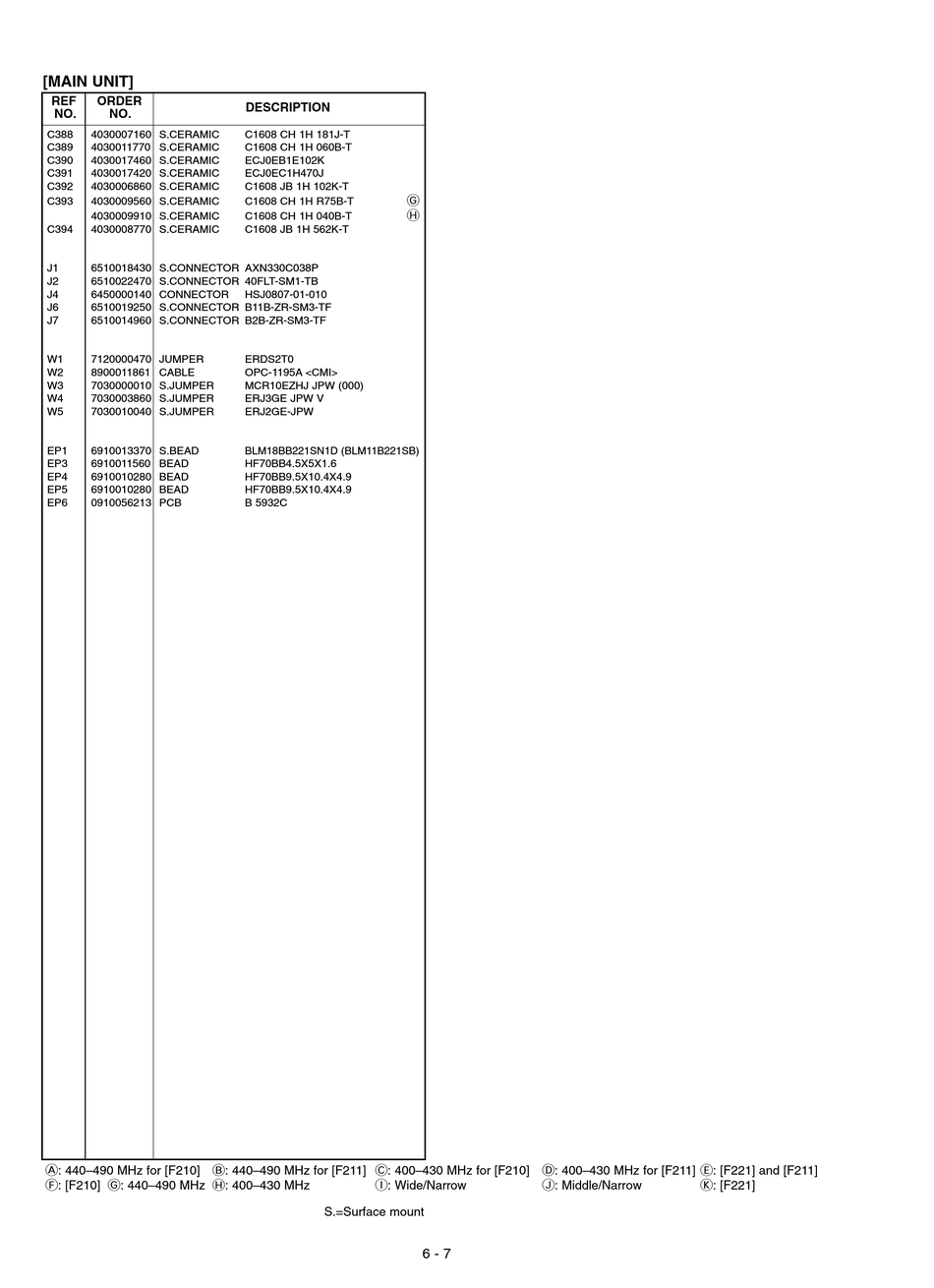

Icom IC-F210 Service Manual page 25

[MAIN UNIT]
REF ORDER
NO. NO.
C388 4030007160 S.CERAMIC
C389 4030011770 S.CERAMIC
C390 4030017460 S.CERAMIC
C391 4030017420 S.CERAMIC
C392 4030006860 S.CERAMIC
C393 4030009560 S.CERAMIC
4030009910 S.CERAMIC
C394 4030008770 S.CERAMIC
J1 6510018430 S.CONNECTOR AXN330C038P
J2 6510022470 S.CONNECTOR 40FLT-SM1-TB
J4 6450000140 CONNECTOR
J6 6510019250 S.CONNECTOR B11B-ZR-SM3-TF
J7 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
W1 7120000470 JUMPER
W2 8900011861 CABLE
W3 7030000010 S.JUMPER
W4 7030003860 S.JUMPER
W5 7030010040 S.JUMPER
EP1 6910013370 S.BEAD
EP3 6910011560 BEAD
EP4 6910010280 BEAD
EP5 6910010280 BEAD
EP6 0910056213 PCB
A: 440–490 MHz for [F210] B: 440–490 MHz for [F211] C: 400–430 MHz for [F210] D: 400–430 MHz for [F211] E: [F221] and [F211]
F: [F210] G: 440–490 MHz H: 400–430 MHz
DESCRIPTION
C1608 CH 1H 181J-T
C1608 CH 1H 060B-T
ECJ0EB1E102K
ECJ0EC1H470J
C1608 JB 1H 102K-T
G
C1608 CH 1H R75B-T
H
C1608 CH 1H 040B-T
C1608 JB 1H 562K-T
HSJ0807-01-010
ERDS2T0
OPC-1195A <CMI>
MCR10EZHJ JPW (000)
ERJ3GE JPW V
ERJ2GE-JPW
BLM18BB221SN1D (BLM11B221SB)
HF70BB4.5X5X1.6
HF70BB9.5X10.4X4.9
HF70BB9.5X10.4X4.9
B 5932C
I: Wide/Narrow
S.=Surface mount
J: Middle/Narrow
6 - 7
K: [F221]
