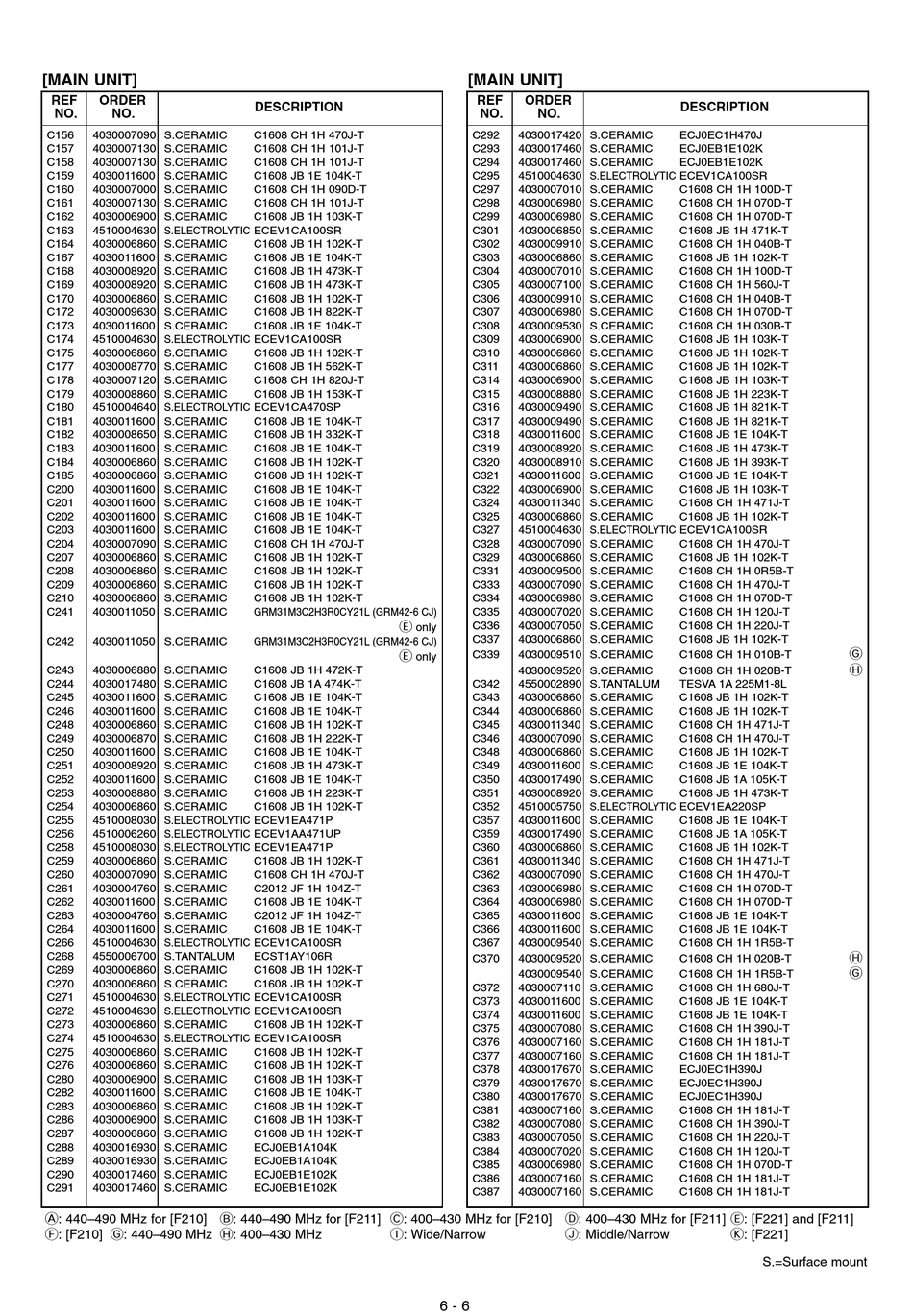

Icom IC-F210 Service Manual page 24

[MAIN UNIT]
REF ORDER
NO. NO.
C156 4030007090 S.CERAMIC
C157 4030007130 S.CERAMIC
C158 4030007130 S.CERAMIC
C159 4030011600 S.CERAMIC
C160 4030007000 S.CERAMIC
C161 4030007130 S.CERAMIC
C162 4030006900 S.CERAMIC
C163 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C164 4030006860 S.CERAMIC
C167 4030011600 S.CERAMIC
C168 4030008920 S.CERAMIC
C169 4030008920 S.CERAMIC
C170 4030006860 S.CERAMIC
C172 4030009630 S.CERAMIC
C173 4030011600 S.CERAMIC
C174 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C175 4030006860 S.CERAMIC
C177 4030008770 S.CERAMIC
C178 4030007120 S.CERAMIC
C179 4030008860 S.CERAMIC
C180 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C181 4030011600 S.CERAMIC
C182 4030008650 S.CERAMIC
C183 4030011600 S.CERAMIC
C184 4030006860 S.CERAMIC
C185 4030006860 S.CERAMIC
C200 4030011600 S.CERAMIC
C201 4030011600 S.CERAMIC
C202 4030011600 S.CERAMIC
C203 4030011600 S.CERAMIC
C204 4030007090 S.CERAMIC
C207 4030006860 S.CERAMIC
C208 4030006860 S.CERAMIC
C209 4030006860 S.CERAMIC
C210 4030006860 S.CERAMIC
C241 4030011050 S.CERAMIC
C242 4030011050 S.CERAMIC
C243 4030006880 S.CERAMIC
C244 4030017480 S.CERAMIC
C245 4030011600 S.CERAMIC
C246 4030011600 S.CERAMIC
C248 4030006860 S.CERAMIC
C249 4030006870 S.CERAMIC
C250 4030011600 S.CERAMIC
C251 4030008920 S.CERAMIC
C252 4030011600 S.CERAMIC
C253 4030008880 S.CERAMIC
C254 4030006860 S.CERAMIC
C255 4510008030 S.ELECTROLYTIC ECEV1EA471P
C256 4510006260 S.ELECTROLYTIC ECEV1AA471UP
C258 4510008030 S.ELECTROLYTIC ECEV1EA471P
C259 4030006860 S.CERAMIC
C260 4030007090 S.CERAMIC
C261 4030004760 S.CERAMIC
C262 4030011600 S.CERAMIC
C263 4030004760 S.CERAMIC
C264 4030011600 S.CERAMIC
C266 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C268 4550006700 S.TANTALUM
C269 4030006860 S.CERAMIC
C270 4030006860 S.CERAMIC
C271 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C272 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C273 4030006860 S.CERAMIC
C274 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C275 4030006860 S.CERAMIC
C276 4030006860 S.CERAMIC
C280 4030006900 S.CERAMIC
C282 4030011600 S.CERAMIC
C283 4030006860 S.CERAMIC
C286 4030006900 S.CERAMIC
C287 4030006860 S.CERAMIC
C288 4030016930 S.CERAMIC
C289 4030016930 S.CERAMIC
C290 4030017460 S.CERAMIC
C291 4030017460 S.CERAMIC
A: 440–490 MHz for [F210] B: 440–490 MHz for [F211] C: 400–430 MHz for [F210] D: 400–430 MHz for [F211] E: [F221] and [F211]
F: [F210] G: 440–490 MHz H: 400–430 MHz
DESCRIPTION
C1608 CH 1H 470J-T
C1608 CH 1H 101J-T
C1608 CH 1H 101J-T
C1608 JB 1E 104K-T
C1608 CH 1H 090D-T
C1608 CH 1H 101J-T
C1608 JB 1H 103K-T
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1H 473K-T
C1608 JB 1H 473K-T
C1608 JB 1H 102K-T
C1608 JB 1H 822K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 562K-T
C1608 CH 1H 820J-T
C1608 JB 1H 153K-T
C1608 JB 1E 104K-T
C1608 JB 1H 332K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 CH 1H 470J-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
GRM31M3C2H3R0CY21L (GRM42-6 CJ)
E
only
GRM31M3C2H3R0CY21L (GRM42-6 CJ)
E
only
C1608 JB 1H 472K-T
C1608 JB 1A 474K-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 222K-T
C1608 JB 1E 104K-T
C1608 JB 1H 473K-T
C1608 JB 1E 104K-T
C1608 JB 1H 223K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 CH 1H 470J-T
C2012 JF 1H 104Z-T
C1608 JB 1E 104K-T
C2012 JF 1H 104Z-T
C1608 JB 1E 104K-T
ECST1AY106R
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 103K-T
C1608 JB 1E 104K-T
C1608 JB 1H 102K-T
C1608 JB 1H 103K-T
C1608 JB 1H 102K-T
ECJ0EB1A104K
ECJ0EB1A104K
ECJ0EB1E102K
ECJ0EB1E102K
I: Wide/Narrow
[MAIN UNIT]
REF ORDER
NO. NO.
C292 4030017420 S.CERAMIC
C293 4030017460 S.CERAMIC
C294 4030017460 S.CERAMIC
C295 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C297 4030007010 S.CERAMIC
C298 4030006980 S.CERAMIC
C299 4030006980 S.CERAMIC
C301 4030006850 S.CERAMIC
C302 4030009910 S.CERAMIC
C303 4030006860 S.CERAMIC
C304 4030007010 S.CERAMIC
C305 4030007100 S.CERAMIC
C306 4030009910 S.CERAMIC
C307 4030006980 S.CERAMIC
C308 4030009530 S.CERAMIC
C309 4030006900 S.CERAMIC
C310 4030006860 S.CERAMIC
C311 4030006860 S.CERAMIC
C314 4030006900 S.CERAMIC
C315 4030008880 S.CERAMIC
C316 4030009490 S.CERAMIC
C317 4030009490 S.CERAMIC
C318 4030011600 S.CERAMIC
C319 4030008920 S.CERAMIC
C320 4030008910 S.CERAMIC
C321 4030011600 S.CERAMIC
C322 4030006900 S.CERAMIC
C324 4030011340 S.CERAMIC
C325 4030006860 S.CERAMIC
C327 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C328 4030007090 S.CERAMIC
C329 4030006860 S.CERAMIC
C331 4030009500 S.CERAMIC
C333 4030007090 S.CERAMIC
C334 4030006980 S.CERAMIC
C335 4030007020 S.CERAMIC
C336 4030007050 S.CERAMIC
C337 4030006860 S.CERAMIC
C339 4030009510 S.CERAMIC
4030009520 S.CERAMIC
C342 4550002890 S.TANTALUM
C343 4030006860 S.CERAMIC
C344 4030006860 S.CERAMIC
C345 4030011340 S.CERAMIC
C346 4030007090 S.CERAMIC
C348 4030006860 S.CERAMIC
C349 4030011600 S.CERAMIC
C350 4030017490 S.CERAMIC
C351 4030008920 S.CERAMIC
C352 4510005750 S.ELECTROLYTIC ECEV1EA220SP
C357 4030011600 S.CERAMIC
C359 4030017490 S.CERAMIC
C360 4030006860 S.CERAMIC
C361 4030011340 S.CERAMIC
C362 4030007090 S.CERAMIC
C363 4030006980 S.CERAMIC
C364 4030006980 S.CERAMIC
C365 4030011600 S.CERAMIC
C366 4030011600 S.CERAMIC
C367 4030009540 S.CERAMIC
C370 4030009520 S.CERAMIC
4030009540 S.CERAMIC
C372 4030007110 S.CERAMIC
C373 4030011600 S.CERAMIC
C374 4030011600 S.CERAMIC
C375 4030007080 S.CERAMIC
C376 4030007160 S.CERAMIC
C377 4030007160 S.CERAMIC
C378 4030017670 S.CERAMIC
C379 4030017670 S.CERAMIC
C380 4030017670 S.CERAMIC
C381 4030007160 S.CERAMIC
C382 4030007080 S.CERAMIC
C383 4030007050 S.CERAMIC
C384 4030007020 S.CERAMIC
C385 4030006980 S.CERAMIC
C386 4030007160 S.CERAMIC
C387 4030007160 S.CERAMIC
J: Middle/Narrow
6 - 6
DESCRIPTION
ECJ0EC1H470J
ECJ0EB1E102K
ECJ0EB1E102K
C1608 CH 1H 100D-T
C1608 CH 1H 070D-T
C1608 CH 1H 070D-T
C1608 JB 1H 471K-T
C1608 CH 1H 040B-T
C1608 JB 1H 102K-T
C1608 CH 1H 100D-T
C1608 CH 1H 560J-T
C1608 CH 1H 040B-T
C1608 CH 1H 070D-T
C1608 CH 1H 030B-T
C1608 JB 1H 103K-T
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 JB 1H 103K-T
C1608 JB 1H 223K-T
C1608 JB 1H 821K-T
C1608 JB 1H 821K-T
C1608 JB 1E 104K-T
C1608 JB 1H 473K-T
C1608 JB 1H 393K-T
C1608 JB 1E 104K-T
C1608 JB 1H 103K-T
C1608 CH 1H 471J-T
C1608 JB 1H 102K-T
C1608 CH 1H 470J-T
C1608 JB 1H 102K-T
C1608 CH 1H 0R5B-T
C1608 CH 1H 470J-T
C1608 CH 1H 070D-T
C1608 CH 1H 120J-T
C1608 CH 1H 220J-T
C1608 JB 1H 102K-T
G
C1608 CH 1H 010B-T
H
C1608 CH 1H 020B-T
TESVA 1A 225M1-8L
C1608 JB 1H 102K-T
C1608 JB 1H 102K-T
C1608 CH 1H 471J-T
C1608 CH 1H 470J-T
C1608 JB 1H 102K-T
C1608 JB 1E 104K-T
C1608 JB 1A 105K-T
C1608 JB 1H 473K-T
C1608 JB 1E 104K-T
C1608 JB 1A 105K-T
C1608 JB 1H 102K-T
C1608 CH 1H 471J-T
C1608 CH 1H 470J-T
C1608 CH 1H 070D-T
C1608 CH 1H 070D-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 CH 1H 1R5B-T
H
C1608 CH 1H 020B-T
G
C1608 CH 1H 1R5B-T
C1608 CH 1H 680J-T
C1608 JB 1E 104K-T
C1608 JB 1E 104K-T
C1608 CH 1H 390J-T
C1608 CH 1H 181J-T
C1608 CH 1H 181J-T
ECJ0EC1H390J
ECJ0EC1H390J
ECJ0EC1H390J
C1608 CH 1H 181J-T
C1608 CH 1H 390J-T
C1608 CH 1H 220J-T
C1608 CH 1H 120J-T
C1608 CH 1H 070D-T
C1608 CH 1H 181J-T
C1608 CH 1H 181J-T
K: [F221]
S.=Surface mount
