3. Mount the Hub

After you have verified that the hub passes self test, it is ready to be mounted
in the location you have prepared. The hub can be mounted in these ways:
Rack or Cabinet Mounting
The HP 10/100 hubs are designed to be mounted in any EIA-standard 19-inch
telco rack or in an equipment cabinet such as a server cabinet.
C a u t i o n
For safe operation, please read the mounting precautions in
the section, "Installation Precautions" earlier in this chapter before
mounting a hub.
1.
8 mm M4 screws
2-6
If the LED display is different than what is described above especially if
the Fault LED stays on for more than 5 seconds for the Hub 12 and Hub
24, and more than 35 seconds for the Hub 12M and Hub 24M, or the Fault
LED flashes, the self test has not completed correctly. Refer to chapter 3,
"Troubleshooting" for diagnostic help.
in a rack or cabinet
on a wall
on a horizontal surface

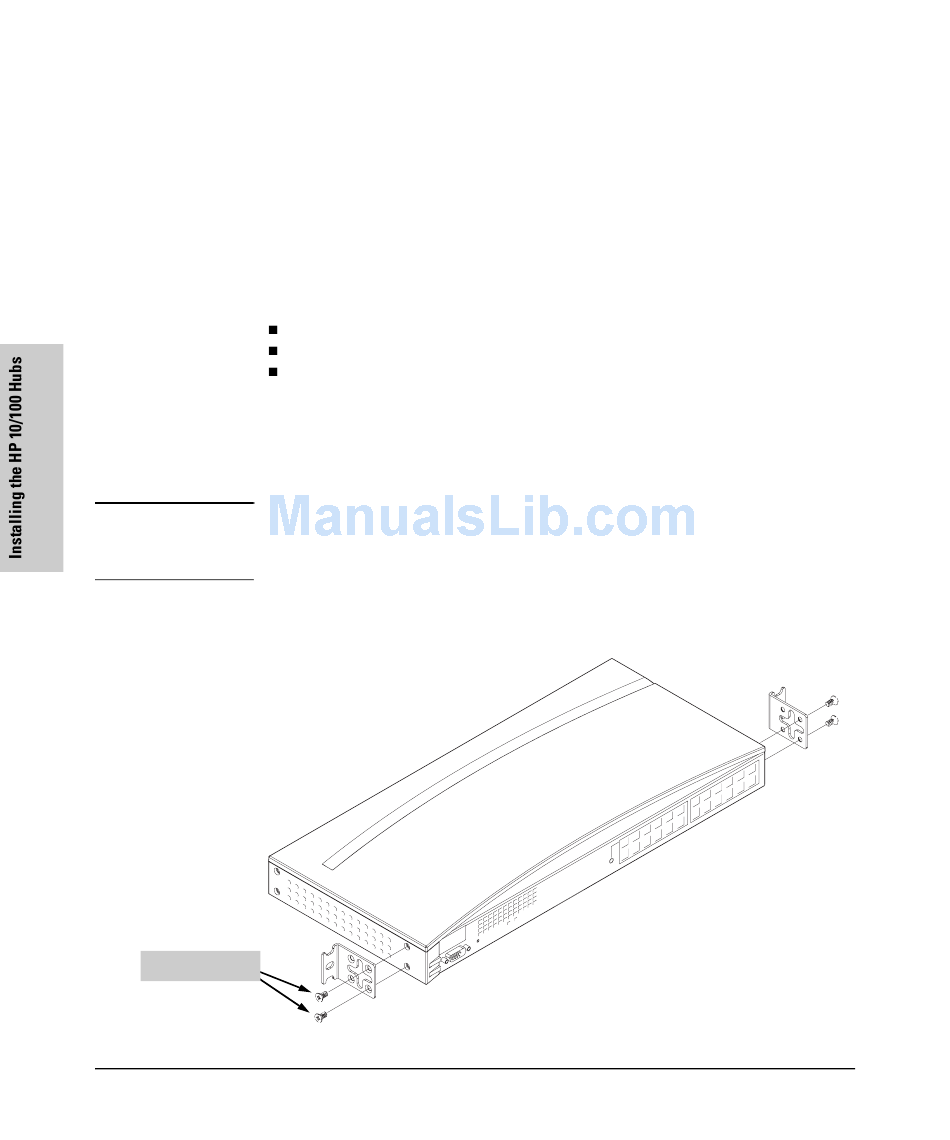

Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the hub with the included 8-mm M4 screws.
