2-7.2 JBAT1 Clear CMOS

When you have problem with rebooting your
system, you can clear CMOS data and restore
it to default value. To clear CMOS with Jumper
JBAT1, please follow the steps below:
1. Power off system;
2. Set JBAT1 to Pin 2-3 closed.
3. After 2 or 3 seconds, return the JBAT1 setting
to Pin1-2 closed.
4. CMOS data are restored to default. Remem
ber never clear CMOS when system power is
on.

2-7.3 Jp10 CPU Clock Select:

• Jp10 is designed on board for user to raise the CPU clock. This main-
board supports CPU that can autodetect CPU clock itself. If you leave
Jp10 at default value 1-2 closed, CPU on board will auto detect its own
CPU clock. If you set Jp10 all open, CPU is set at 100 MHz. If you set
Jp10 at 2-3 closed, CPU on board will try to run at 133 MHz.
• However, overclocking should take other components on board into ac-
count and it always risks the stability of your system. There is no guaran-
tee of success.

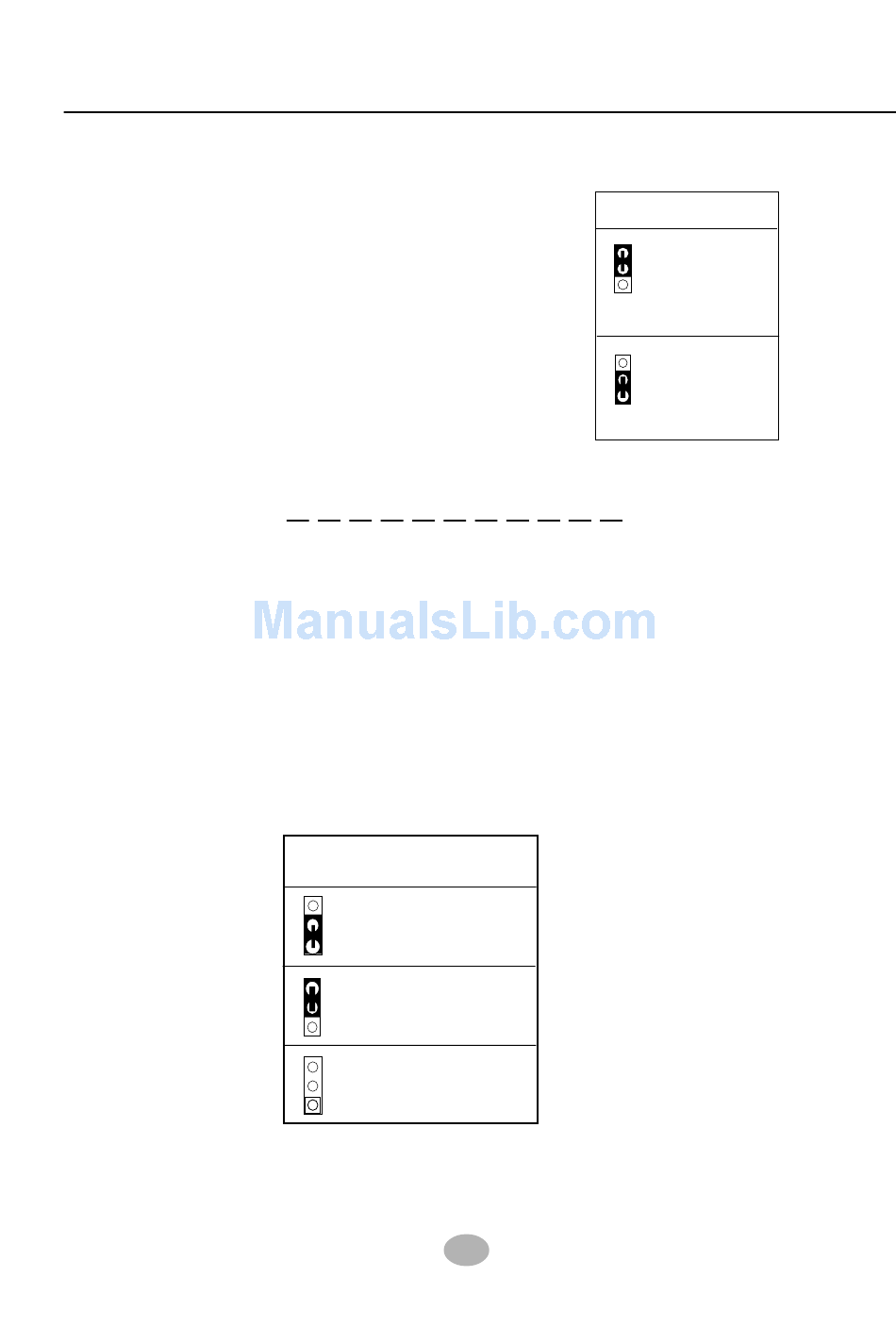

Jp10
CPU Clock Select
1-2
CPU Auto-detect
closed
(default)
1
2-3
133 MHz
closed
1
1-2-3
100 MHz
open
1
1
1
28
JBAT1
2-3 closed
To clear CMOS
1-2 closed
(default)
To return to
normal status
