2-8.4 Chassis Panel Connector - SOLTEK SL-85DRV3 User Manual

85DRV3

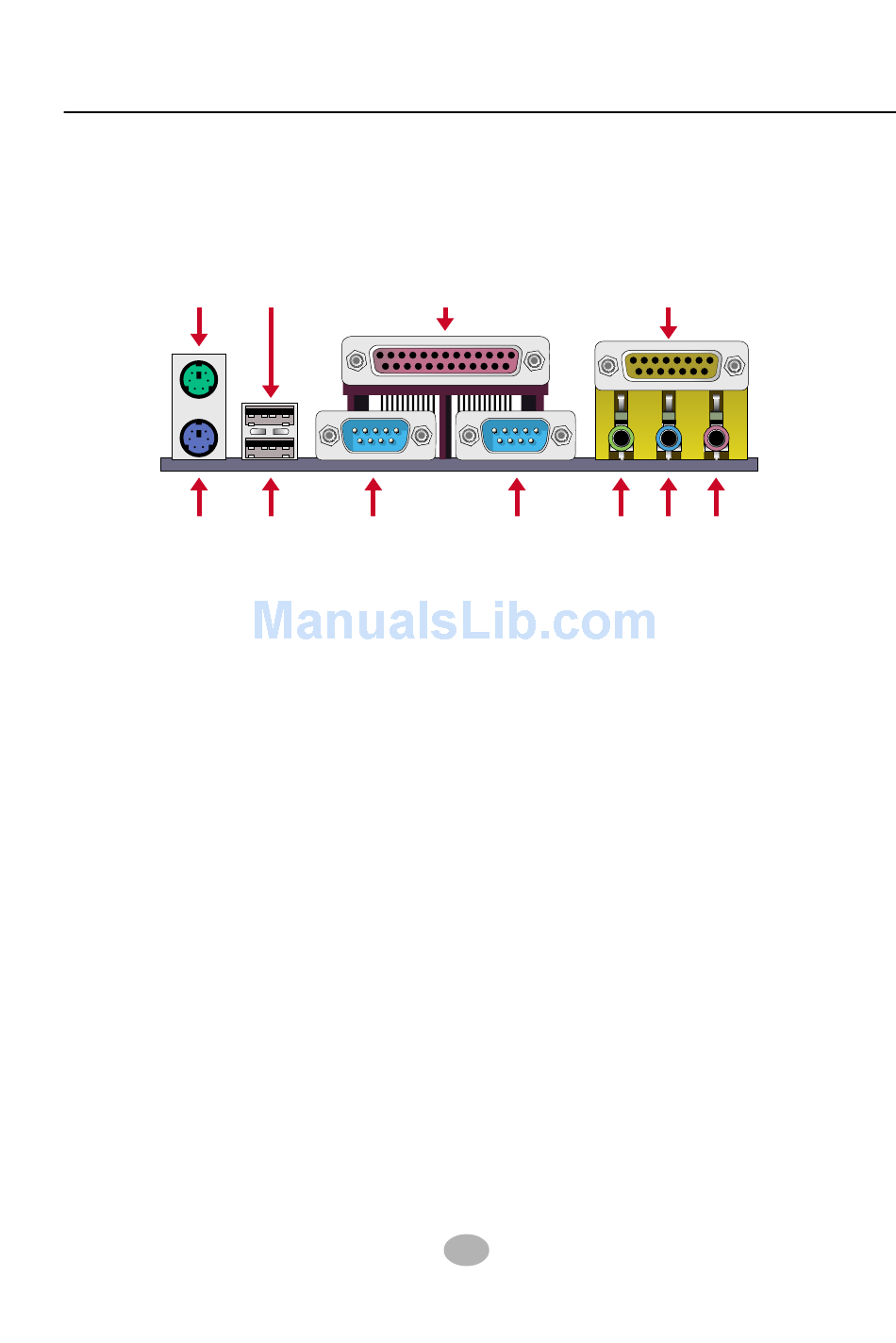

2-8.4 Chassis Panel Connector

A. B.
E. F.
C.
G.
A : PS/2 MOUSE PORT
B : USB 0 PORT
C : LPT1 PORT
D : GAME/MIDI PORT
E : PS/2 KEYBOARD PORT
F : USB 1 PORT
G : COM1 PORT
H : COM2 PORT
I : LINE/SPEAKER OUT
J : LINE IN
K : MICROPHONE INPUT
