11

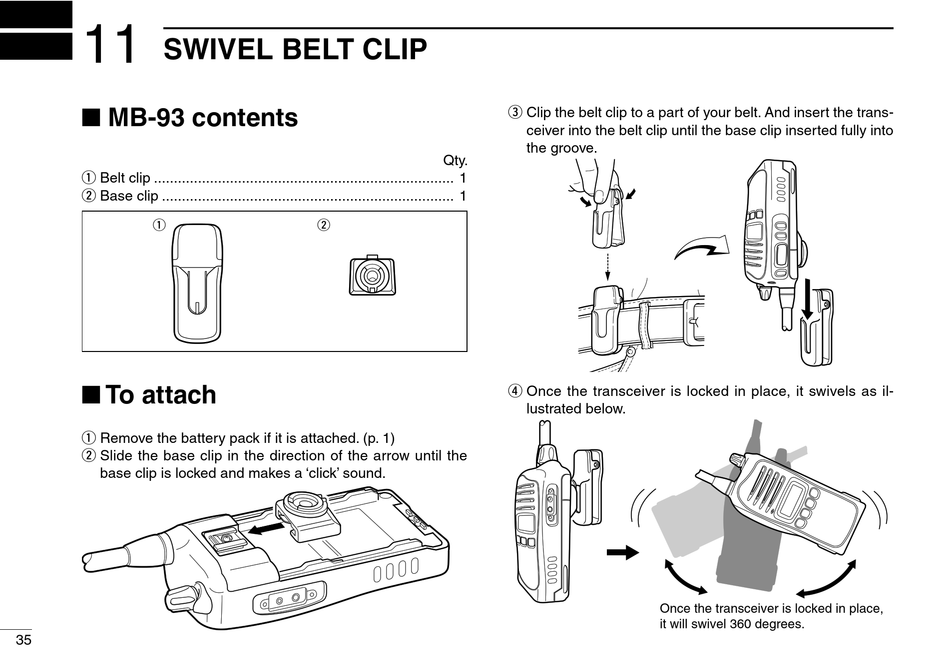

SWIVEL BELT CLIP

n MB-93 contents
q Belt clip ........................................................................... 1
w Base clip ......................................................................... 1
q
n To attach
q Remove the battery pack if it is attached. (p. 1)
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a 'click' sound.
35
Qty.
w
e Clip the belt clip to a part of your belt. And insert the trans-
ceiver into the belt clip until the base clip inserted fully into
the groove.
r Once the transceiver is locked in place, it swivels as il-
lustrated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
