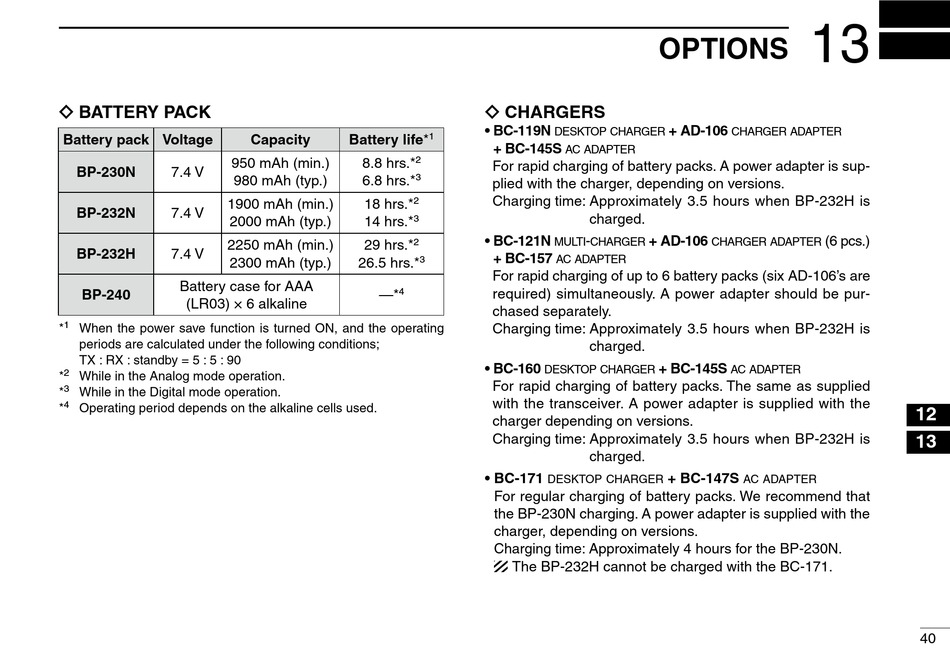

ï BATTERY PACK
Battery pack Voltage
950 mAh (min.)
BP-230N 7.4 V
980 mAh (typ.)
1900 mAh (min.)
BP-232N 7.4 V
2000 mAh (typ.)
2250 mAh (min.)
BP-232H 7.4 V
2300 mAh (typ.)
Battery case for AAA
BP-240
(LR03) × 6 alkaline
1
* When the power save function is turned ON, and the operating
periods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
2
* While in the Analog mode operation.
3
* While in the Digital mode operation.
4
* Operating period depends on the alkaline cells used.
Capacity Battery life* 1
8.8 hrs.* 2
6.8 hrs.* 3
18 hrs.* 2
14 hrs.* 3
29 hrs.* 2
26.5 hrs.* 3
—* 4

OPTIONS

ï CHARGERS
• BC-119N
desktop charger
+ BC-145S
ac adapter
For rapid charging of battery packs. A power adapter is sup-
plied with the charger, depending on versions.
Charging time: Approximately 3.5 hours when BP-232H is
charged.
• BC-121N - + AD-106
multi charger
+ BC-157
ac adapter
For rapid charging of up to 6 battery packs (six AD-106's are
required) simultaneously. A power adapter should be pur-
chased separately.
Charging time: Approximately 3.5 hours when BP-232H is
charged.
• BC-160 + BC-145S
desktop charger
For rapid charging of battery packs. The same as supplied
with the transceiver. A power adapter is supplied with the
charger depending on versions.
Charging time: Approximately 3.5 hours when BP-232H is
charged.
• BC-171
desktop charger
For regular charging of battery packs. We recommend that
the BP-230N charging. A power adapter is supplied with the
charger, depending on versions.
Charging time: Approximately 4 hours for the BP-230N.
The BP-232H cannot be charged with the BC-171.
13
+ AD-106
charger adapter
(6 pcs.)
charger adapter
ac adapter
+ BC-147S
ac adapter
12
13
40
