9
BATTERY CHARGING
n Battery chargers (Continued)

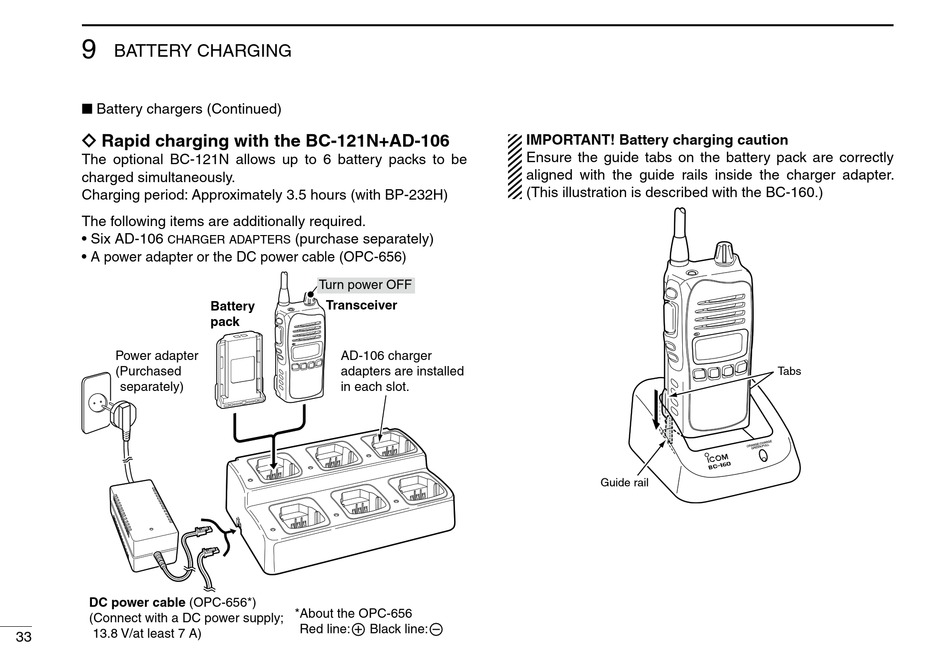

ï Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously.
Charging period: Approximately 3.5 hours (with BP-232H)
The following items are additionally required.
• Six AD-106
charger adapters
• A power adapter or the DC power cable (OPC-656)
Power adapter
(Purchased
separately)
DC power cable (OPC-656*)
(Connect with a DC power supply;
13.8 V/at least 7 A)
33
(purchase separately)
Turn power OFF
Transceiver
Battery
pack
AD-106 charger
adapters are installed
in each slot.
*About the OPC-656
Red line: Black line:
IMPORTANT! Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is described with the BC-160.)
Guide rail
Tabs
