3

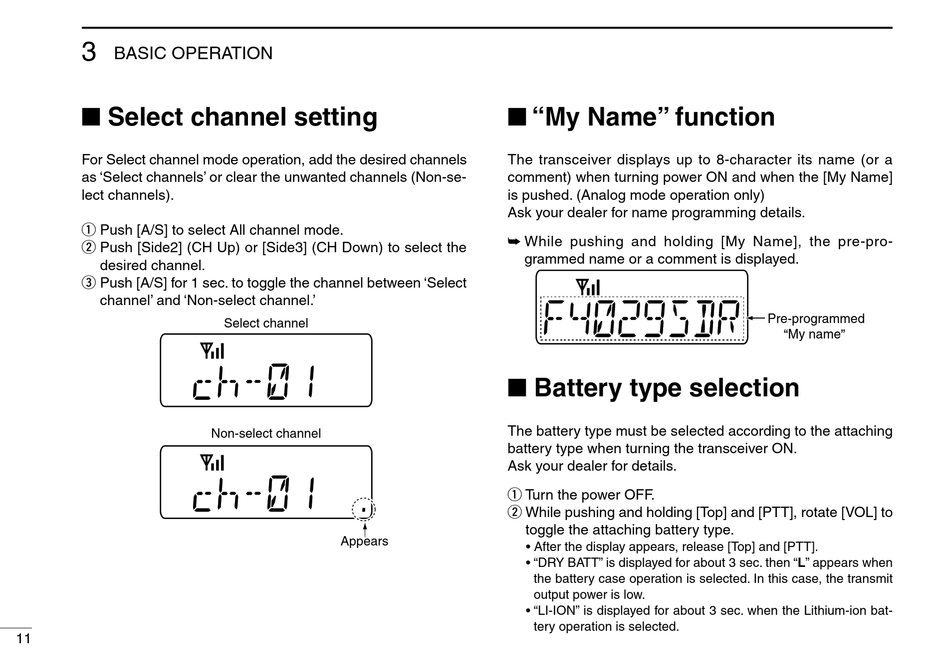

BASIC OPERATION
n Select channel setting
For Select channel mode operation, add the desired channels
as 'Select channels' or clear the unwanted channels (Non-se-
lect channels).
q Push [A/S] to select All channel mode.
w Push [Side2] (CH Up) or [Side3] (CH Down) to select the
desired channel.
e Push [A/S] for 1 sec. to toggle the channel between 'Select
channel' and 'Non-select channel.'
11
Select channel
Non-select channel
Appears

n "My Name" function

The transceiver displays up to 8-character its name (or a
comment) when turning power ON and when the [My Name]
is pushed. (Analog mode operation only)
Ask your dealer for name programming details.
➥ While pushing and holding [My Name], the pre-pro-
grammed name or a comment is displayed.
n Battery type selection
The battery type must be selected according to the attaching
battery type when turning the transceiver ON.
Ask your dealer for details.
q Turn the power OFF.
w While pushing and holding [Top] and [PTT], rotate [VOL] to
toggle the attaching battery type.
• After the display appears, release [Top] and [PTT].
• "DRY BATT" is displayed for about 3 sec. then "L" appears when
the battery case operation is selected. In this case, the transmit
output power is low.
• "LI-ION" is displayed for about 3 sec. when the Lithium-ion bat-
tery operation is selected.
Pre-programmed
My name
