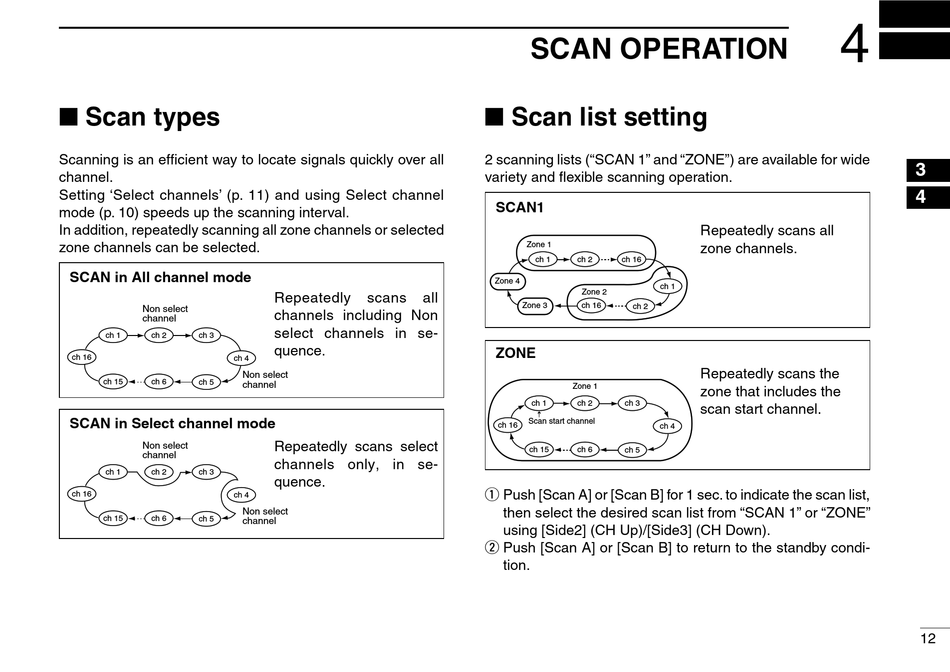

n Scan types
Scanning is an efficient way to locate signals quickly over all
channel.
Setting 'Select channels' (p. 11) and using Select channel
mode (p. 10) speeds up the scanning interval.
In addition, repeatedly scanning all zone channels or selected
zone channels can be selected.
SCAN in All channel mode
Non select
channel
ch 1 ch 2 ch 3
ch 16
ch 4
ch 15 ch 6
ch 5
SCAN in Select channel mode
Non select
channel
ch 1 ch 2 ch 3
ch 16
ch 4
ch 15 ch 6
ch 5
Repeatedly scans
channels including Non
select channels in se-
quence.
Non select
channel
Repeatedly scans select
channels only, in se-
quence.
Non select
channel

SCAN OPERATION

n Scan list setting
2 scanning lists ("SCAN 1" and "ZONE") are available for wide
variety and flexible scanning operation.
SCAN1
Zone 1
ch 1 ch 2
Zone 4
Zone 2
all
Zone 3 ch 16
ZONE
Zone 1
ch 1 ch 2
Scan start channel
ch 16
ch 15 ch 6
q Push [Scan A] or [Scan B] for 1 sec. to indicate the scan list,
then select the desired scan list from "SCAN 1" or "ZONE"
using [Side2] (CH Up)/[Side3] (CH Down).
w Push [Scan A] or [Scan B] to return to the standby condi-
tion.
Repeatedly scans all
zone channels.
ch 16
ch 1
ch 2
Repeatedly scans the
zone that includes the
ch 3
scan start channel.
ch 4
ch 5
