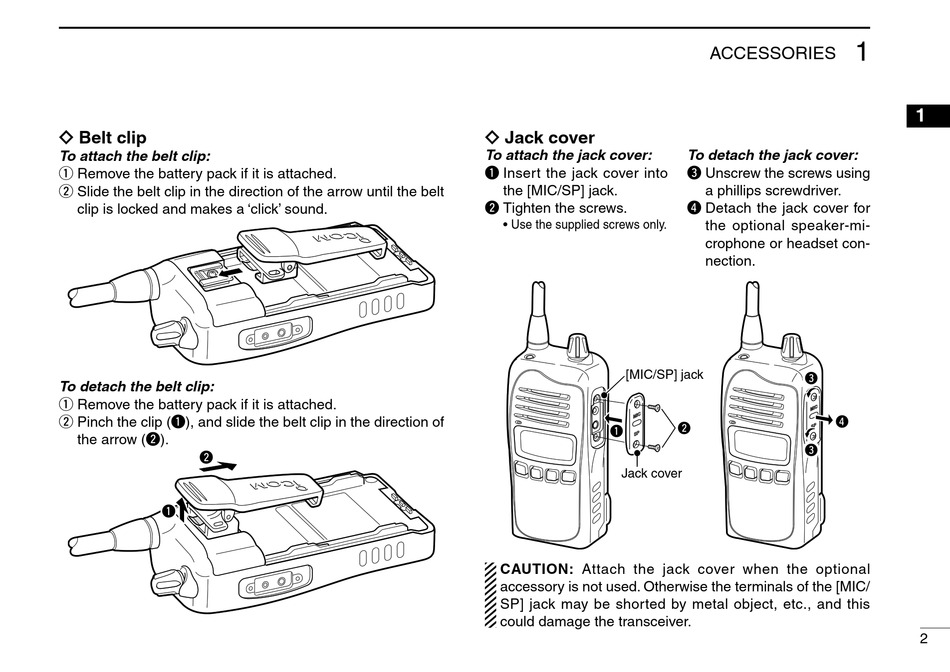

ï Belt clip
To attach the belt clip:
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q Remove the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q
ï Jack cover
To attach the jack cover:
q Insert the jack cover into
the [MIC/SP] jack.
w Tighten the screws.
• Use the supplied screws only.
[MIC/SP] jack
q

Jack cover

CAUTION: Attach the jack cover when the optional
accessory is not used. Otherwise the terminals of the [MIC/
SP] jack may be shorted by metal object, etc., and this
could damage the transceiver.
1
ACCESSORIES
To detach the jack cover:
e Unscrew the screws using
a phillips screwdriver.
r Detach the jack cover for
the optional speaker-mi-
crophone or headset con-
nection.
e
r
w
e
