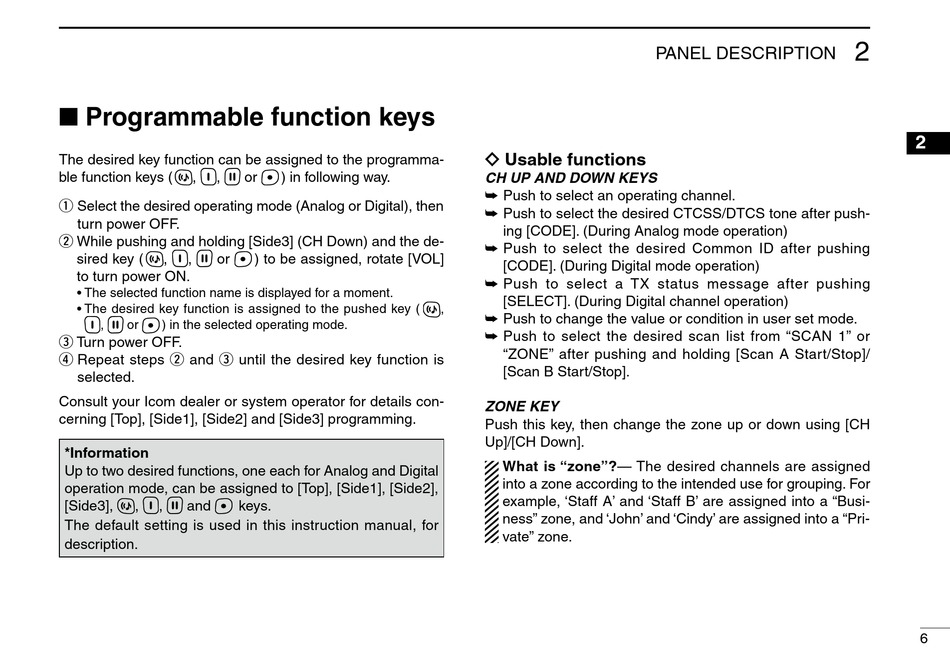

n Programmable function keys
The desired key function can be assigned to the programma-
ble function keys ( , ,
q Select the desired operating mode (Analog or Digital), then
turn power OFF.
w While pushing and holding [Side3] (CH Down) and the de-
sired key ( , , or
to turn power ON.
• The selected function name is displayed for a moment.
• The desired key function is assigned to the pushed key (
, or ) in the selected operating mode.
e Turn power OFF.
r Repeat steps w and e until the desired key function is
selected.
Consult your Icom dealer or system operator for details con-
cerning [Top], [Side1], [Side2] and [Side3] programming.
*Information
Up to two desired functions, one each for Analog and Digital
operation mode, can be assigned to [Top], [Side1], [Side2],
[Side3], , , and
The default setting is used in this instruction manual, for
description.
or ) in following way.
) to be assigned, rotate [VOL]
keys.
ï Usable functions
CH UP AND DOWN KEYS
➥ Push to select an operating channel.
➥ Push to select the desired CTCSS/DTCS tone after push-
ing [CODE]. (During Analog mode operation)
➥ Push to select the desired Common ID after pushing
[CODE]. (During Digital mode operation)
➥ Push to select a TX status message after pushing
[SELECT]. (During Digital channel operation)
,
➥ Push to change the value or condition in user set mode.
➥ Push to select the desired scan list from "SCAN 1" or
"ZONE" after pushing and holding [Scan A Start/Stop]/
[Scan B Start/Stop].
ZONE KEY
Push this key, then change the zone up or down using [CH
Up]/[CH Down].
What is "zone"?— The desired channels are assigned
into a zone according to the intended use for grouping. For
example, 'Staff A' and 'Staff B' are assigned into a "Busi-
ness" zone, and 'John' and 'Cindy' are assigned into a "Pri-
vate" zone.
PANEL DESCRIPTION
2
2
6
