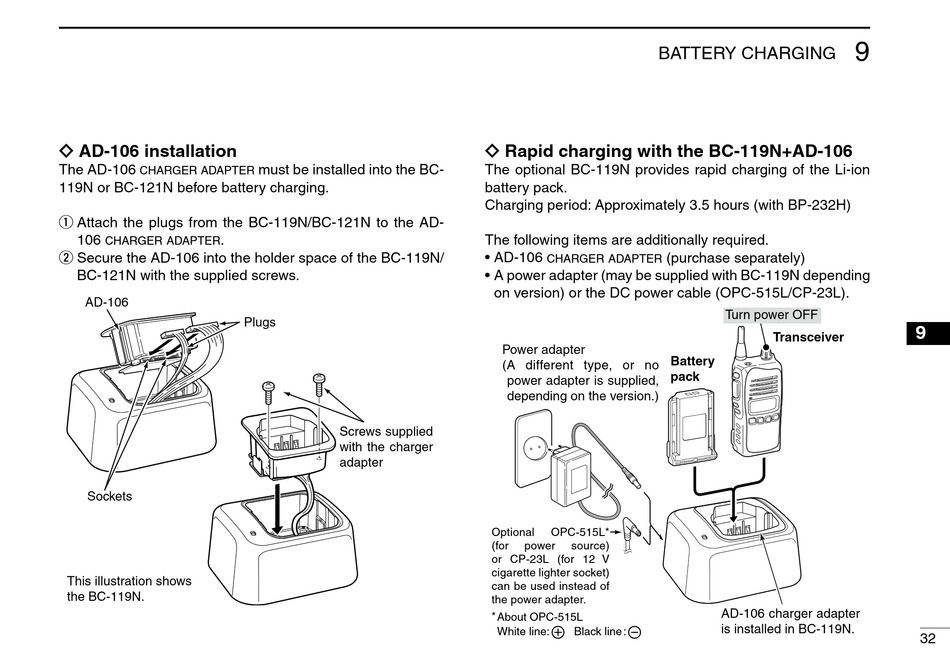

ï AD-106 installation
The AD-106
charger adapter
119N or BC-121N before battery charging.
q Attach the plugs from the BC-119N/BC-121N to the AD-
106 .
charger adapter
w Secure the AD-106 into the holder space of the BC-119N/
BC-121N with the supplied screws.
AD-106
Sockets
This illustration shows
the BC-119N.
must be installed into the BC-
Plugs
Screws supplied
with the charger
adapter
BATTERY CHARGING
ï Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack.
Charging period: Approximately 3.5 hours (with BP-232H)
The following items are additionally required.
• AD-106
charger adapter
• A power adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-23L).
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Optional OPC-515L*
(for power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
*
About OPC-515L
White line: Black line :
(purchase separately)
Turn power OFF
Transceiver
Battery
pack
AD-106 charger adapter
is installed in BC-119N.
