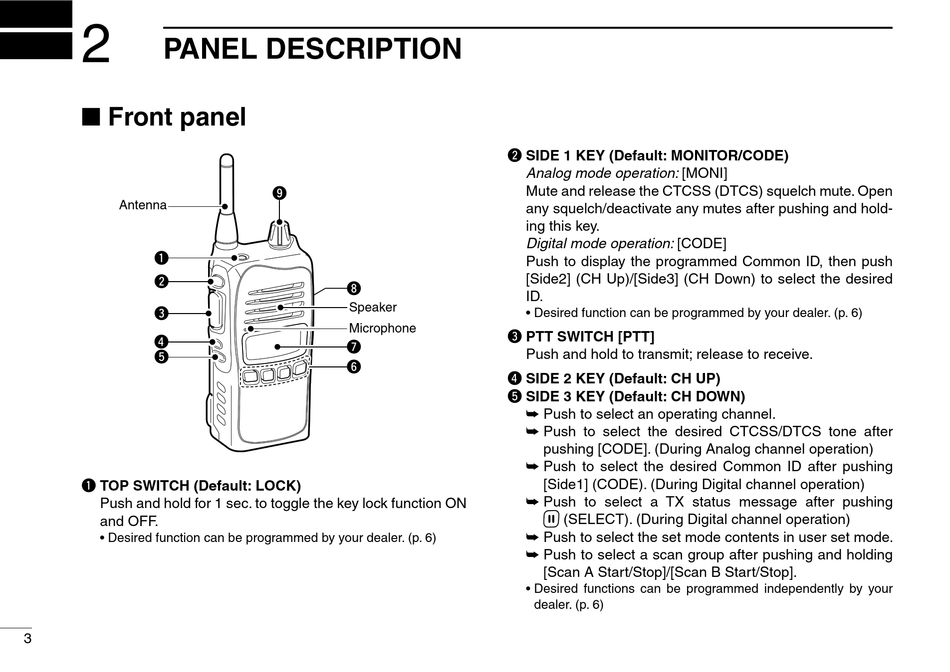

PANEL DESCRIPTION

n Front panel
Antenna
q
w
e
r
t
q TOP SWITCH (Default: LOCK)
Push and hold for 1 sec. to toggle the key lock function ON
and OFF.
• Desired function can be programmed by your dealer. (p. 6)
3
o
i
Speaker
Microphone
u
y
w SIDE 1 KEY (Default: MONITOR/CODE)
Analog mode operation: [MONI]
Mute and release the CTCSS (DTCS) squelch mute. Open
any squelch/deactivate any mutes after pushing and hold-
ing this key.
Digital mode operation: [CODE]
Push to display the programmed Common ID, then push
[Side2] (CH Up)/[Side3] (CH Down) to select the desired
ID.
• Desired function can be programmed by your dealer. (p. 6)
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
r SIDE 2 KEY (Default: CH UP)
t SIDE 3 KEY (Default: CH DOWN)
➥ Push to select an operating channel.
➥ Push to select the desired CTCSS/DTCS tone after
pushing [CODE]. (During Analog channel operation)
➥ Push to select the desired Common ID after pushing
[Side1] (CODE). (During Digital channel operation)
➥ Push to select a TX status message after pushing
(SELECT). (During Digital channel operation)
➥ Push to select the set mode contents in user set mode.
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop].
• Desired functions can be programmed independently by your
dealer. (p. 6)
