Specifications - Icom iF4029SDR Instruction Manual

12

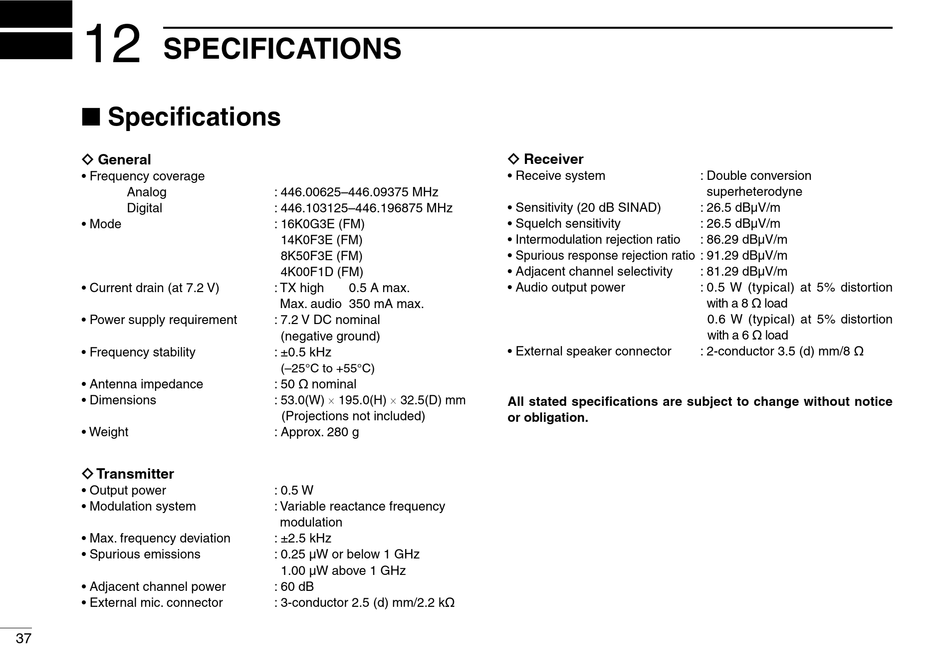

SPECIFICATIONS

n Specifications
ï General
• Frequency coverage
Analog
Digital
• Mode
• Current drain (at 7.2 V)
• Power supply requirement
• Frequency stability
• Antenna impedance
• Dimensions
• Weight
ï Transmitter
• Output power
• Modulation system
• Max. frequency deviation
• Spurious emissions
• Adjacent channel power
• External mic. connector
37
: 446.00625–446.09375 MHz
: 446.103125–446.196875 MHz
: 16K0G3E (FM)
14K0F3E (FM)
8K50F3E (FM)
4K00F1D (FM)
: TX high 0.5 A max.
Max. audio 350 mA max.
: 7.2 V DC nominal
(negative ground)
: ±0.5 kHz
(–25°C to +55°C)
: 50 ø nominal
: 53.0(W) × 195.0(H) × 32.5(D) mm
(Projections not included)
: Approx. 280 g
: 0.5 W
: Variable reactance frequency
modulation
: ±2.5 kHz
: 0.25 µW or below 1 GHz
1.00 µW above 1 GHz
: 60 dB
: 3-conductor 2.5 (d) mm/2.2 kø
ï Receiver
• Receive system
• Sensitivity (20 dB SINAD)
• Squelch sensitivity
• Intermodulation rejection ratio
• Spurious response rejection ratio : 91.29 dBµV/m
• Adjacent channel selectivity
• Audio output power
• External speaker connector
All stated specifications are subject to change without notice
or obligation.
: Double conversion
superheterodyne
: 26.5 dBµV/m
: 26.5 dBµV/m
: 86.29 dBµV/m
: 81.29 dBµV/m
: 0.5 W (typical) at 5% distortion
with a 8 ø load
0.6 W (typical) at 5% distortion
with a 6 ø load
: 2-conductor 3.5 (d) mm/8 ø
