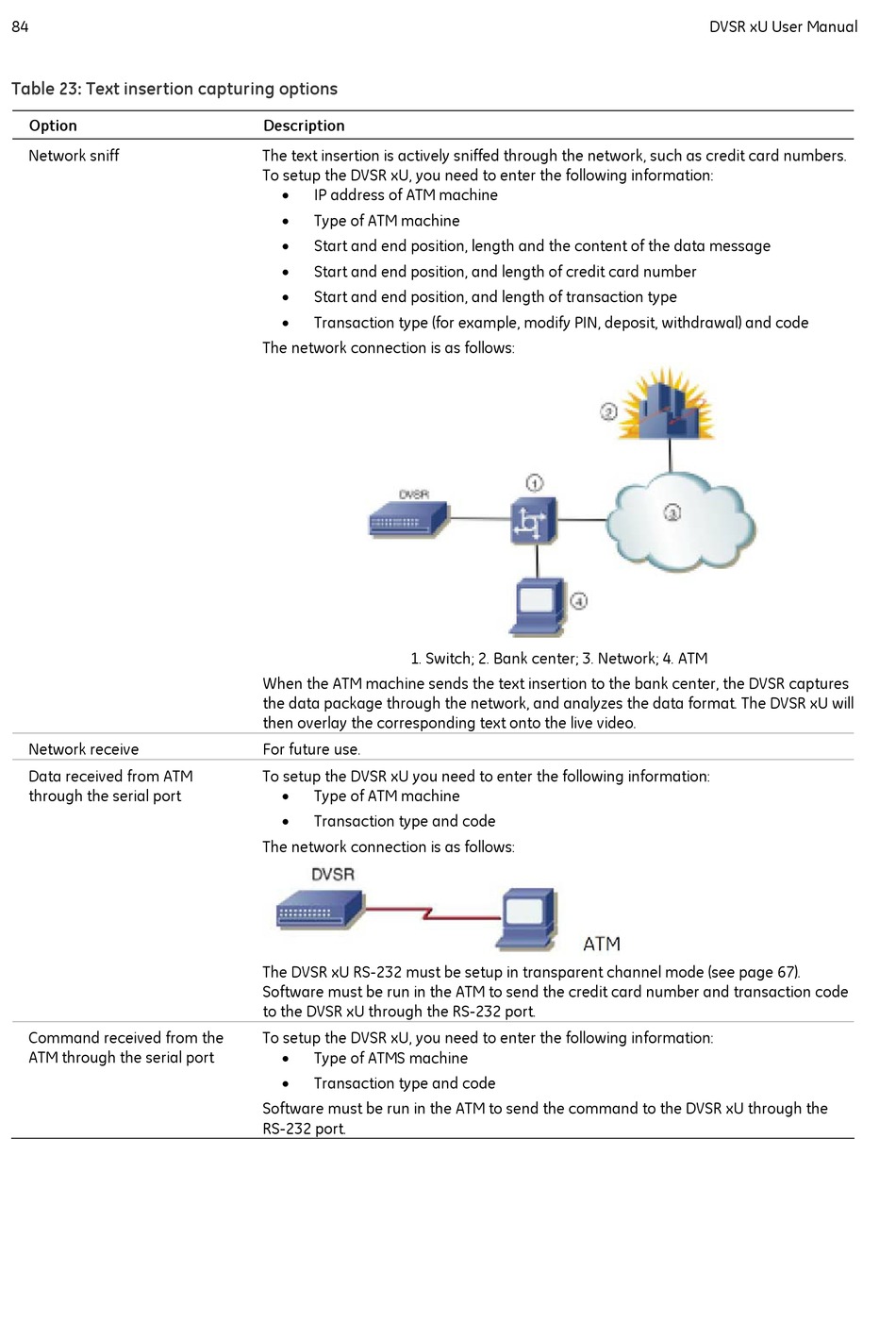

Table 23: Text insertion capturing options
Option
Network sniff
Network receive
Data received from ATM
through the serial port
Command received from the
ATM through the serial port
Description
The text insertion is actively sniffed through the network, such as credit card numbers.
To setup the DVSR xU, you need to enter the following information:

IP address of ATM machine

Type of ATM machine

Start and end position, length and the content of the data message

Start and end position, and length of credit card number

Start and end position, and length of transaction type

Transaction type (for example, modify PIN, deposit, withdrawal) and code
The network connection is as follows:
1. Switch; 2. Bank center; 3. Network; 4. ATM
When the ATM machine sends the text insertion to the bank center, the DVSR captures
the data package through the network, and analyzes the data format. The DVSR xU will
then overlay the corresponding text onto the live video.
For future use.
To setup the DVSR xU you need to enter the following information:

Type of ATM machine

Transaction type and code
The network connection is as follows:
The DVSR xU RS-232 must be setup in transparent channel mode (see page 67).
Software must be run in the ATM to send the credit card number and transaction code
to the DVSR xU through the RS-232 port.
To setup the DVSR xU, you need to enter the following information:

Type of ATMS machine

Transaction type and code
Software must be run in the ATM to send the command to the DVSR xU through the
RS-232 port.
