5.2.1 IR Control In- Transmitter Only

5.2.1.1. Below Serial Number 715212090001 (3.5mm {1/8"} Stereo)

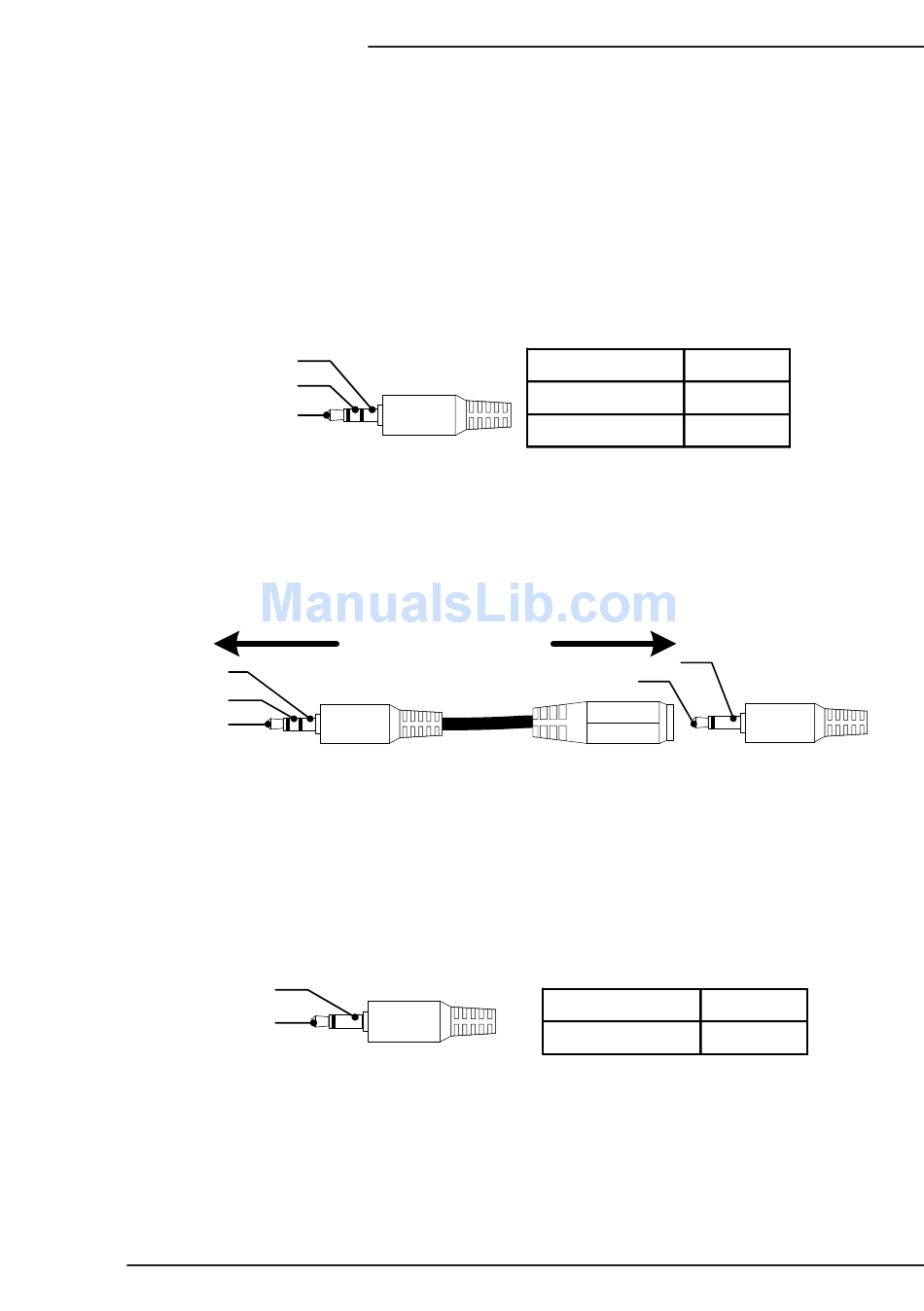

The most common use of the IR Receiver port is to send an IR signal from a
powered IR Receiver to an IR Flasher connected to the Receiver. This connection
includes +9V DC power for an IR Receiver. A 3.5mm {1/8"} Stereo Cable is used
to connect directly to an IR Receiver, DO NOT connect a mono cable to this
connection as damage may occur.
9V DC (Sleeve)
IR Signal (Tip)
If the system requires connection to an Automation System or Connecting Block
to send IR to the Receiver, the included IR Adapter Cable between the Automation
System or Connecting Block output and the IR Receiver input must be used.
9V DC (Sleeve)
GND (Ring)
IR Signal (Tip)
5.2.1.2. Serial Number 715212090001 or Above (3.5mm {1/8"} Mono)
The most common use of the IR Receiver port is to send an IR signal from
a powered IR Receiver to an IR Flasher connected to the Transmitter. This
connection includes +9V DC power for an IR Receiver. A 3.5mm {1/8"} Stereo
Cable is used to connect directly to an IR Receiver, DO NOT connect a mono
cable to this connection as damage may occur.
GND (Sleeve)
IR Signal (Tip)
If the system requires a powered IR Receiver at the Transmitter, a powered IR Block
(ex: SnapAV KIT-IR-RPTR-1X4) will be needed between the IR Receiver and the
Transmitters IR Receiver In.
pg.10
GND (Ring)
To IR Receiver In
IR Signal
GND (Ground)
+9V DC
To IR Control System
or Connecting Block
GND (Sleeve)
IR Signal (Tip)
IR Signal
GND (Ground)
