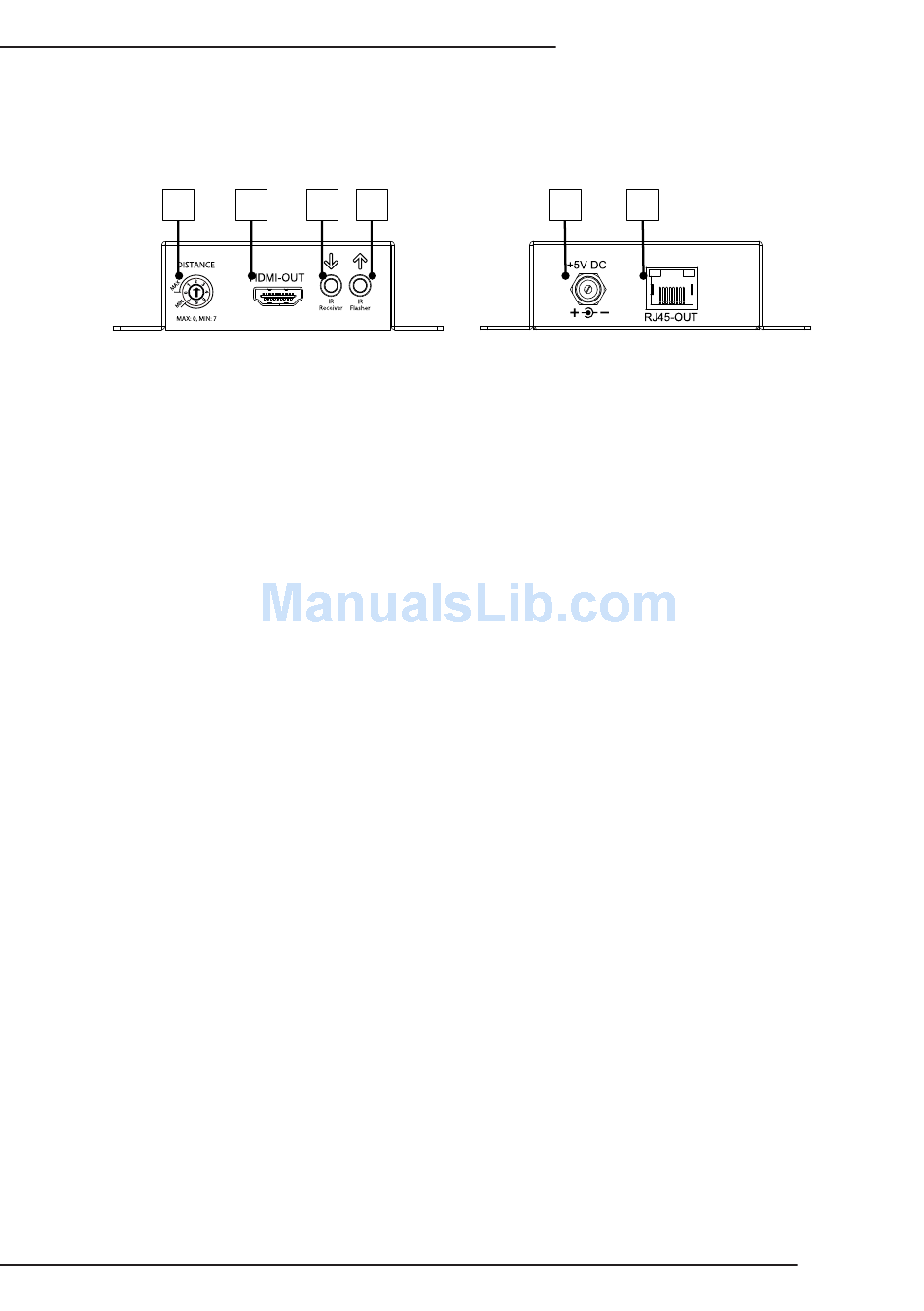

4.2. Receiver Connections and Controls

1
1. Distance Control
8 position rotary switch that provides equalization control to prevent over or under
loading the HD signal. See Distance Calibration for more details.
2. HDMI Out to Display (HDMI)
Connect an HDMI cable to the display at the remote location.
3. IR Receiver In (3.5mm {1/8"} Stereo)
Connect an IR Receiver to send IR signals to the Transmitter from the remote
location. See Section 5.2.2 IR Receiver In– Receiver Only (3.5mm {1/8"} Stereo) for
details.
4. IR Flasher Out (3.5mm {1/8"} Mono)
Connect an IR flasher to send IR control signals from Automation System connected
to the Transmitter to a TV or other device. See Section 5.2.3 IR Flasher Out –
Transmitter and Receiver (3.5mm {1/8"} Mono) for details.
5. Latch-Locking Power Jack
Connect to the included 5V DC 4A Power Supply.
6. HD Link (RJ45)
Connect to RJ45 output of the Transmitter; this connection follows standard TIA/
EIA-568B. While 568A can be used, its use will degrade performance due to the
nature of the signals being transmitted.
