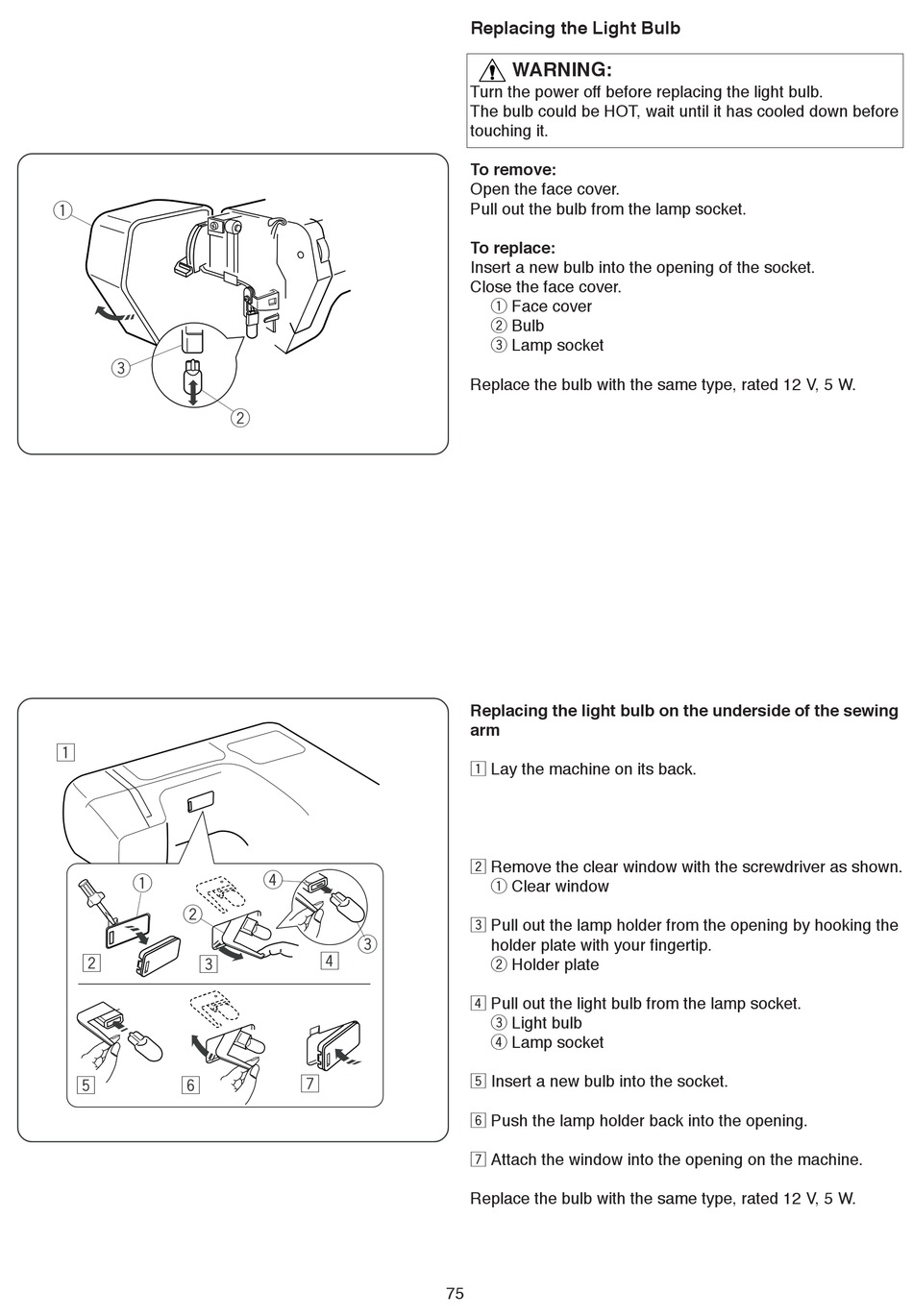

Replacing the Light Bulb

WARNING:
Turn the power off before replacing the light bulb.
The bulb could be HOT, wait until it has cooled down before
touching it.
To remove:
Open the face cover.
Pull out the bulb from the lamp socket.
To replace:
Insert a new bulb into the opening of the socket.
Close the face cover.
q Face cover
w Bulb
e Lamp socket
Replace the bulb with the same type, rated 12 V, 5 W.
Replacing the light bulb on the underside of the sewing
arm
z Lay the machine on its back.
x Remove the clear window with the screwdriver as shown.
q Clear window
c Pull out the lamp holder from the opening by hooking the
holder plate with your fingertip.
w Holder plate
v Pull out the light bulb from the lamp socket.
e Light bulb
r Lamp socket
b Insert a new bulb into the socket.
n Push the lamp holder back into the opening.
m Attach the window into the opening on the machine.
Replace the bulb with the same type, rated 12 V, 5 W.
